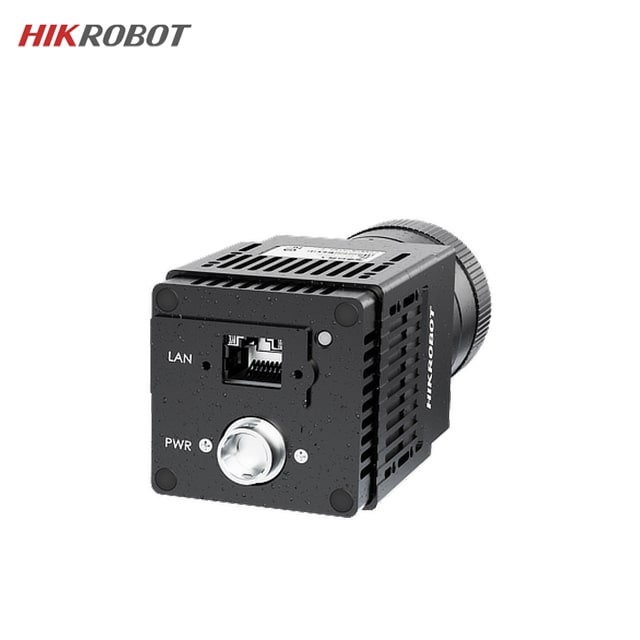

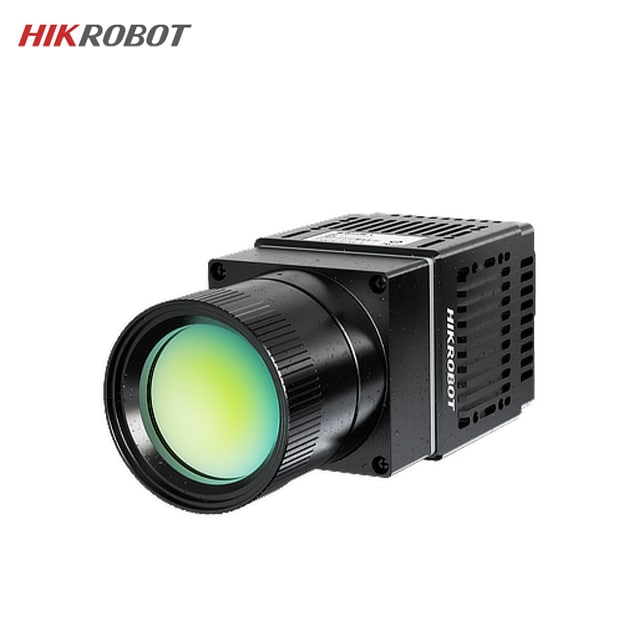

HIKROBOTMV-CI003-GL-T6 50 fps 640×512 0.3MP Lens focal length 6.3mm Temperature measuring long wave infrared industrial camera

Product details

Model
model
MV-CI003-GL-T6
name
Gigabit Network Long Wave Infrared Camera, 640 × 512, temperature measuring type, lens focal length 6.3mm



Performance
sensor type
Vanadium oxide non cooled detector
pixel size
17 µm
resolution ratio
640 × 512
Maximum frame rate
50 fps @640 × 512
Thermal sensitivity
<50 mk（F1.0，30℃）
Pixel format
Mono 16
Float 32
YUV422（YUYV）Packed，YUV 422 Packed
Pseudo color mode
White Hot、Black Hot、Fusion 1、Rainbow、Fusion 2、Ironbow 1、Ironbow 2、Sepia、Color 1、Color 2、Ice Fire、Rain、Green Hot、Red Hot
image processing
Supports brightness, sharpness, and gamma correction
focal length
6.3 mm
Field of view angle
88.5° × 73.2°
spatial resolution
2.70
aperture
1.0
Thermal imaging close range
0.6 m
Measuring range
-20~150 ° C or 0~550 ° C
Temperature measurement accuracy
± 2 ° C or ± 2% of reading
The farthest distance for temperature measurement
5 m (@ target size 0.1 × 0.1 ㎡
Electrical characteristics
data interface
GigE
Number  I/O
12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), and 1
bidirectional configurable non isolated I/O (Line2)
power supply
9 ~ 24 VDC
Typical power consumption
2.8 W@12 VDC
Structure
Installation method
Supports four sided installation

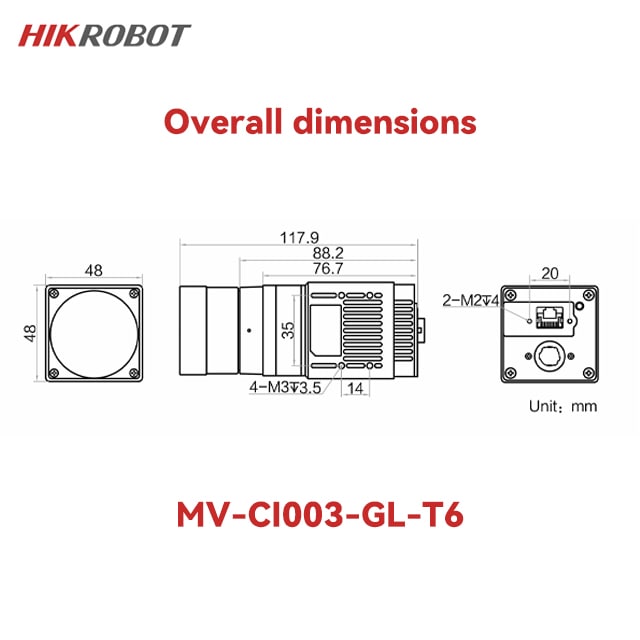

Overall dimensions
48 mm x 48 mm × 117.9mm
weight
About 370g
IP protection level
IP40 (with power interface and network port protected)
temperature
Working temperature -20~60 ℃, storage temperature -30~70 ℃
humidity
20%~80% RH non condensing
General specifications
software
MVS
operating system
Windows XP/7/10 32/64bits，Linux 32/64bits as well as MacOS 64bits
Protocol/Standard
GigE Vision 2.0，GenICam
authentication
CE，RoHS，KC
