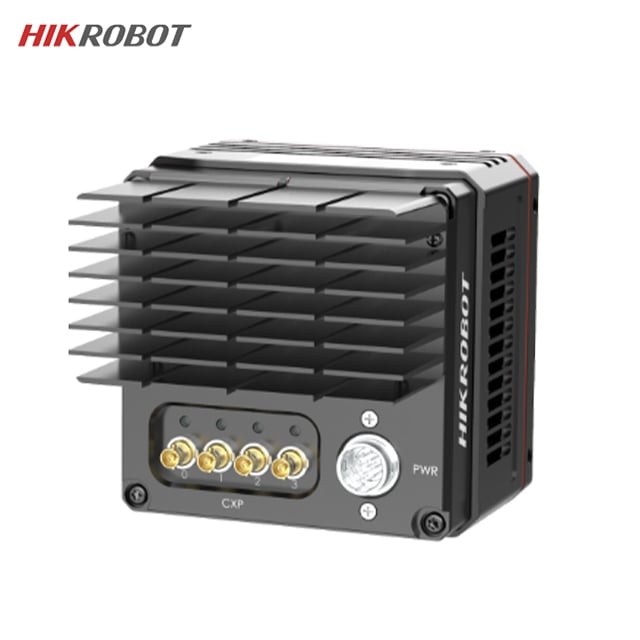

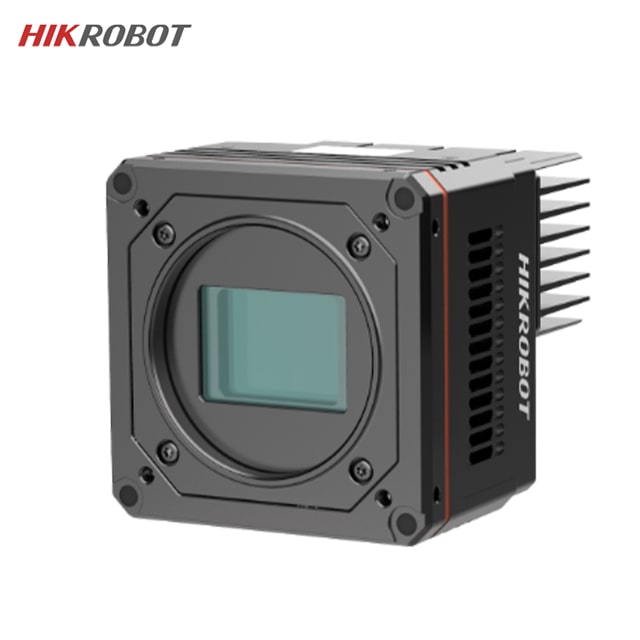

21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Mono
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
222 fps @5120 × 4096 Mono 8
|
|
|
|
|
|
|
|
|
Supports 1.0 ×, 2.0 ×, 4.0 ×
|
|
|
|
|
|
Off/Once/Continuous exposure mode
|
|
|
|
|
|
|
|
|
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
Supports horizontal and vertical reverse image output
|
Electrical Characteristics
|
|
|
|
|
12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1),
bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
|
|
|
12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
|
Typical power consumption
|
|
|
|
|

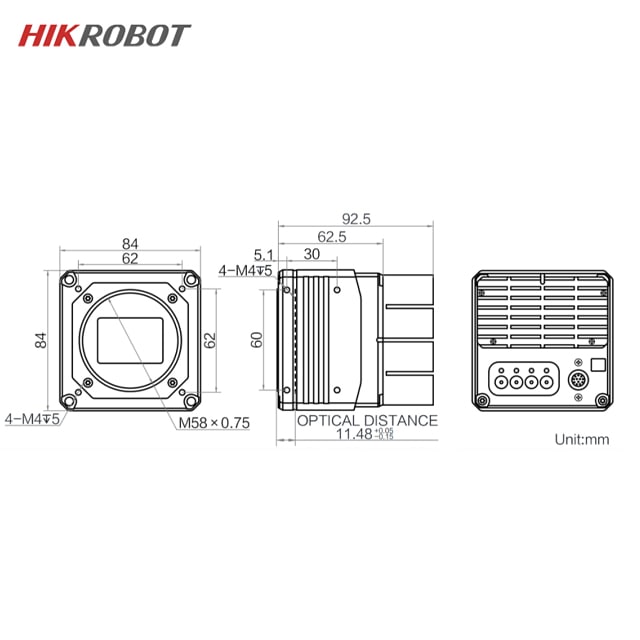

M58*0.75, optical back focal length 11.48 mm (0.5″)
|
|
|
84 mm × 84 mm × 62.5 mm (3.3″ × 3.3″ × 2.5″)
|
|
|
|
|
|
IP40 (under proper lens installation and wiring)
|
|
|
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
|
|
|
20% ~ 95%RH without condensation
|
|
|
|
MVS or frame grabber software meeting with CoaXPress Protocol
|
|
|
|
|
|
|
|
|
|
