Model

Model Number

MV-IDB003X-06R

Name

0.4MP Red light fast Ethernet interface very small code reader

Performance

Bar code categories

1D code: Code 39，Code 93，Code 128，ITF14， ITF25，EAN8，UPCA，UPCE， EAN13，CodaBar, etc.

2D code: QR Code, Data Matrix, etc.

Maximum processing frame rate

60 fps

Max. reading speed

41 codes/second

Sensor type

CMOS, global Shutter

Image element size

6.9 µm × 6.9 µm

Target surface size

1/2.9”

Resolution

704 × 540

Exposure time

16 μs ~ 1 sec

Gain

0 ~ 15 dB

Black and white/color

black and white

Communication protocols

SmartSDK，TCP Client，Serial，FTP，TCP Server， Profinet，MELSEC，Ethernet/IP，ModBus，UDP，Fins，SLMP

Electrical characteristics

Data interface

Fast Ethernet（100 Mbit/s）

Digital I/O

17-pin M12 interface provides power and I/O: includes 4 non isolated bidirectional I/O (default configuration is 2 inputs and 2
outputs), 1 RS-232, and supports triggering devices through side buttons

Power supply

12 ~ 24 VDC

Maximum power consumption

10.6 W@24 VDC

Structure

Focal length

6.72 mm

Lens mount

M10-Mount , with manual focus adjustment

Work distance

40 ~ 120 mm

Ambient light

0 ~ 50000 lux

Light source

Red

Sights

Green LED

Indicator light

Power indicator light PWR, network indicator light LNK, status indicator light STS

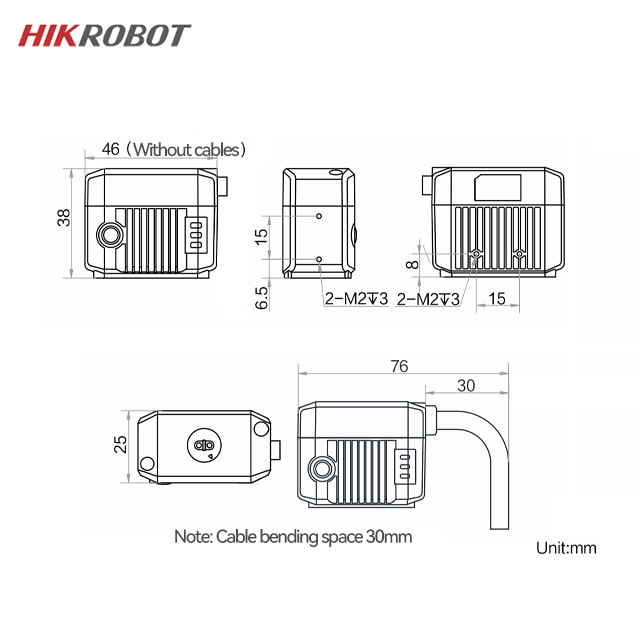

Form factor

46 mm × 38 mm × 25 mm

Weight

Approx. 160 g

IP Protection Rating

IP65

Temperature

Working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃

Humidity

20% ~ 95%RH non-condensing

General Specifications

Software

IDMVS

Certification

CE，RoHS，KC
