HIKROBOT MV-ID3004PM-06M/12M/15M-WBN 60fps 0.4MP 1/2.9″ PRO Series Compact Industrial Code Readers

Product details

Model
Model Number
MV-ID3004PM-06M-WBN
MV-ID3004PM-12M-WBN
MV-ID3004PM-15M-WBN
Name
6mm/12mm/14.8mm mechanical focus lens 400k pixel PRO series compact industrial code reader
Performance
Bar code categories
1D code: Code 39, Code 93, Code 128, CodaBar, EAN, ITF25, MATRIX25, MSI, CODE11, INDUSTRIAL25, CHINAPOST, etc.
2D codes: QR, DM, etc.
Stacking code: PDF417
Maximum processing frame rate
60 fps
Max. reading speed
87 yards per second
Sensor type
CMOS, global Shutter
Image element size
6.9 µm×6.9 µm
Target surface size
1/2.9”
Resolution
704×540
Exposure time
16 μs ~ 1 sec
Gain
0 ~ 40 dB
Black and white/color
Mono
Communication protocols
SmartSDK，TCP Client，Serial，FTP，TCP Server，Profinet，MELSEC，Ethernet/IP，ModBus，Fins，SLMP
Electrical characteristics
Data interface
Fast Ethernet（100Mbit/s）
Digital I/O
17-pin M12 interface provides power and I/O: includes 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut
0/1/2), 1 RS-232 Supports device triggering via top button
Power supply
24 VDC
Maximum power consumption
20 W@24 VDC (with fill light enabled)
Structure
Focal length
6 mm
12 mm
14.8 mm
Lens interface
M12-Mount, manual focus
Lens hoods
Transparent lens hood, optional polarizing lens hood
Light source
Spot white, optional spot red / blue / infrared, wide angle white / blue / red
Indicator lights
Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG

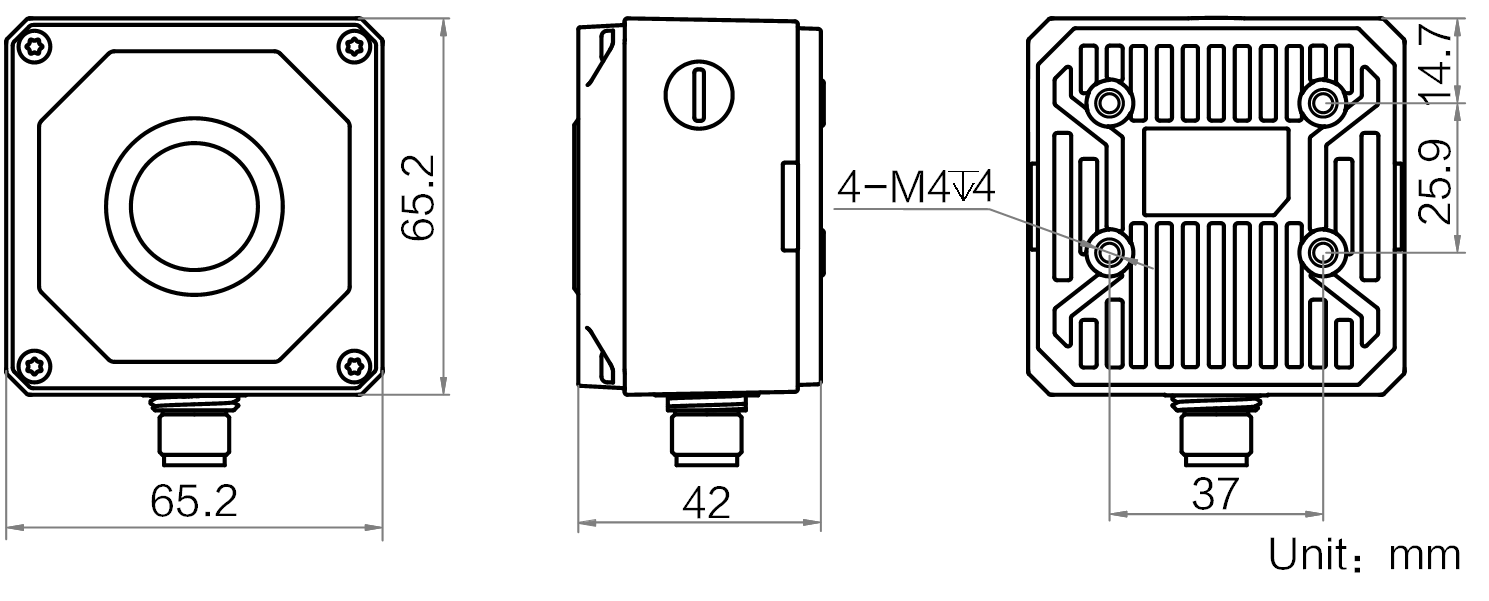

Form factor
65.2 mm×65.2 mm×42 mm
Weight
Approx 250 g
IP Protection Rating
IP67 (with proper lens waterproof cover installed correctly)
Temperature
Working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
Humidity
20% ~ 95%RH non-condensing
General Specifications
Software
IDMVS
Certification
CE，FCC，RoHS，KC
