65 million pixel 10 Gigabit area scan camera, GMAX3265, black and white, F port, with fan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
support automatic exposure, manual exposure, one-key exposure mode
|
|
|
|
|
|
Mono 8/10/10Packed/12/12Packed
|
|
|
Support 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
|
|
|
1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 supported
|
|
|
support horizontal mirroring, vertical mirroring output
|
Electrical Characteristics
|
|
|
|
|
12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2) , 1 channel RS-232
|
|
|
|
Typical power consumption
|
|
|
|
|

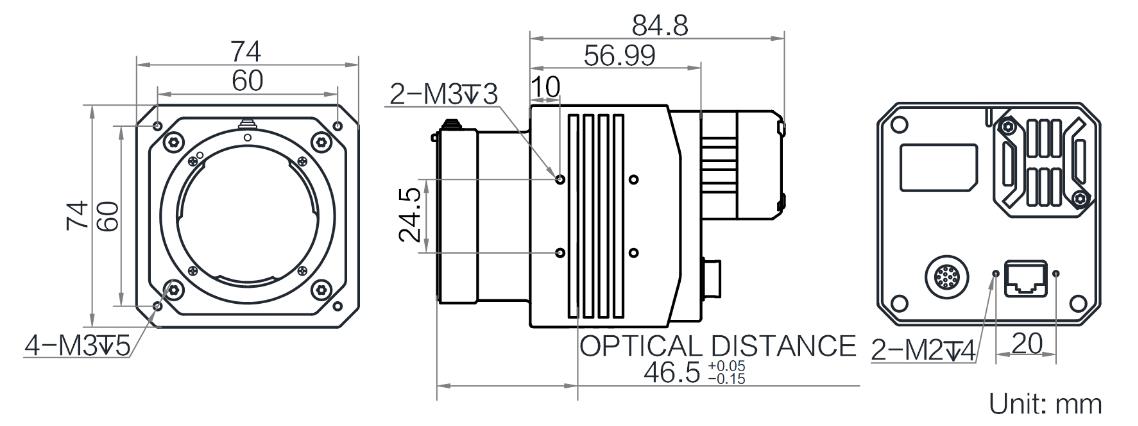

F mount, flange back focus 46.5 mm
|
|
|
|
|
|
|
|
|
IP40 (when the lens and cable are installed correctly)
|
|
|
working temperature 0℃~50℃, storage temperature -30℃~70℃
|
|
|
20% ~ 95%RH without condensation
|
|
|
|
MVS or 3rd party software supporting GigE Vision protocol
|
|
|
Windows XP/7/10 32/64bits
|
|
|
GigE Vision V2.0, GenICam
|
|
|
|
