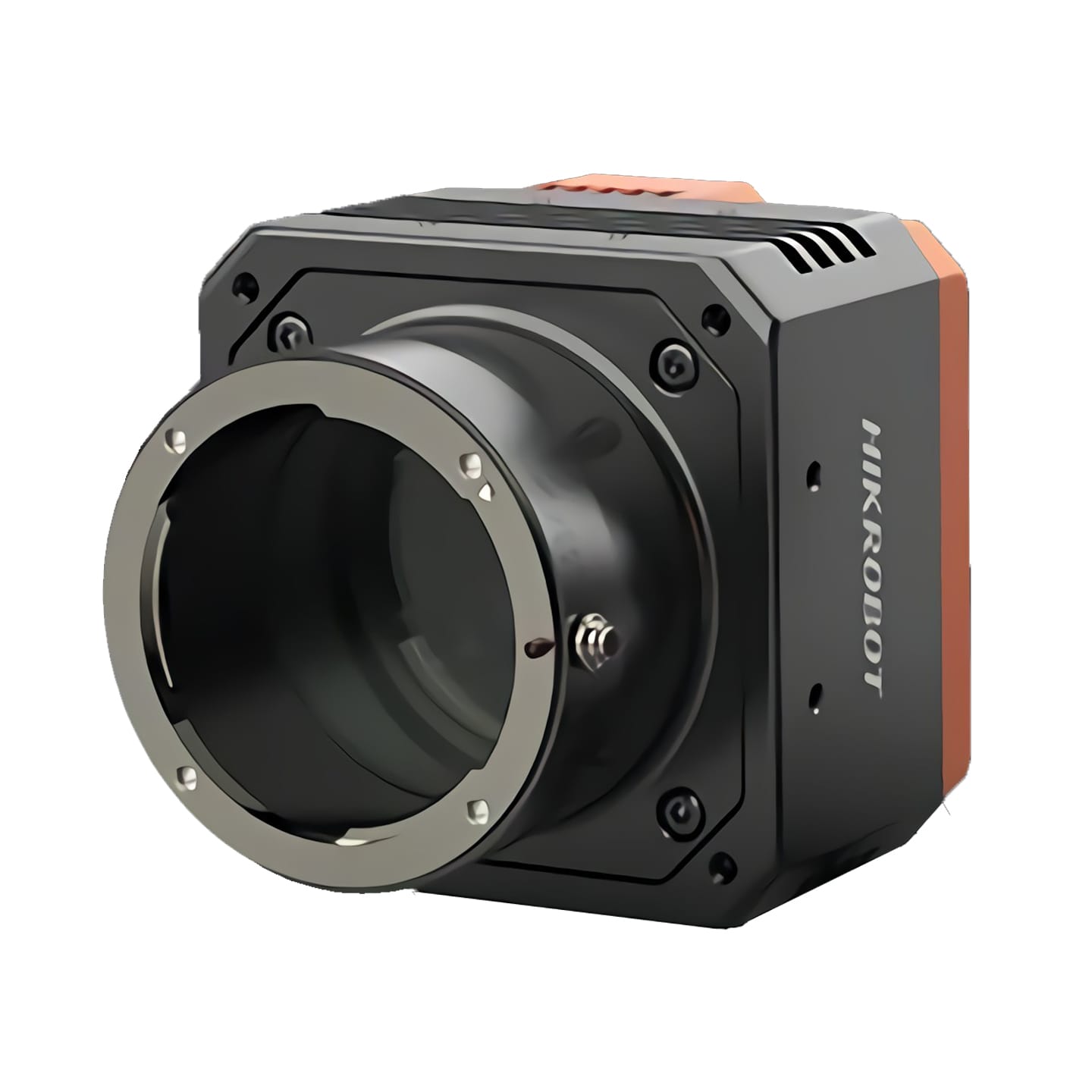

25 million pixel 10 Gigabit Ethernet port area scan camera, PYTHON25K, color, F port, with fan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
support automatic exposure, manual exposure, one-key exposure mode
|
|
|
|
|
|
Mono 8/10/12
Bayer RG 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed
RGB 8，BGR 8
|
|
|
supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 supported
|
|
|
support horizontal mirroring, vertical mirroring output
|
Electrical characteristics
|
|
|
|
|
12-PIN P10 connector provides power and I/O: 1 light coupling isolation input (LINE0), 1 light coupling isolation
output (LINE1), 1 two-way non-isolation I/O (LINE2) , 1 RS-232
|
|
|
|
Typical power consumption
|
|
|
|
|

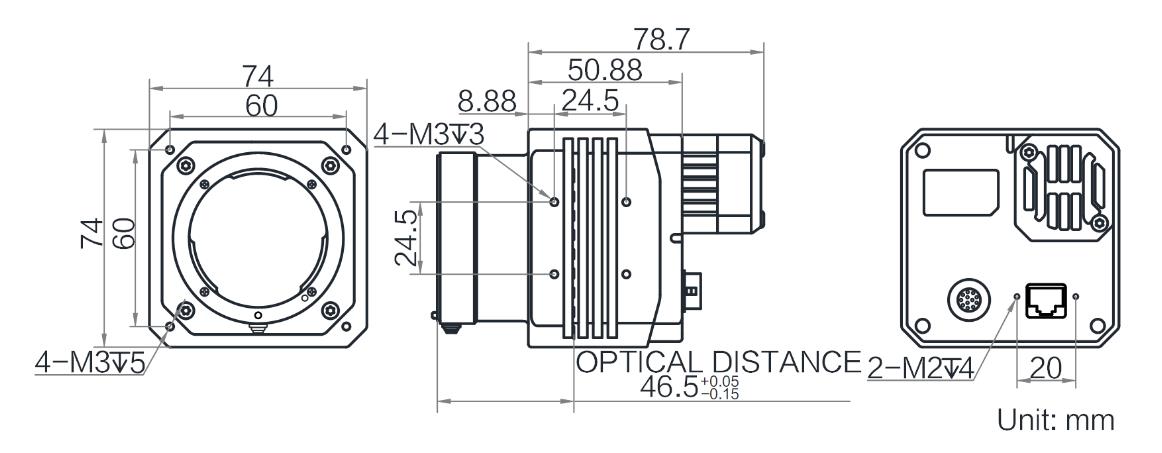

F port, flange back 46.5 mm
|
|
|
|
|
|
|
|
|
IP40 (in the case of correct installation lens and cable)
|
|
|
work temperature 0 ~ 50 ℃, storage temperature -30 ~ 70 ℃
|
|
|
20% ~ 95% RH without condensation
|
|
|
|
MVS or third -party supports GIGE VISION protocol software
|
|
|
Windows XP/7/10 32/64bits
|
|
|
GIGE VISION V2.0, Genicam
|
|
|
|
