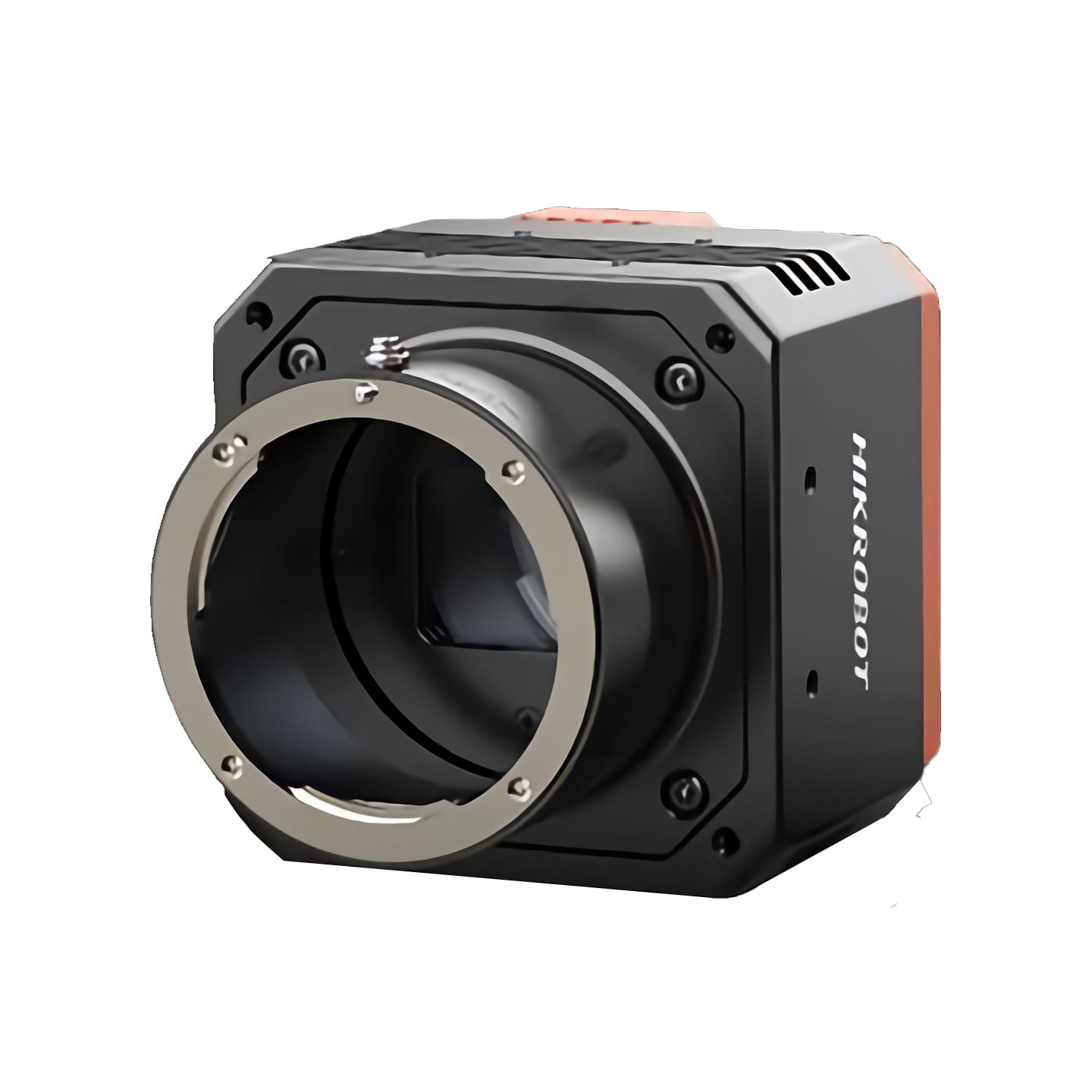

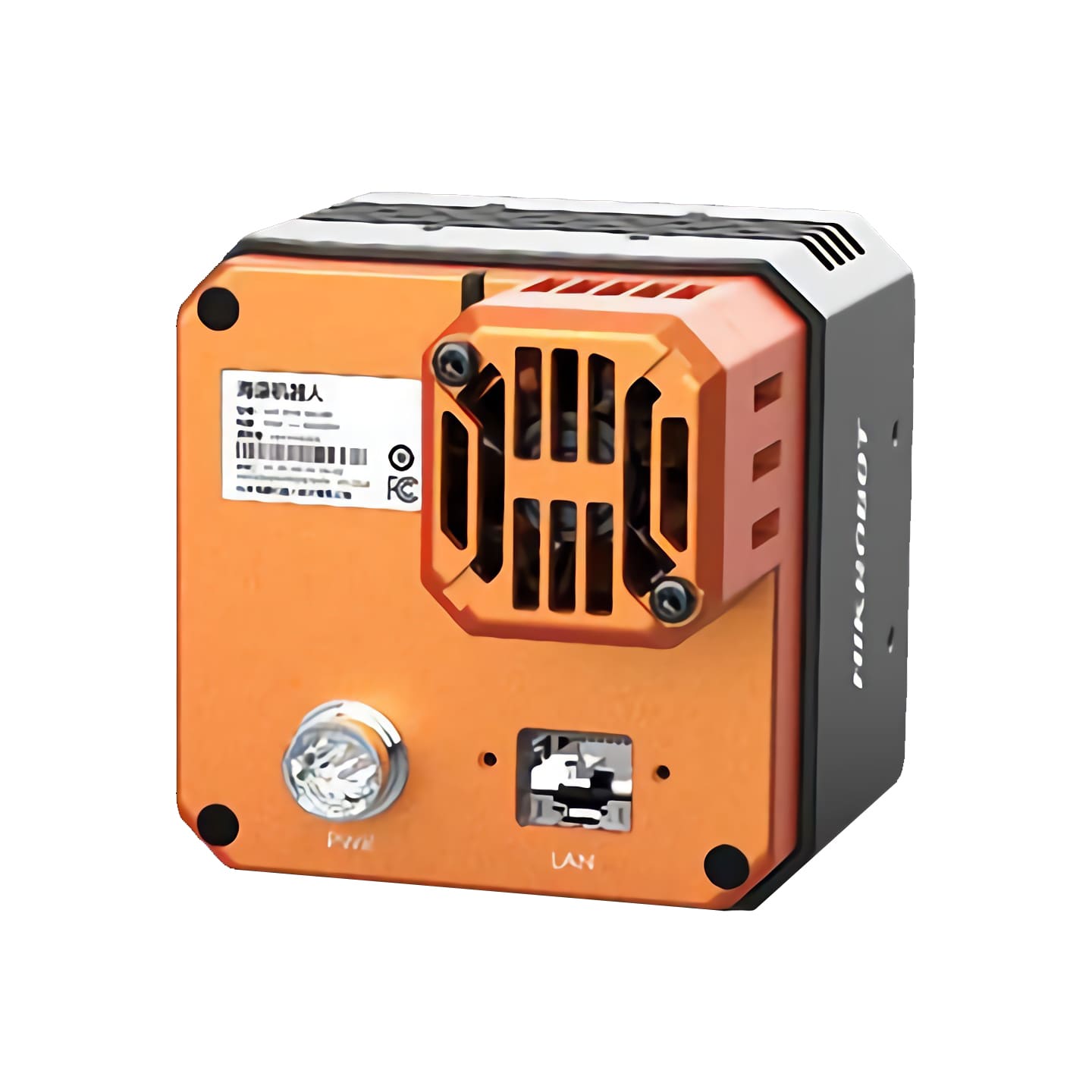

HIKROBOT MV-CH310-10GC-F-NF F-Mount Global Shutter CMOS 31MP 3.9fps Color High Resolution Industrial Camera

Product details

Model Number
Model
MV-CH310-10GC-F-NF
Name
31 million pixel network port area scan camera, IMX342, color, F port, with fan
Performance
Sensor Type
CMOS, Global Shutter
Sensor model
IMX342
Pixel size
3.45 µm × 3.45 µm
Target surface size
22.3 mm × 16.7 mm
Resolution
6464 × 4852
Maximum frame rate
3.9 fps @6464 × 4852
Dynamic range
73 dB
Signal-to-noise ratio
40 dB
Gain
0 dB ~ 24 dB
Exposure time
Ultra-short exposure mode: 3 us ~ 33 us
Normal exposure mode: 36 us ~ 10 s
Shutter mode
support automatic exposure, manual exposure, one-key exposure mode
Monochrome/Color
Color
Pixel format
Mono 8/10/12
Bayer RG 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed
RGB 8，BGR 8
Binning
supports 1 × 1, 2 × 2, 4 × 4
Downsampling
1 × 1, 2 × 2, 4 × 4 supported
Mirroring
support horizontal mirroring, vertical mirroring
Electrical Characteristics
Data Interface
GigE
Digital I/O
12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2) , 1 channel RS-232
Power supply
Voltage range 9 ~ 24 VDC
Typical power consumption
9 W@12 VDC
Structure
Lens mount
F mount, flange back focus 46.5 mm

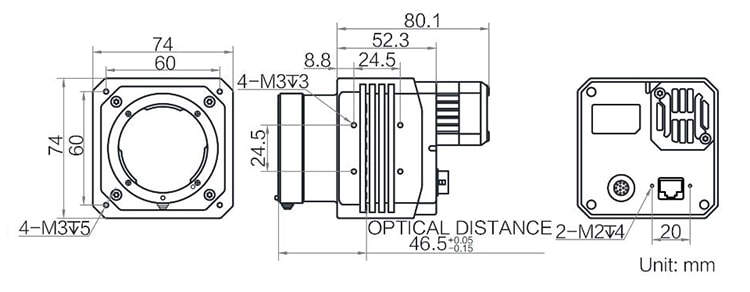

Dimensions
74 mm × 74 mm × 80.1 mm
Weight
about 600 g
IP protection grade
IP40 (when the lens and cable are installed correctly)
Temperature
working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
Humidity
20% ~ 95%RH without condensation
General Specifications
Software
MVS or 3rd party software supporting GigE Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
GigE Vision V2.0, GenICam
Certification
CE, FCC, RoHS, KC
