12MP 10G LAN area scan camera, IMX253, color, M58 optical interface, new hardware
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ultra-short exposure mode: 2 μs ~ 14 μs
Normal exposure mode: 15 μs ~ 10 sec
|
|
|
support automatic exposure, manual exposure, one-key exposure mode
|
|
|
|
|
|
Mono 8, Bayer RG 8
YUV422Packed, YUV422_YUYV_Packed
RGB 8, BGR 8
|
|
|
1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
support horizontal mirroring, vertical mirroring
|
Electrical Characteristics
|
|
|
|
|
12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2) , 1 channel RS-232
|
|
|
|
Typical power consumption
|
|
|
|
|

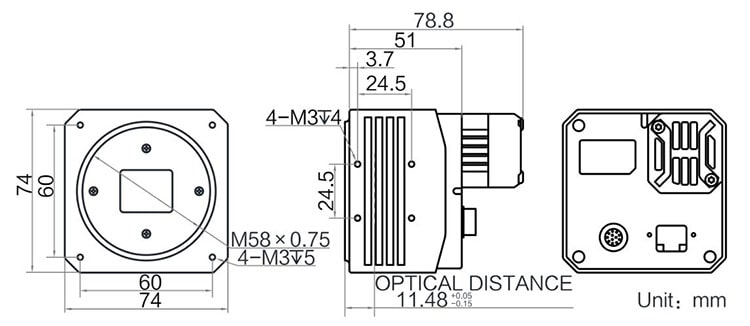

M58*0.75, flange back focus 11.48 mm
|
|
|
|
|
|
|
|
|
IP40 (when the lens and cable are installed correctly)
|
|
|
working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
|
|
|
20% ~ 95%RH without condensation
|
|
|
|
MVS or 3rd party software supporting GigE Vision protocol
|
|
|
Windows XP/7/10 32/64bits
|
|
|
GigE Vision V2.0, GenICam
|
|
|
|
