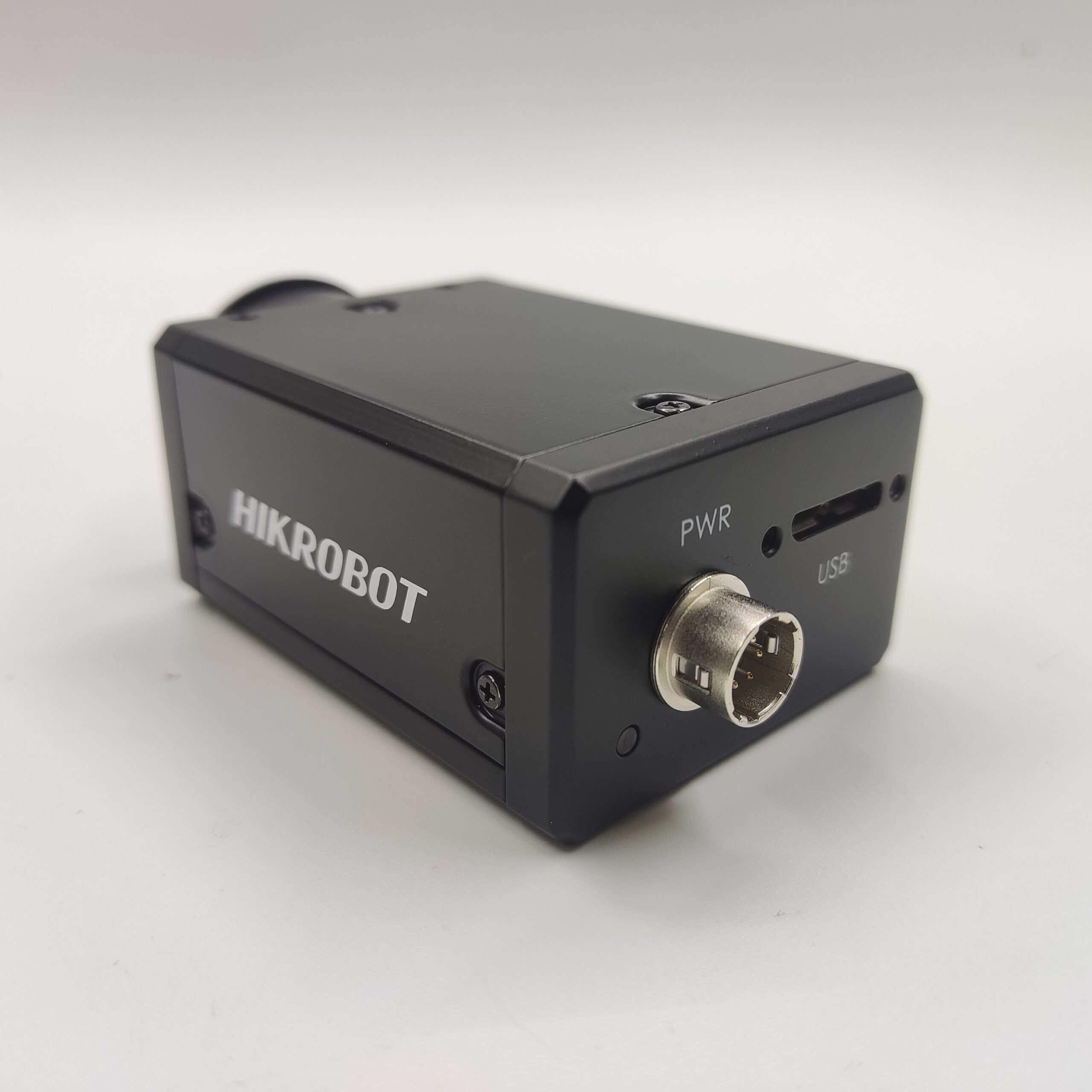

HIKROBOT MV-CH250-90UM(EoL) Global Shutter 25MP 14fps 1.1″ USB3.0 Mono Industrial Inspection Camera

HIKROBOT MV-CH250-90UM(EoL) Global Shutter 25MP 14fps 1.1″ USB3.0 Mono Industrial Inspection Camera

Product details

Model Number	Model	MV-CH250-90UM(EoL)
	Name	25MP USB 3.0 Area Scan Camera, GMAX0505, Mono
Performance	Sensor Type	CMOS, Global Shutter
	Sensor model	GMAX0505
	Pixel size	2.5 µm × 2.5 µm
	Target surface size	1.1″
	Resolution	5120 × 5120
	Maximum frame rate	14 fps @5120 × 5120 Mono 8
	Dynamic range	65 dB
	Signal-to-noise ratio	36 dB
	Gain	2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x
	Exposure time	12 μs ~ 10 sec
	Shutter mode	support automatic exposure, manual exposure, one-key exposure mode
	Black and white/color	black and white
	pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	1 × 1, 2 × 2, 4 × 4 supported
	Downsampling	1 × 1, 2 × 2, 4 × 4 supported
	Mirroring	support horizontal mirroring, vertical mirroring
Electrical Characteristics	Data interface	USB3.0

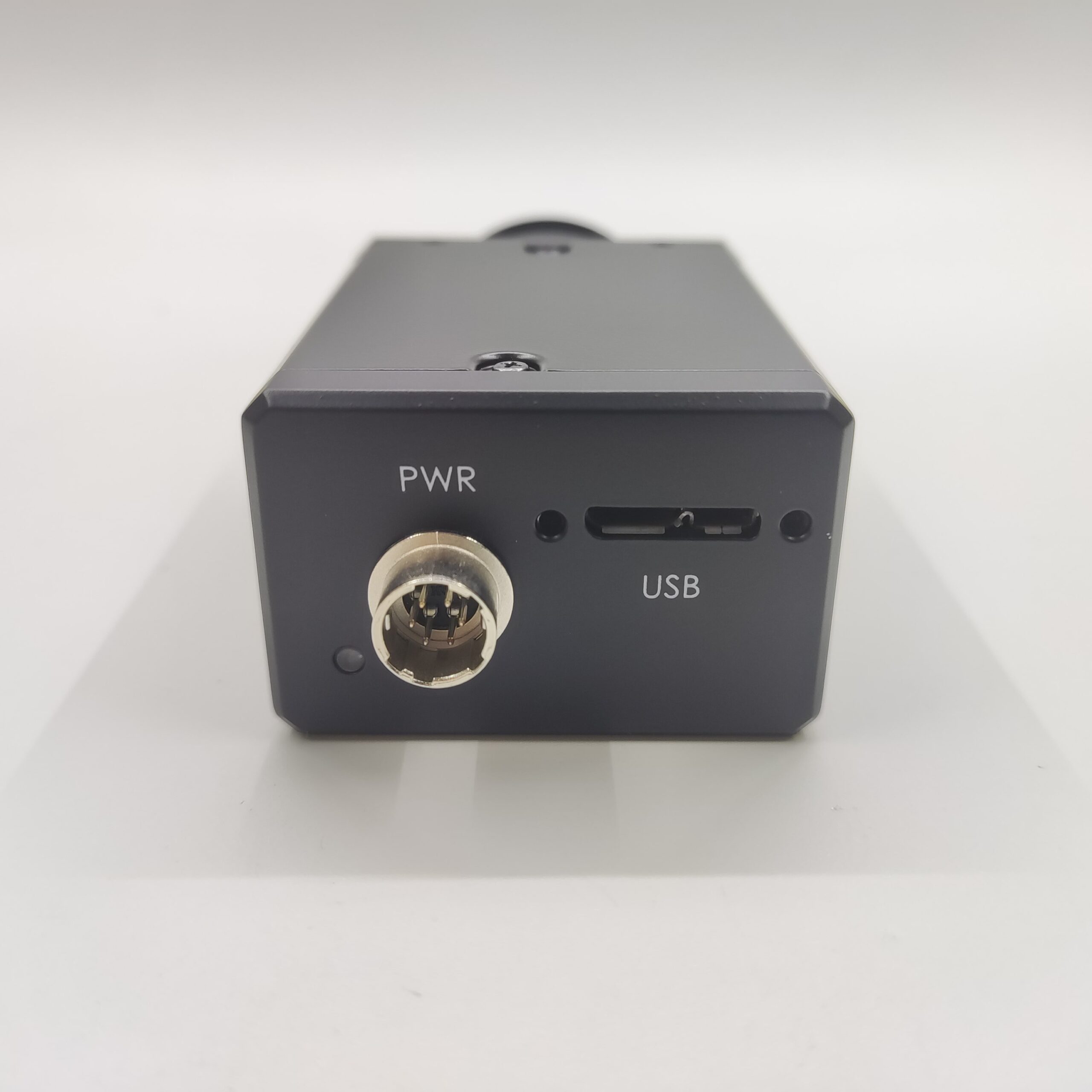

	Digital I/O	6-pin P7 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2)
	Power supply	12~24 VDC, support USB power supply
	Typical power consumption	3.6 W@5 VDC (USB powered)
Structure	Lens mount	C-mount
	Dimensions	29mm x 44mm x 59mm
	Weight	about 100 g
	IP protection grade	IP30 (when the lens and cable are installed correctly)
	Temperature	working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
	Humidity	20% ~ 80%RH without condensation
General Specifications	Software	MVS or third-party software compatible with USB3 Vision protocol
	Operating System	Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
	Protocol/Standard	USB3 Vision, GenlCam
	Certification	CE, FCC, RoHS, KC
