HIKROBOT MV-CH120-20UM 12MP CMOS 28fps 1″ Global Shutter Mono Industrial Camera USB3.0 for Machine Vision

Product details

Model Number
Model
MV-CH120-20UM
Name
12 million pixel USB 3.0 area scan camera, XGS12000, black and white
Performance
Sensor Type
CMOS, Global Shutter
Sensor model
XGS12000
Pixel size
3.2 µm × 3.2 µm
Target surface size
1″
Resolution
4096 × 3072
Maximum frame rate
28 fps @4096 × 3072
Dynamic range
68 dB
Signal-to-noise ratio
40 dB
Gain
0 dB ~ 18 dB
Exposure time
Ultra-small exposure mode: 52 μs ~ 161 μs
Normal exposure mode: 162 μs ~ 10 sec
Ultra-small exposure mode
52 μs ~ 161 μs Normal exposure mode: 162 μs ~ 10 sec
Black & White/Color
Black & White
Pixel Format
Mono 8/10/10Packed/12/12Packed
Binning
supports 1 × 1, 2 × 2, 4 × 4
Downsampling
1 × 1, 2 × 2 supported
Mirroring
support horizontal mirroring, vertical mirroring output
Electrical Characteristics
Data interface
USB3.0
Digital I/O
6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2)
Power supply
9 ~ 24 VDC, support USB power supply
Typical power consumption
3.5 W@5 VDC (USB powered)
Structure
Lens mount
C-Mount

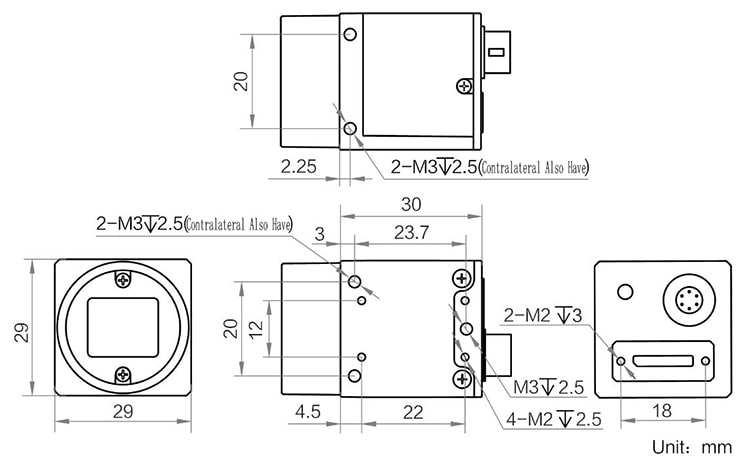

Dimensions
29mm×29mm×30mm
Weight
about 80 g
IP protection grade
IP40 (when the lens and cable are installed correctly)
Temperature
working temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
Humidity
20% ~ 95%RH without condensation
General Specifications
Software
MVS or 3rd party software supporting USB3 Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
USB3 Vision, GenICam
Certification
CE, FCC, RoHS, KC
