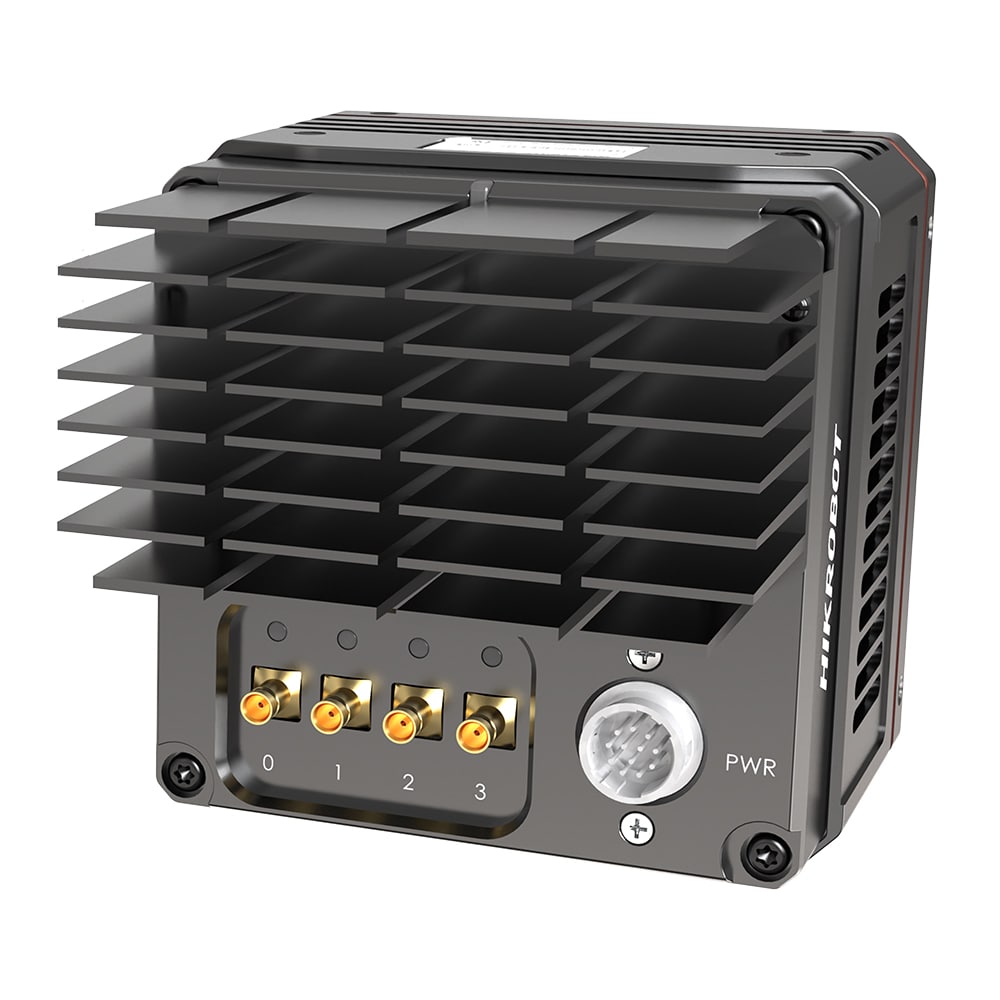

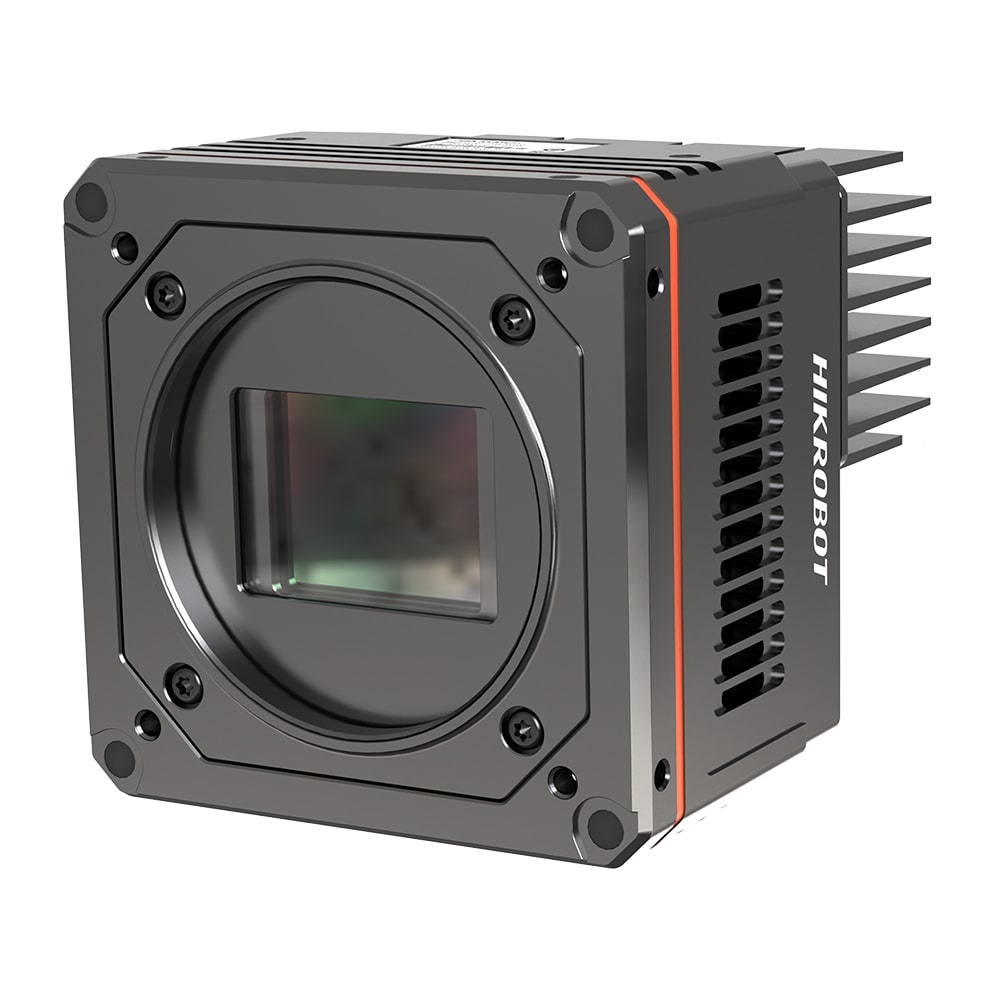

25M pixel CoaXPress Face Camera, PYTHON25K, CXP-6 interface, color, M58 interface, no fan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
support for automatic exposure, manual exposure, one-touch exposure and other modes
|
|
|
|
|
|
|
|
|
Support 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
|
|
|
Support 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
|
|
|
support horizontal mirror, vertical mirror output
|
Electrical characteristics
|
|
|
|
|
12-pin P10 connector provides power and I/O, including 1 optically isolated input (Line 0), 1 optically isolated
output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2), 1 RS-232
|
|
|
9 ~ 24 VDC, CXP-0 and CXP-1 interfaces support PoCXP power supply
|
Typical power consumption
|
|
|
|
|

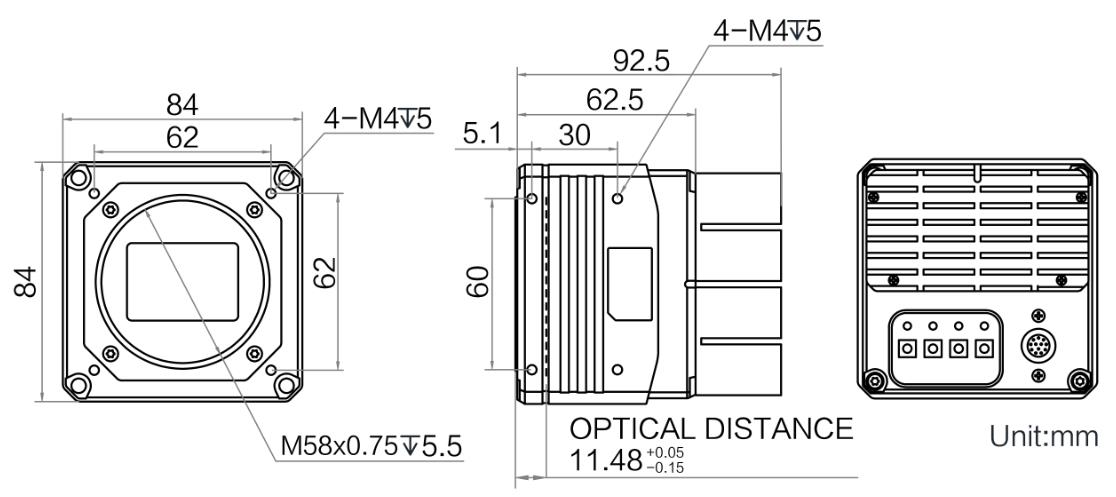

M58*0.75, flange back focus 11.48 mm
|
|
|
|
|
|
|
|
|
IP40 (with lens and cable properly installed)
|
|
|
working temperature 0℃ ~ 50℃, storage temperature -30℃ ~ 70℃
|
|
|
20% ~ 95% RH non-condensing
|
|
|
|
MVS or capture card control software conforming to CoaXPress protocol
|
|
|
|
|
|
|
|
|
|
