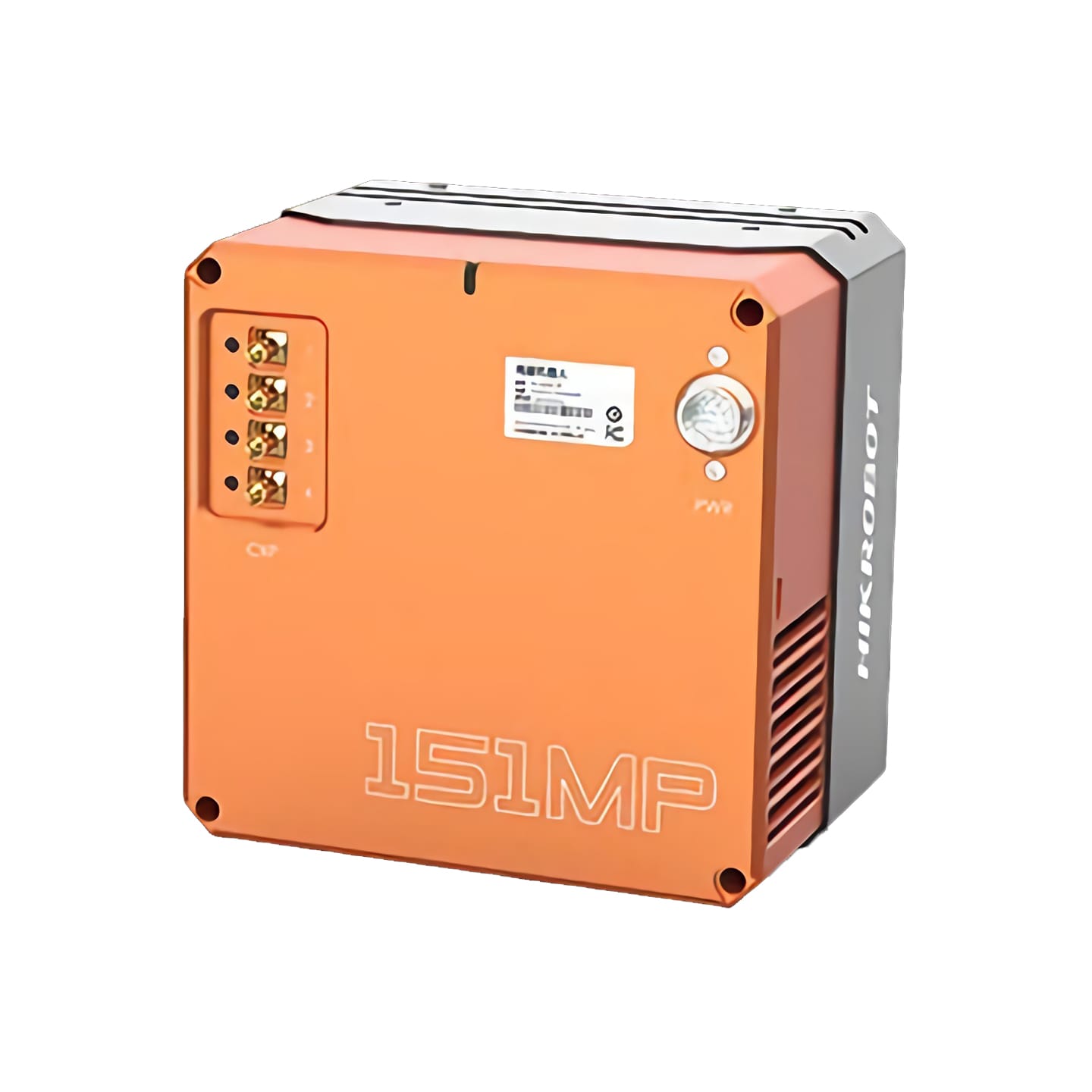

HIKROBOT MV-CH1510-11XM-M72-TF 151MP 6.2fps Mono M72-Mount CoaXPress TEC Industrial Area Scan Camera

Product details

Model Number
Model
MV-CH1510-11XM-M72-TF
Name
151 Megapixel CoaXPress Face-to-Face Camera, IMX411, B/W, M72 Port, TEC
Performance
Sensor type
CMOS, Rolling Shutter
Sensor model
IMX411
Image element size
3.76 µm × 3.76 µm
Target surface size
66.7 mm
Resolution
14208 × 10640
Maximum frame rate
6.2 fps @ 14208 × 10640
Dynamic range
78.7 dB
Signal-to-noise ratio
46.4 dB
Gain
0 ~ 30 dB
Exposure time
15 μs ~ 10 sec
Shutter mode
support automatic exposure, manual exposure, one-touch exposure mode, support Rolling and Global Reset mode
Black and white/color
black and white
Pixel format
Mono 8/10/12/16
Binning
Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Downsampling
Not supported
Mirroring
Support horizontal mirroring
Electrical characteristics
Data interface
CoaXPress
Digital I/O
12-pin P10 connector provides power and I/O interfaces: 1 optically isolated input (Line 0), 1 optically isolated
output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2), 1 RS-232
Power supply
24 VDC
Typical power consumption
Non-cooled mode: 21 W@24 VDC
Cooling mode: 55 W@24 VDC
Structure
Lens interface
M72*0.75, flange back focus 19.55 mm

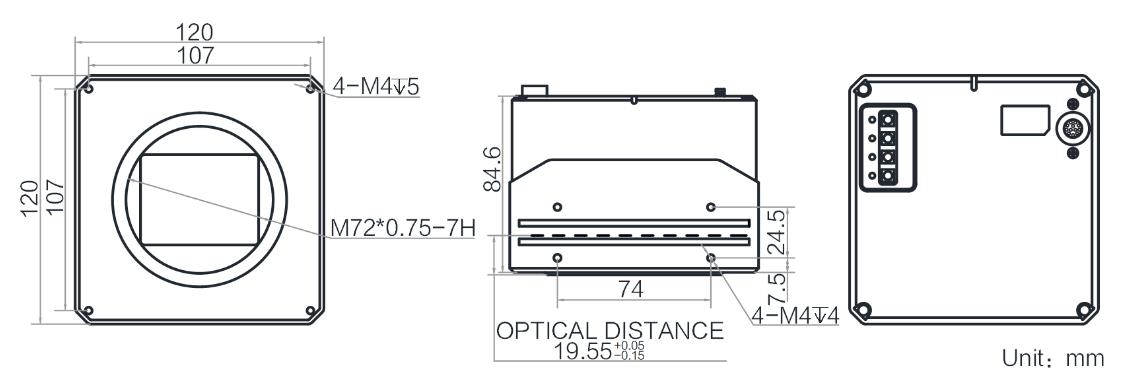

External dimensions
120 mm × 120 mm × 84.6 mm
Weight
Approx. 1.9 kg
IP rating
IP40 (with lens and cable properly installed)
Temperature
working temperature 0℃ ~ 50℃, storage temperature -30℃ ~ 70℃
Humidity
20% ~ 95%RH non-condensing
General Specifications
Software
capture card control software in line with CoaXPress protocol
Operating system
Windows 7/10 64bits (8 GB or more memory)
Protocol/standard
CoaXPress, GenICam
Certification
CE, FCC, RoHS, KC
