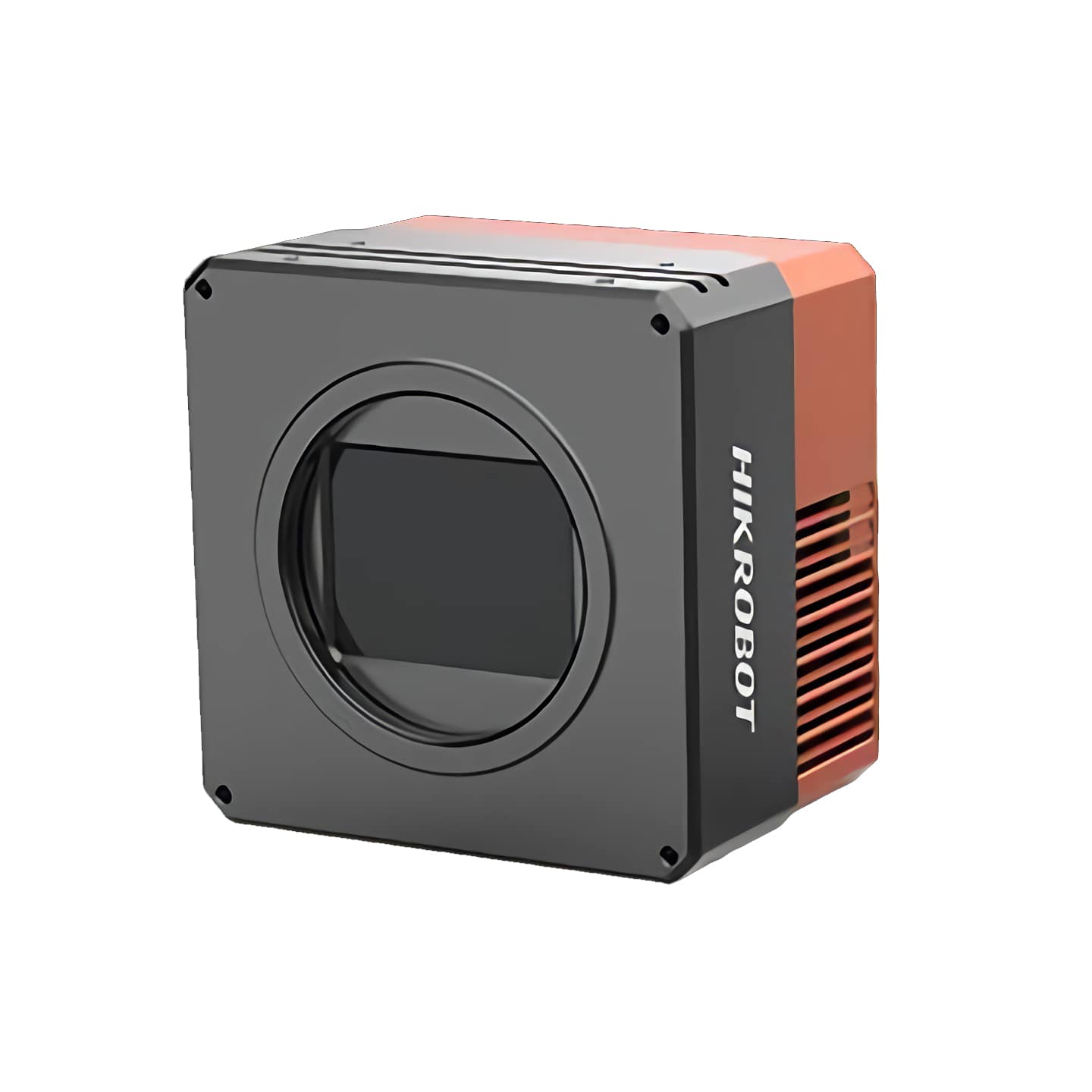

HIKROBOT MV-CH1510-11XC-M72-TF 151MP 6.2fps Color M72-Mount CoaXPress TEC Industrial Area Scan Camera

Product details

Model Number
Model
MV-CH1510-11XC-M72-TF
Name
151MP Area Scan Camera, CoaXPress, IMX411, Color, M72-mount, with TEC
Performance
Sensor type
CMOS, Rolling Shutter
Sensor model
IMX411
Image element size
3.76 µm × 3.76 µm
Target surface size
66.7 mm
Resolution
14208 × 10640
Maximum frame rate
6.2 fps @14208 × 10640 Mono 8
Dynamic range
78.7 dB
Signal-to-noise ratio
46.4 dB
Gain
0 ~ 30 dB
Exposure time
15 μs to 60 sec
Exposure mode
Off/Once/Continuous exposure mode, supports Global Reset, Rolling

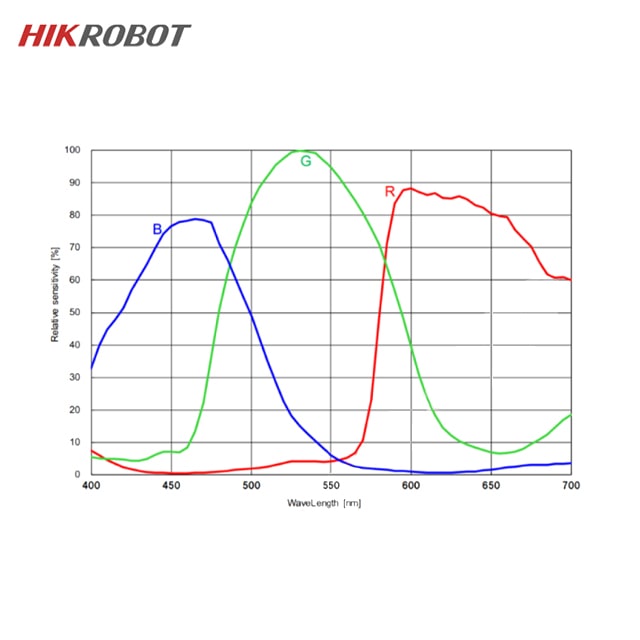

Black and white/color
Color
Pixel format
Mono 8/10/12/16, Bayer RG 8/10/12/16, RGB 8
Binning
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Downsampling
Not supported
Reverse image
Supports horizontal reverse image output
Electrical characteristics
Data interface

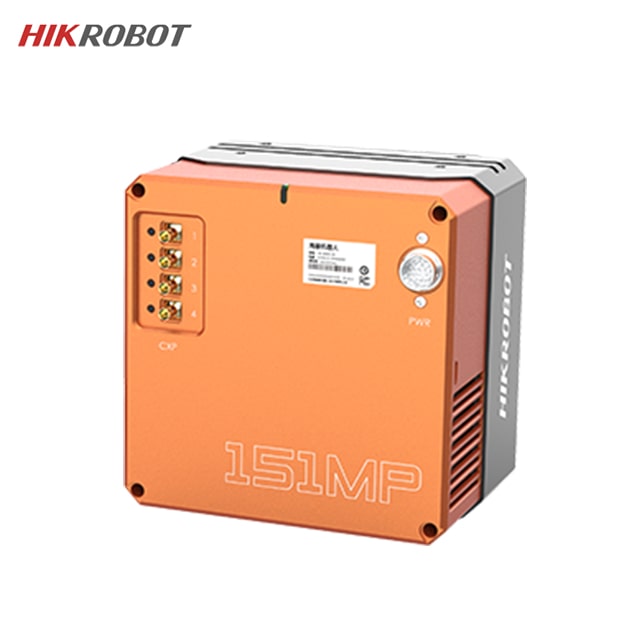

CoaXPress
Digital I/O
12-pin P10 connector provides I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional
non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply
24 VDC
Typical power consumption
Typ. 22 W@24 VDC (non-cooling) Typ. 60 W@24 VDC (cooling)
Structure
Lens interface
M72*0.75, optical back focal length 19.55 mm (0.8″)

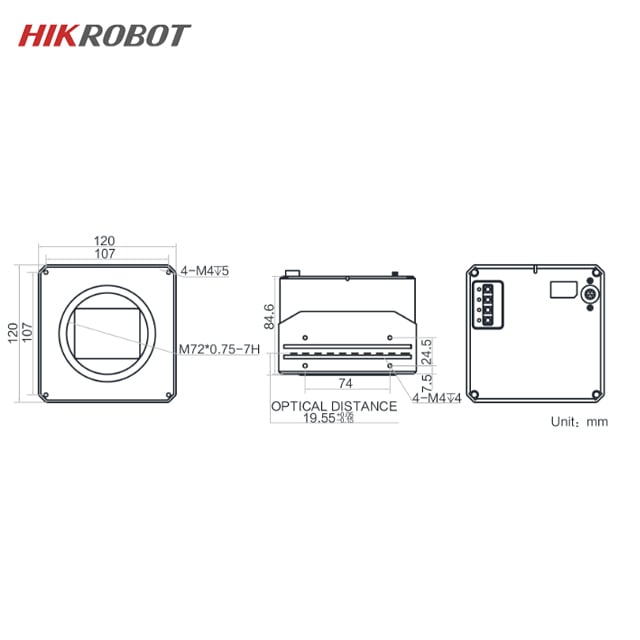

External dimensions
120 mm × 120 mm × 84.6 mm (4.7″ × 4.7″ × 3.3″)
Weight
Approx. 1.9 kg (4.2 lb.)
IP rating
IP40 (with lens and cable properly installed)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% ~ 95%RH non-condensing
General Specifications
Client software
Acquisition card control software that complies with the CoaXPress protocol
Operating system
32/64-bit Windows 7/10 with 8 GB memory or above
Protocol/standard
CoaXPress, GenICam
Certification
CE, RoHS, KC
