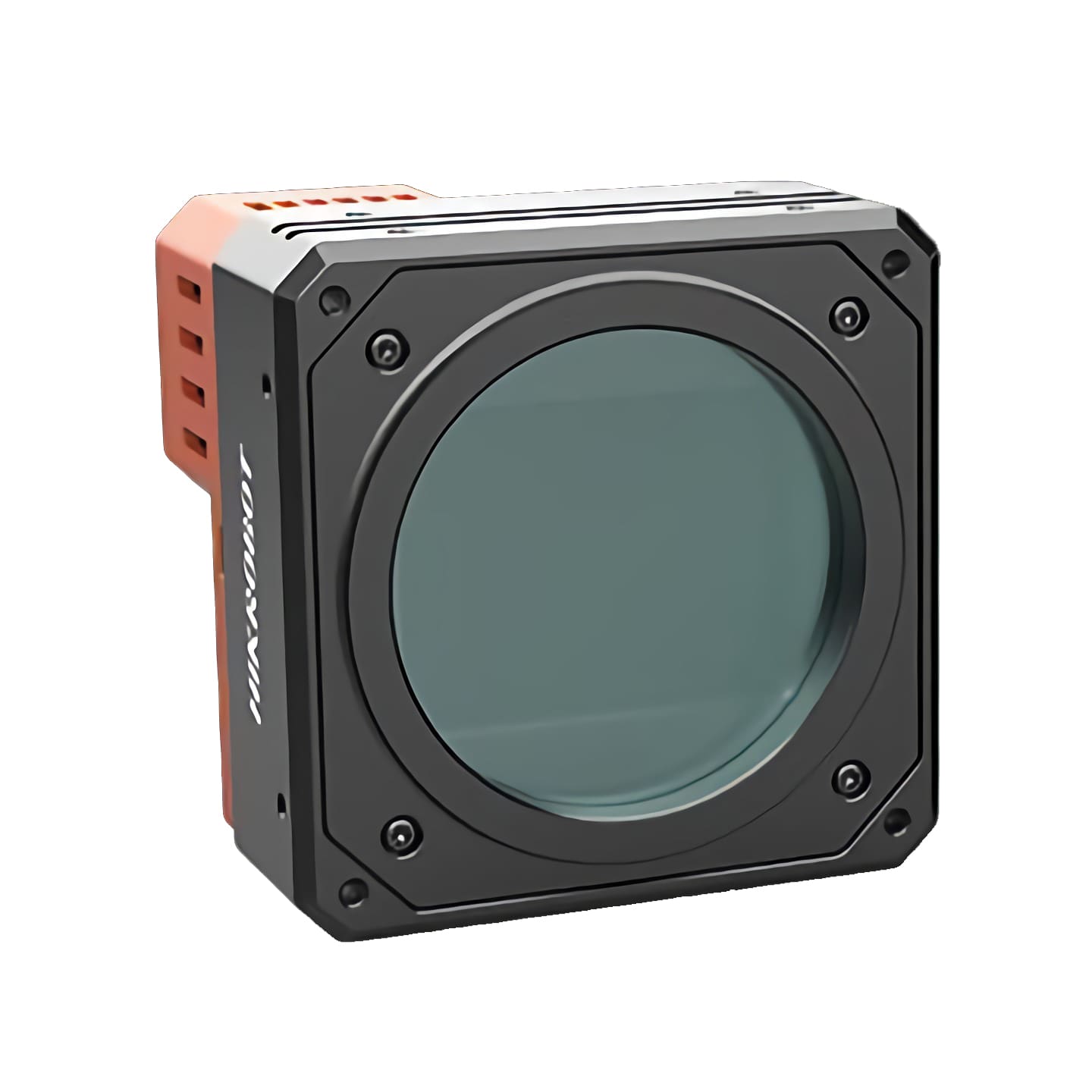

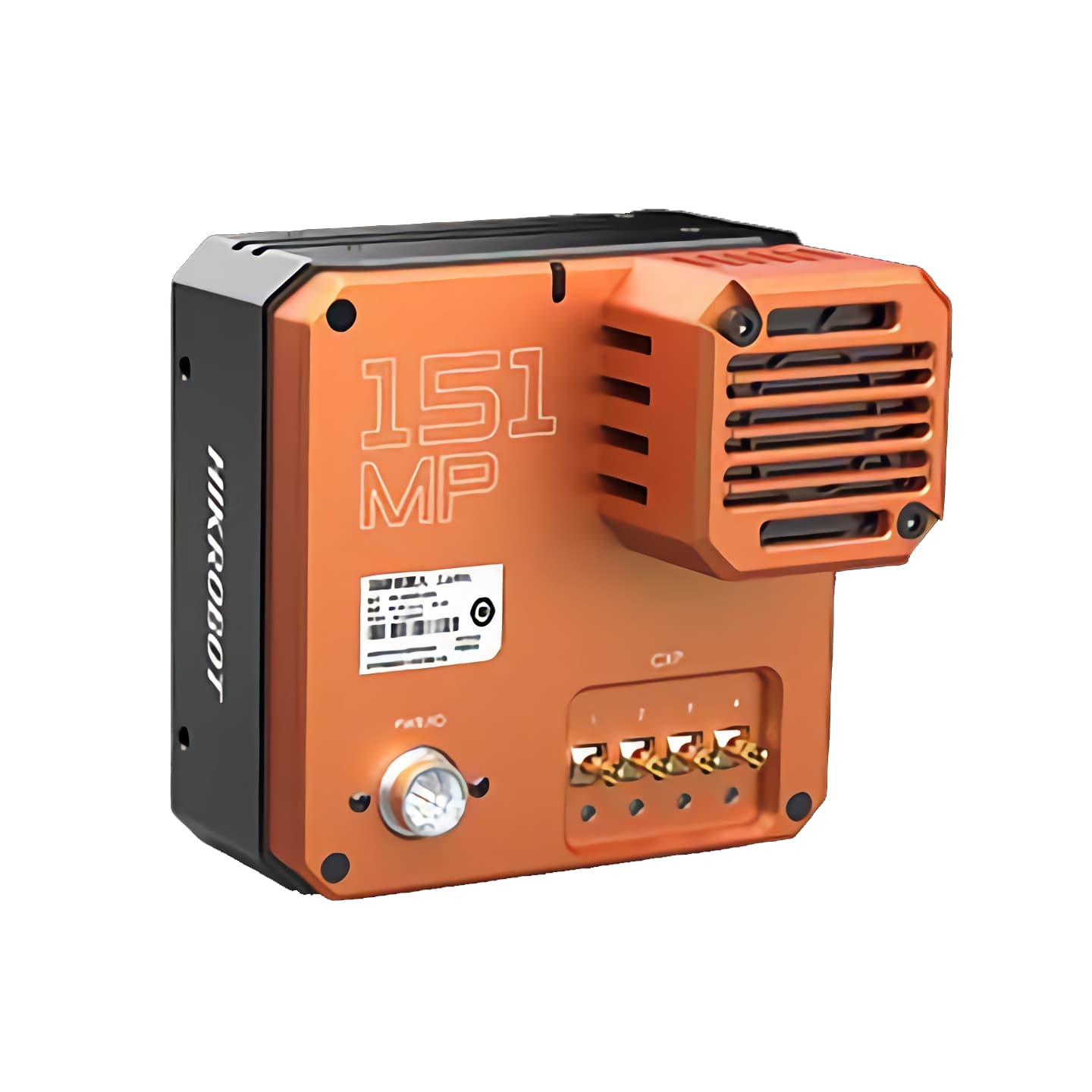

HIKROBOT MV-CH1510-10XM/XC-M72-NF M72-Mount IMX411 151MP Color/Mono CoaXPress With Fan Industrial Camera

Product details

Model Number
Model
MV-CH1510-10XM-M72-NF / MV-CH1510-10XC-M72-NF
Name
151 Megapixel CoaXPress Front Panel Camera, IMX411, Black & White/Color, M72 Port with Fan
Performance
Sensor type
CMOS, Rolling Shutter
Sensor model
IMX411
Image element size
3.76 µm × 3.76 µm
Target surface size
66.7 mm
Resolution
14208 × 10640
Maximum frame rate
6.2 fps @ 14208 × 10640
Dynamic range
78.7 dB
Signal-to-noise ratio
46.4 dB
Gain
Black and White
0 ~ 30 dB
Color
0 ~ 36 dB
Exposure time
15 μs ~ 10 sec
Shutter mode
support automatic exposure, manual exposure, one-touch exposure mode, support Rolling and Global Reset mode
Black and white/color
black and white and color two styles
Pixel format
Black and White
Mono 8/10/12/16
Color
Mono 8/10/12/16
Bayer RG 8/10/12/16
RGB 8
Binning
Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Downsampling
Not supported
Mirroring
Support horizontal mirroring
Electrical characteristics
Data interface
CoaXPress
Digital I/O
12-pin P10 connector provides power and I/O interfaces: 1 optocoupler isolated input (Line 0), 1 optocoupler isolated
output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2), 1 RS-232
Power supply
12 ~ 24 VDC
Typical power consumption
18 W@24 VDC
Structure
Lens interface
M72*0.75, flange back focus 19.55 mm

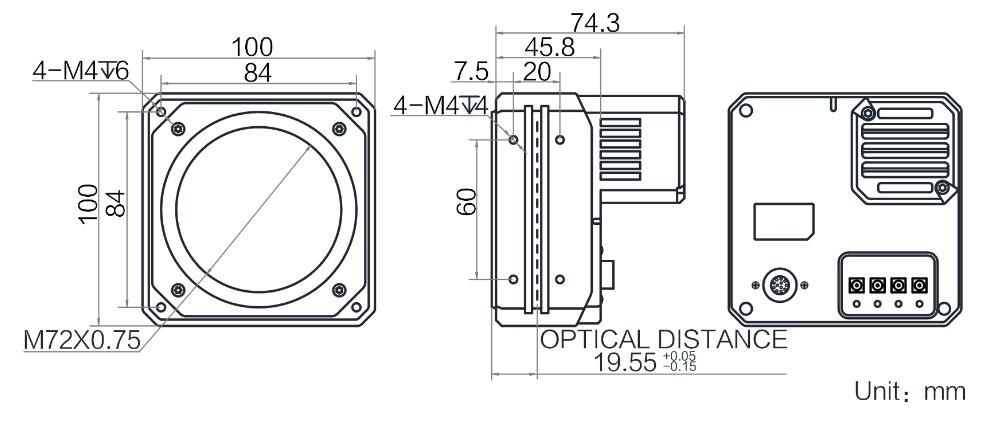

Dimensions
100 mm × 100 mm × 74.3 mm
Weight
Approx. 1.0 kg
IP rating
IP40 (with lens and cable properly installed)
Temperature
working temperature 0℃ ~ 50℃, storage temperature -30℃ ~ 70℃
Humidity
20% ~ 95%RH non-condensing
General Specifications
Software
capture card control software in line with CoaXPress protocol
Operating system
Windows 7/10 64bits (8 GB or more memory)
Protocol/standard
CoaXPress, GenICam
Certification
CE, FCC, RoHS, KC
