HIKROBOT MV-VC3704P-128G60/128G66 I7-8700 16GB+128G SSD+2T HDD Support PCIE Extended Visual Controller

HIKROBOT MV-VC3704P-128G60/128G66 I7-8700 16GB+128G SSD+2T HDD Support PCIE Extended Visual Controller

Product details

Model	Model Number	MV-VC3704P-128G60	MV-VC3704P-128G66
	Name	Vision Controller
Performance	Processor	i7-8700
	Memory	8GB
	Storage	128G SSD and 2T HDD
	Graphics Processor	Intel® Core Graphics 630
	Operating system	Windows 10 64-bit, not activated
External Interface	Video Output	1 HDMI port, 1 VGA port Support simultaneous independent display output Supports up to 4096 × 2304 @24Hz
	Digital I/O	Support 3-channel optocoupler isolated input Support 8-channel optocoupler isolated output (support NPN/PNP switching)
	Network Interface	6 Intel Gigabit Ethernet ports
	USB interface	4 USB2.0 ports 4 USB3.0 ports 1 internal USB2.0 port	4 USB2.0 ports，4 USB3.0 ports 1 built-in USB2.0 interface with IMVS-VM-6100 dongle inserted
	Serial port	2-channel full-featured RS-232
	Expansion interface	1 PCIE3.0 x16 interface
Electrical characteristics	Power supply	24 VDC
	Typical power consumption	95 W

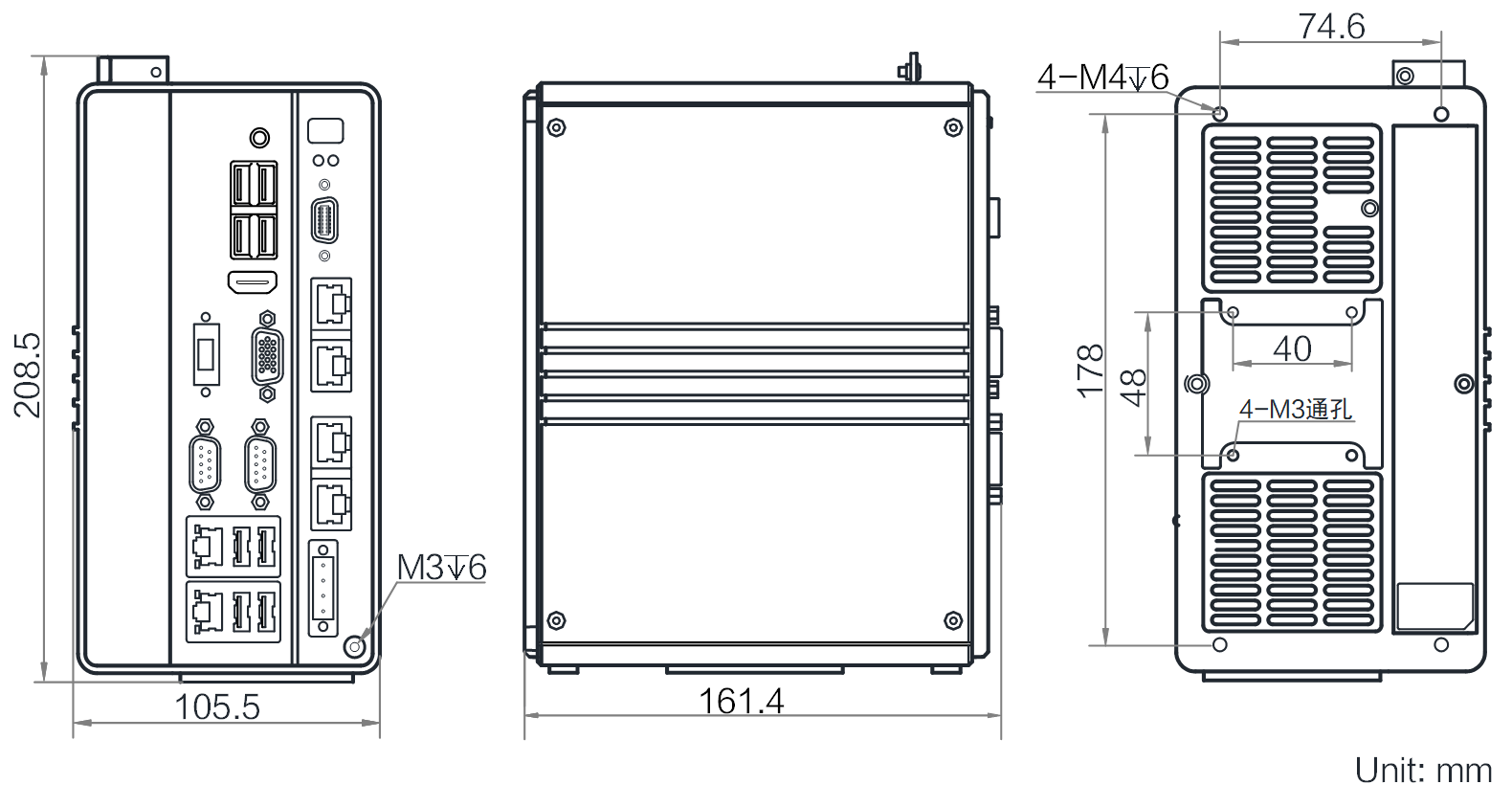

Structure	External dimensions	161.4 mm×208.5 mm×105.5 mm
	Weight	approx. 2.1 kg
	Temperature	0 ~ 50 °C
	Humidity	20% ~ 95% RH non-condensing
General Specifications	Certification	CE，FCC
