HIKROBOT MV-SI638-08GM 6MP 3072*2048 30fps 1/1.8″ IMX178 X86 Open Platform Smart Camera for Machine Vision
Product details
|
Model
|
Model Number
|
MV-SI638-08GM
|
|
Name
|
6 megapixel X86 open platform black and white model
|
|
|
Tools
|
Functional Modules
|
Open Platform
|
|
Camera
|
Sensor type
|
CMOS, Rolling Shutter
|
|
Sensor Model
|
IMX178
|
|
|
Image element size
|
2.4 µm×2.4 µm
|
|
|
Target surface size
|
1/1.8″
|
|
|
Resolution
|
3072×2048
|
|
|
Maximum acquisition frame rate
|
30 fps
|
|
|
Dynamic range
|
71.3 dB
|
|
|
Signal to Noise Ratio
|
41.3 dB
|
|
|
Gain
|
0 dB ~ 15 dB
|
|
|
Exposure time
|
27 μs ~ 2.5 sec
|
|
|
Pixel format
|
Mono 8
|
|
|
Black and white/color
|
Mono
|
|
|
Electrical Characteristics
|
Data interface
|
GigE
|
|
Digital I/O
|
12-Pin M12 interface, supports 3 optocoupler inputs (LineIn 0/1/2), 3 optocoupler outputs (LineOut 0/1/2), 1 RS-232
|
|
|
Extended Interface
|
17-Pin expansion port for external expansion module or VGA and USB interface
|
|
|
Power supply
|
24 VDC
|
|
|
Typical power consumption
|
24 W@24 VDC
|
|
|
Structure
|
Lens Interface
|
C-mount
|
|
Lens hood
|
Transparent lens cover
|
|
|
Light source
|
White light
|
|
|
Indicator light
|
Power indicator PWR, network indicator LNK/ACT, user indicator U1/U2
|
|
|

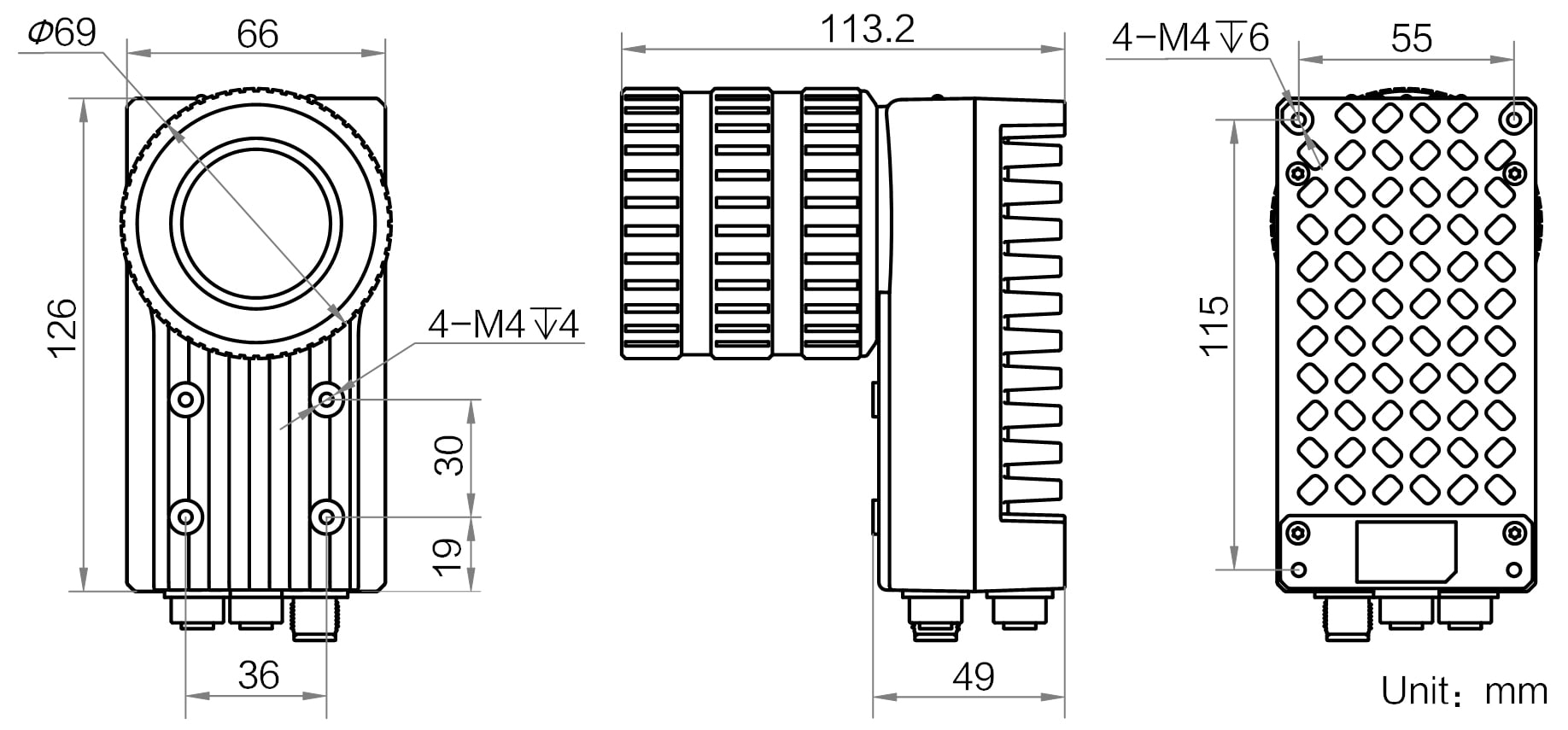

Dimensions
|
126 mm×66 mm×113.2 mm
|
|
|
Weight
|
approx 750 g
|
|
|
IP protection level
|
IP67 (with lens and cable properly installed)
|
|
|
Temperature
|
working temperature 0~50℃, storage temperature -30~70℃
|
|
|
Humidity
|
20%~95%RH non-condensing
|
|
|
General Specifications
|
Software
|
SCMVS
|
|
Certification
|
CE, FCC, KC
|
