Model

Model Number

MV-SC3016M-06M-WBN

Name

6mm lens 1.6 megapixel black and white SC3000 vision sensor

Tools

Visual tools

Counting: speckle counting, edge counting, pattern counting Defect: Abnormality detection Presence or absence: circle presence or
absence, straight line presence or absence, spot presence or absence, edge presence or absence, pattern presence or absence
Positioning: calibration, positioning, position correction Logic: branch control, conditional judgment, logical judgment,
combination judgment, character comparison, variable calculation Measurement: line angle, diameter measurement, brightness
average, contrast measurement, width measurement, dotted line measurement, grayscale area, straight line angle, pitch detection
Recognition: character recognition, code recognition

Solution capability

Support solution import/export, up to 32 solutions and 40 modules can be stored

Communication protocols

RS-232、TCP、UDP、FTP、PROFINET、Modbus、EtherNet/IP

Camera

Sensor type

CMOS, global shutter

Image element size

3.45 µm × 3.45 µm

Target surface size

1/2.9″

Resolution

1408 × 1024

Maximum acquisition frame rate

60 fps

Dynamic range

71.4 dB

Signal-to-noise ratio

41 dB

Gain

0~15 dB

Exposure time

16 μs~1 sec

Pixel format

Mono 8

Black and white/color

Mono

Electrical Characteristics

Data interface

Fast Ethernet（100Mbit/s）

Digital I/O

17-pin M12 interface provides power supply, Ethernet, digital IO, serial functions: 2 input signals (Line0/1), 3 output signals
(Line5/6/7), 3 configurable inputs and outputs (Line2/3/4), 1 external button input (BUTTON) NPN or PNP type of output signal can
be matched

Power supply

24 VDC

Typical power consumption

48 W@24 VDC

Structure

Lens interface

M12-mount, mechanical focus

Focal length

14.8 mm

Lens hood

Transparent lens hood, optional semi-polarized lens hood or fully polarized lens hood

Light source

14 LEDs: white (default factory) / red / blue / near infrared

Indicator light

Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NGPower indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG

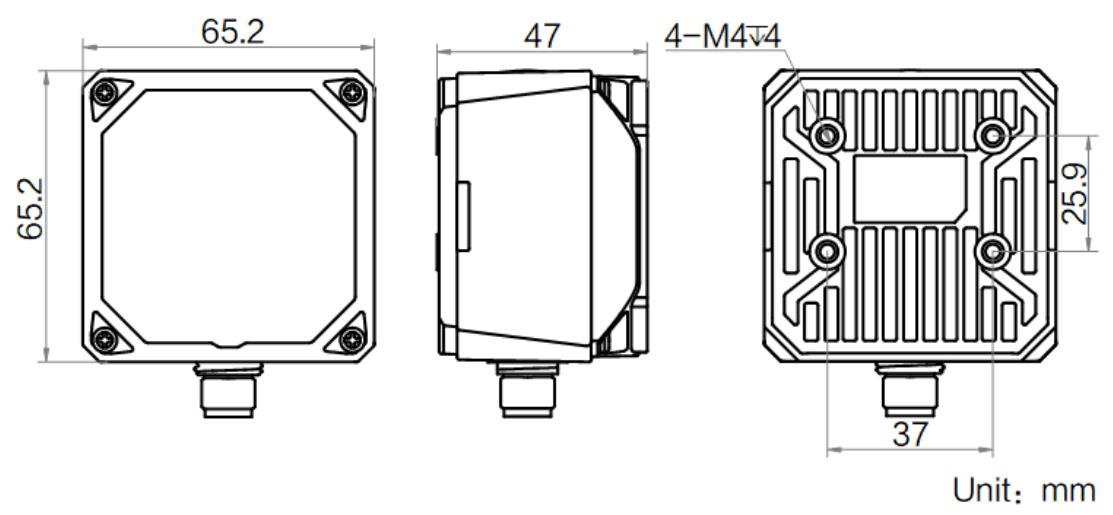

Dimensions

65.2 mm × 65.2 mm × 47 mm

Weight

approx 280 g

IP protection level

IP67 (with properly installed lenses and cables)

Temperature

working temperature 0~50℃, storage temperature -30~70℃

Humidity

20%~95%RH non-condensing

General Specifications

Software

SCMVS

Certification

CE, FCC, KC
