HIKROBOT MV-JZD2026E-10S-RBN/RBP/WBN/WBP-U USB2.0 1.3MP Very Small Intelligent Industrial Code Reader

HIKROBOT MV-JZD2026E-10S-RBN/RBP/WBN/WBP-U USB2.0 1.3MP Very Small Intelligent Industrial Code Reader

Product details

Model	Model Number	MV-JZD2026E-10S-RBN-U	MV-JZD2026E-10S-RBP-U	MV-JZD2026E-10S-WBN-U	MV-JZD2026E-10S-WBP-U
	Name	1.3 megapixel very small intelligent code reader
Performance	Bar code categories	1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc. 2D code: QR Code, Data Matrix, etc.
	Maximum processing frame rate	50 fps
	Max. reading speed	30 yards per second
	Sensor type	CMOS, global Shutter
	Image element size	2.7 μm × 2.7 μm
	Target surface size	1/4”
	Resolution	1280 × 1024
	Exposure time	60 μs ~ 0.6 sec
	Gain	1 ~ 28 dB
	Black and white/color	Mono
	Communication protocols	SmartSDK，USB（HID、CDC）
	Depth of Field	Code 39（5 mil）：75 ~ 215 mm Code 128（10 mil）：50 ~ 400 mm EAN 13（13 mil）：60 ~ 420 mm QR Code（15 mil）：40 ~ 290 mm Data Matrix（10 mil）：50 ~ 240 mm
Electrical characteristics	Data interface	USB 2.0
	Digital I/O	DB15 interface provides data transmission and supports device triggering via side buttons
	Power supply	5 VDC (USB 2.0 powered)
	Maximum power consumption	2.5 W@12 VDC;2.5 W@5 VDC
Structure	Focal length	4.7 mm
	Ambient light	0 ~ 10000 lux
	Light source	Red	Red (polarized)	White	White(polarized)
	Sights	Green LED
	Indicator light	Power indicator POWER, status indicator OK/NG

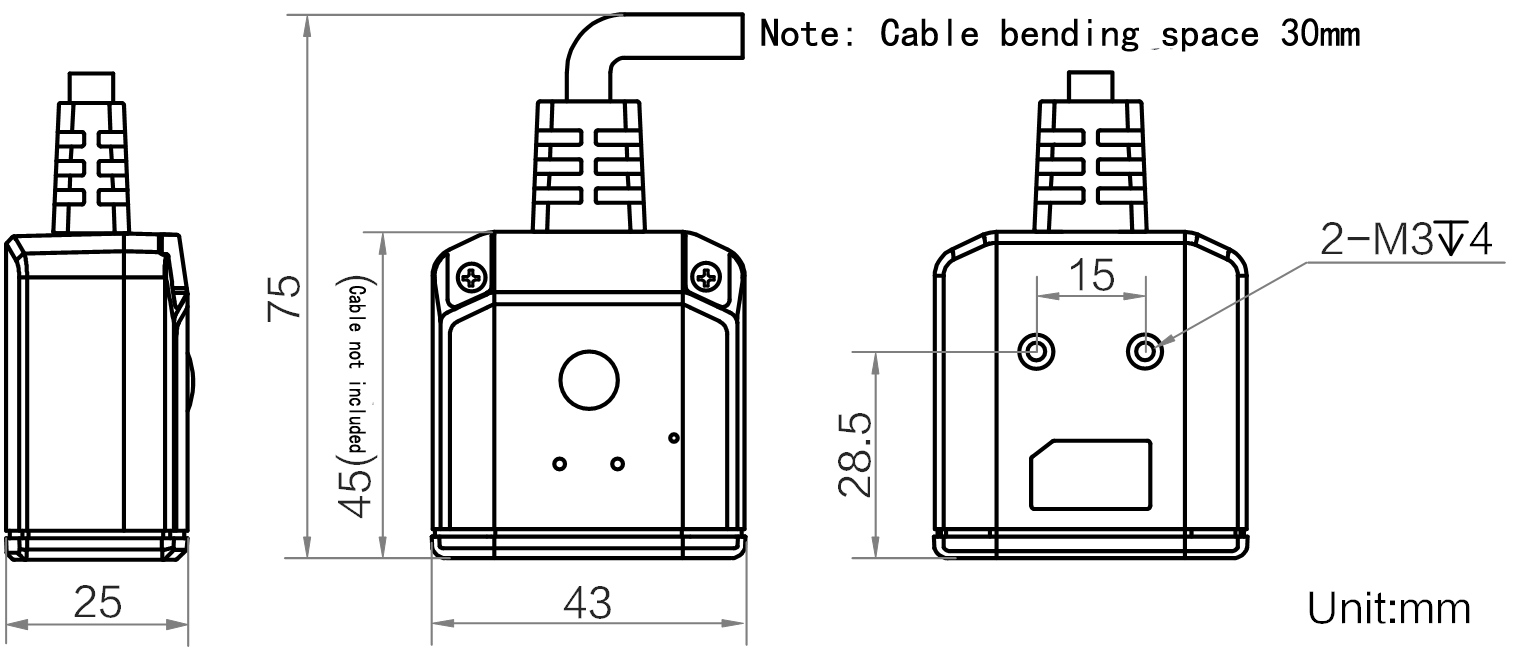

	Form factor	45 mm × 43 mm × 25 mm
	Weight	Approx. 68.5 g
	IP Protection Rating	IP54
	Temperature	Working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
	Humidity	20% ~ 95%RH non-condensing
General Specifications	Software	IDMVS
	Certification	CE，FCC，RoHS
