5 Megapixel Global Shutter Smart Reader
|
|
|
|
1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.
2D code: QR, DM, etc.
Stacking code: PDF417, etc.
|
Maximum processing frame rate
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SmartSDK，TCP Client，Serial，FTP，TCP Server，PROFINET，Ethernet/IP，MELSEC，Fins，ModBus，SLMP
|
Electrical characteristics
|
|
|
|
|
The 12-pin M12 connector provides power and I/O and includes 3 optocoupler isolated inputs (LineIn 0/1/2), 3 optocoupler isolated
outputs (LineOut 0/1/2), 1 RS-232 input, 1 RS-232 output
|
|
|
|
Maximum power consumption
|
60 W@24 VDC (with fill light enabled)
|
|
|
|
|
|
|
|
|
|
M12-Mount, mechanically focusable
|
|
|
Semi-polarized lens hoods with optional clear and fully polarized lens hoods
|
|
|
Semi-polarized white light source, optional red light, blue light or infrared light
|
|
|
Power indicator PWR, network indicator LNK/ACT, user indicator U1/U2
|
|
|

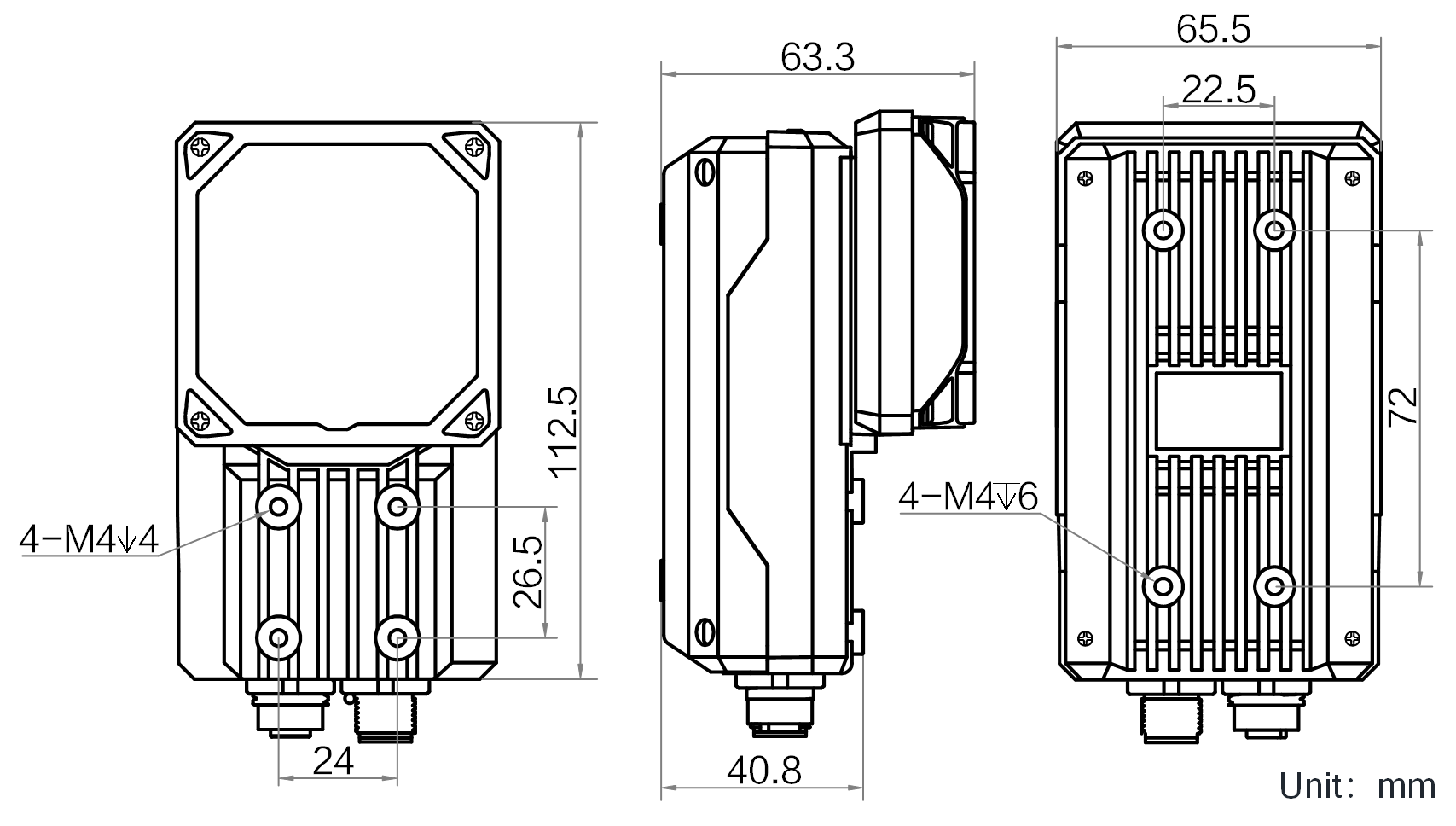

112.5 mm × 65.5 mm × 63.3 mm
|
|
|
|
|
|
IP67 (with proper lens waterproof cover installed)
|
|
|
Operating temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
|
|
|
20% ~ 95%RH non-condensing
|
|
|
|
|
|
|
|
