Model

Model Number

MV-IDB007X-CN

Name

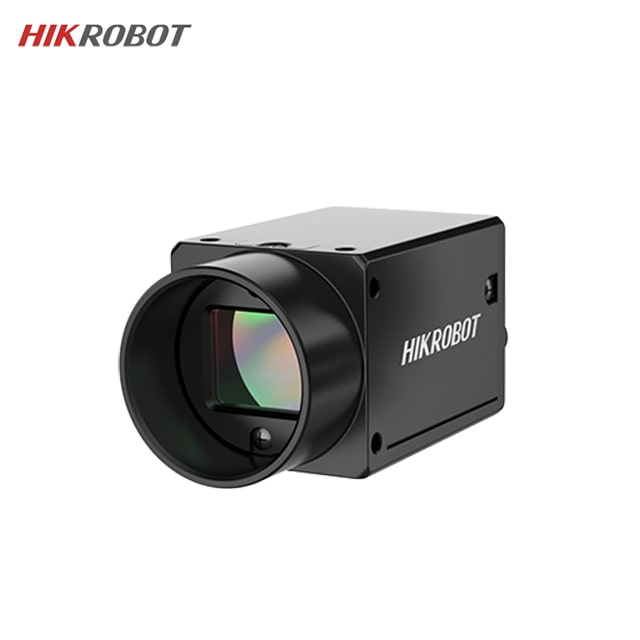

1.6MP C-Mount very small code reader

Performance

Bar code categories

1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.

2D code: QR Code, Data Matrix, etc.

Maximum processing frame rate

60 fps

Max. reading speed

45 codes/second

Sensor type

CMOS, global Shutter

Image element size

3.45 µm × 3.45 µm

Target surface size

1/2.9”

Resolution

1408 × 1024

Exposure time

16 μs ~ 1 sec

Gain

0 ~ 15 dB

Black and white/color

black and white

Communication protocols

SmartSDK，TCP Client，Serial，FTP，TCP Server，Profinet，Melsec/SLMP，Ethernet/IP，ModBus TCP，UDP，Fins

Electrical characteristics

Data interface

Fast Ethernet（100 Mbit/s）

Digital I/O

17-pin M12 interface provides power and I/O: includes 4 non isolated bidirectional I/O (default configuration is 2 inputs and 2
outputs), and 1 RS-232 supports triggering devices through side buttons

Power supply

12 ~ 24 VDC

Maximum power consumption

6 W@12 VDC

Lens mount

C-Mount

Indicator light

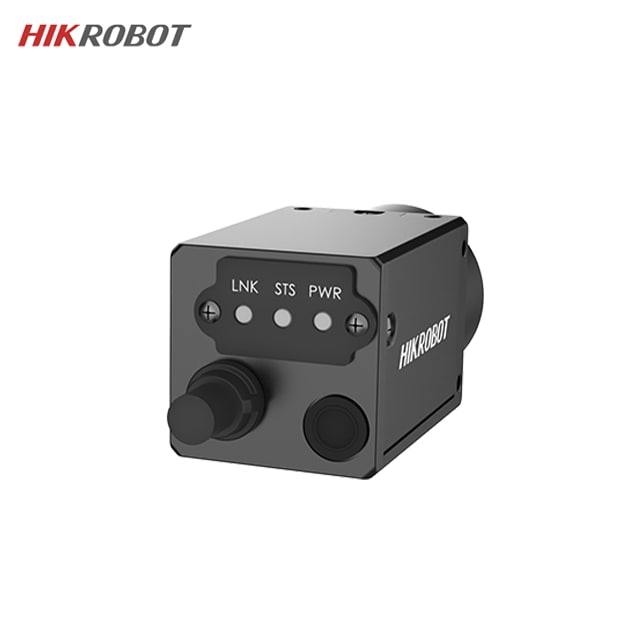

Power indicator light PWR, network indicator light LNK, status indicator light STS

Structure

Form factor

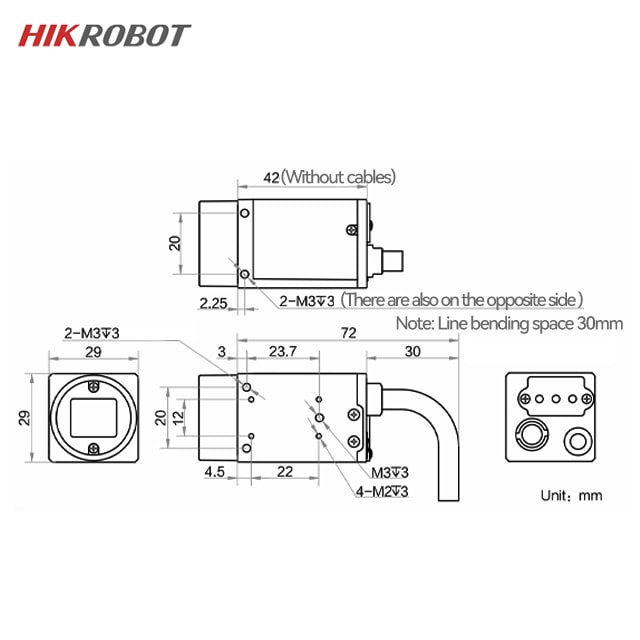

29 mm × 29 mm × 42 mm

Weight

Approx. 140 g

IP Protection Rating

IP40

Temperature

Working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃

Humidity

20% ~ 95%RH non-condensing

General Specifications

Software

IDMVS

Certification

CE，RoHS，KC
