HIKROBOT MV-DB500S-C Single DOE Scattered Structured Light Industrial Stereo Camera for Machine Vision
Product details
|
Model Number |
Model |
MV-DB500S |
|
Name |
Single DOE scattered structured light stereo camera (standard) |
|
|
Performance |
Near field of view |
580 mm × 470 mm |
|
Far field of view |
2400 mm × 1800 mm |
|
|
Clearance distance(CD) |
500 mm |
|
|
Measuring range (MR) |
1500 mm |
|
|
Depth map detection accuracy |
X，Y：5 mm@1 m；10 mm@2 m |
|
|
Color map detection accuracy |
X，Y：2.6 mm@1 m；5.5 mm@ 2 m |
|
|
Scanning frame rate |
RGB-Depth simultaneous output. 18 fps@1408 × 1024 30 fps@704 × 512 |
|
|
Data type |
Original map (black and white + color), corrected map (left and right), depth map |
|
|
Laser safety level |
Class 1 |
|
|
Electrical Characteristics |
Data interface |
GigE |
|
Digital I/O |
12-pin M12 connector provides power and I/O, 3 optically isolated inputs (Line 0/3/6), 3 optically isolated outputs (Line 1/4/7) |
|
|
Power supply |
12~24 VDC |
|
|
Typical power consumption |
9 W@24 VDC |
|
|
Structure |

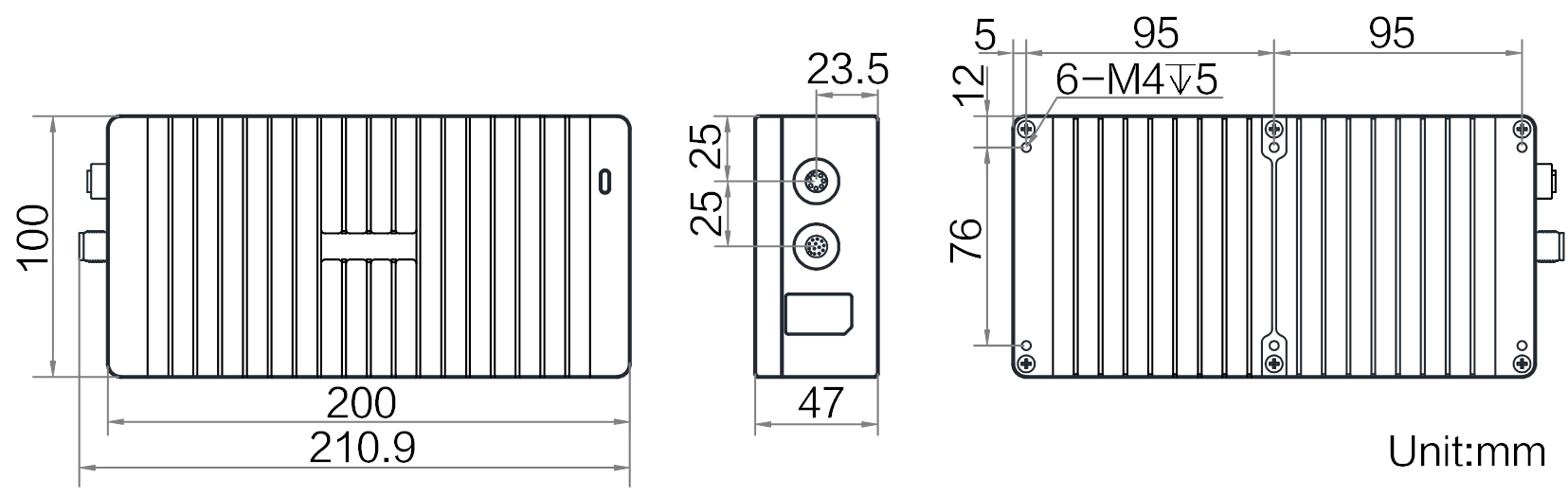

Dimensions |
200 mm × 47 mm × 100 mm |
|
Weight |
approx. 1 kg |
|
|
IP protection level |
IP65 |
|
|
Temperature |
working temperature 0~45℃, storage temperature -30~80℃ |
|
|
Humidity |
20%~85%RH without condensation |
|
|
General Specifications |
Software |
3DMVS |
|
Operating system |
Windows 7/10 32/64bits |
|
|
Certification |
CE, FCC, RoHS |
