HIKROBOT MV-CU050-60UM 1/2.5” 48.2 fps 2592*1944 5MP USB3.0 Roller shutter Machine Vision Industrial Camera

Product details

Model
Product Model
MV-CU050-60UM
Type
5MP Area Scan Camera, USB3
Performance
Sensor size
1/1.7″
Pixel size
2.2 μm × 2.2
Reverse image
Supports horizontal and vertical reverse image output
Resolution
2592 × 1944
Sensor type
CMOS, rolling shutter
Binning
Supports 1 × 1, 2 × 2
Exposure time
12 μs to 1.25 sec
Mono/color
Mono
SNR
40.7 dB
Dynamic range
65.4 dB
Max. frame rate
48.2 fps @2592 × 1944 Mono 8
Sensor model
HK
Decimation
Supports 1 × 1, 2 × 2, 4 × 4
Pixel format
Mono 8/10/10Packed/12/12Packed
Gain
0 dB to 24 dB
Exposure mode
Off/Once/Continuous exposure mode, supports Global Reset, Rolling, and Trigger Rolling.
Electrical feature
Power consumption
Typ. 2.7 W@5 VDC (USB3.0 provides power supply)
Digital I/O
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1),
bi-directional non-isolated I/O × 1 (Line 2).
Power supply
9 VDC to 24 VDC, supports USB3.0 power supply
Data interface
USB3.0
Mechanical
Ingress protectione
IP40 (under proper lens installation and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Lens mount
C-mount
Weight
Approx. 76 g (0.2 lb.)
Humidity
20% to 80% RH, non-condensing

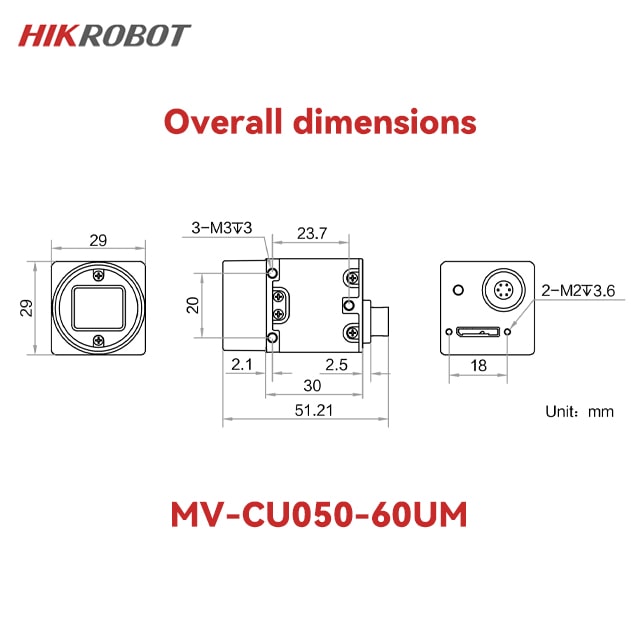

Dimension
29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
General
Client software
MVS or third-party software meeting with USB3 Vision Protocol
Compatibility
USB3 Vision, GenlCam
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Certification
CE, RoHS, KC
