HIKROBOT MV-CU050-60GM(NPOE) 1/2.5″ 5MP 23.1fps Rolling Mono Machine Vision Industrial Area Scan Camera

HIKROBOT MV-CU050-60GM(NPOE) 1/2.5″ 5MP 23.1fps Rolling Mono Machine Vision Industrial Area Scan Camera

Product details

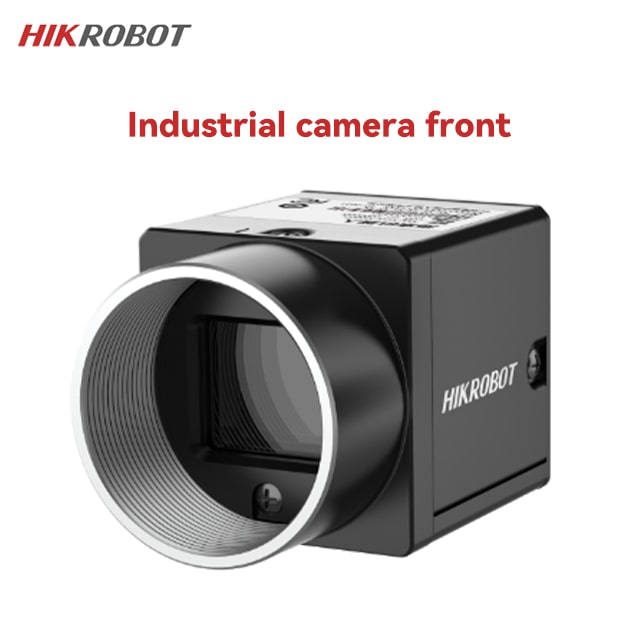

Mechanical	Lens mount	C-mount

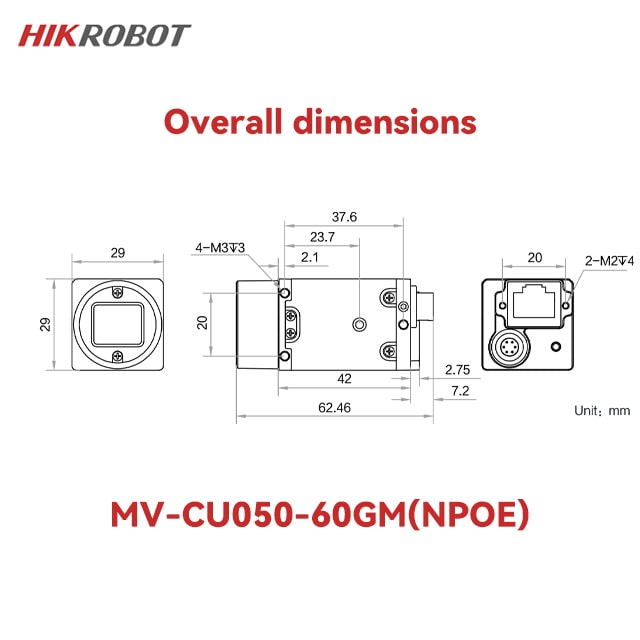

	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
Model	Product Model	MV-CU050-60GM(NPOE)
Model	Type	5MP Area Scan Camera, GigE without PoE
Performance	Sensor type	CMOS, rolling shutter
	Pixel size	2.2 μm × 2.2 μm
	Sensor size	1/2.5″
	Resolution	2592 × 1944
	Max. frame rate	23.1 fps @2592 × 1944 Mono 8
	Dynamic range	70.2 dB
	SNR	40.8 dB
	Gain	0 dB to 24 dB
	Exposure time	24 μs to 2.5 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
Electrical feature	Data interface	GigE

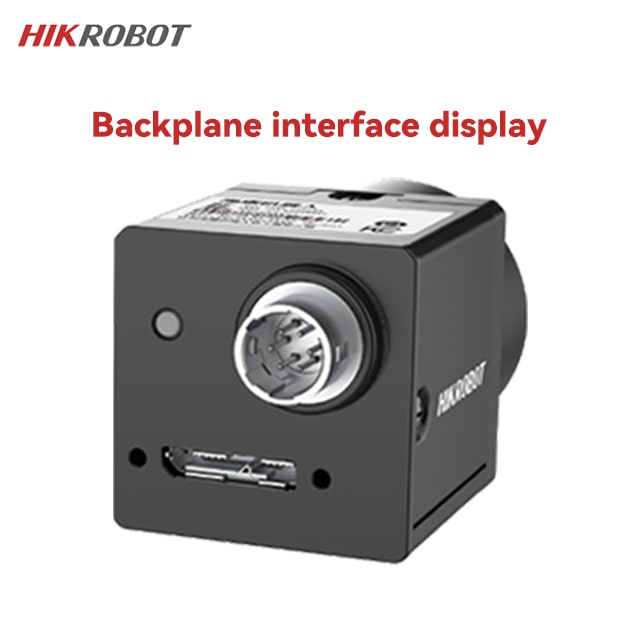

	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 2.5 W@12 VDC
