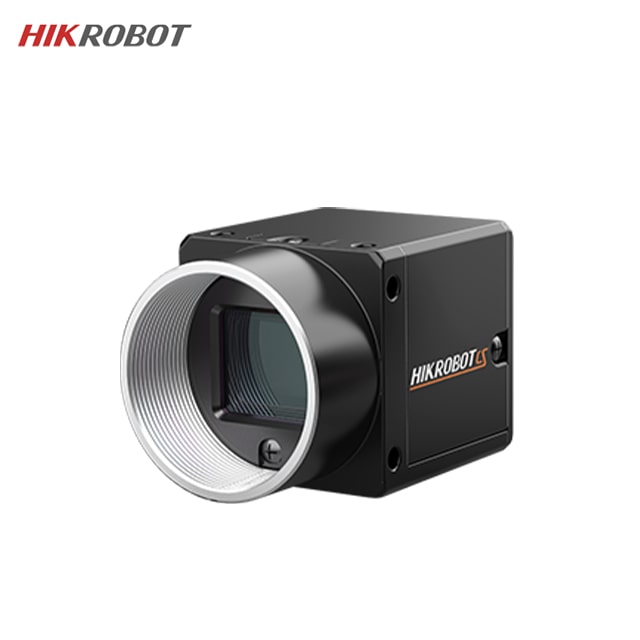

HIKROBOT MV-CS020-10UM 2MP USB3.0 1/1.7″ 2MP 90fps Global Mono Machine Vision Industrial Area Scan Camera

Product details

Mechanical
Lens mount
C-mount
Dimension
29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
Weight
Approx. 80 g (0.18 lb.)
Ingress protection
IP40 (under proper lens installation and wiring)
Temperature
Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 95% RH, non-condensing
Model
Product Model
MV-CS020-10UM
Type
2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Mono
Performance
Sensor type
CMOS, global shutter
Pixel size
4.5 μm × 4.5 μm
Sensor size
1/1.7″
Resolution
1624 × 1240
Max. frame rate
90 fps @1624 × 1240 Mono 8
Dynamic range
71.5 dB
SNR
43.7 dB
Gain
0 dB to 24 dB
Exposure time
UltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 6 μs to 10 sec
Exposure mode
Off/Once/Continuous exposure mode
Mono/color
Mono
Pixel format
Mono 8/10/10Packed/12/12Packed
Binning
Supports 1 × 1, 2 × 2
Decimation
Supports 1 × 1, 2 × 2
Reverse image
Supports horizontal and vertical reverse image output
General
Client software
MVS or third-party software meeting with USB3.0 Vision Protocol
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility
USB3 Vision, GenlCam
Certification
CE, RoHS, KC
Electrical feature
Data interface
USB3.0
Digital I/O
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1),
bi-directional non-isolated I/O × 1 (Line 2).
Power supply
9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption
Typ. 2.3 W@5 VDC (USB3.0 provides power supply)
