HIKROBOT MV-CL086-91GC 8192*6 8K CMOS 5-14KHZ Color GigE Line Scan Cameras for Industrial

Product details

Model Number
Model
MV-CL086-91GC
Name
8k mesh port line array, color
Performance
Sensor type
CMOS
Image size
5 µm
Resolution
8192 × 6
Imaging modes
1-Line/2-TDI supported
Maximum line frequency
Conventional: 14 kHz@Bayer 8/ Mono 8, 7 kHz@Bayer 10/Mono 10, 4.7 kHz@RGB 8/BGR 8
Lossless compression on: 40 kHz@Bayer 8, 20
kHz@Bayer 10, 14 kHz@RGB 8
Dynamic range
54.8 dB
Signal-to-noise ratio
40.3 dB
Gain
1.2×, 2.7×, 4.6× supported
Exposure time
3 μs ~ 10 ms
Shutter mode
support for automatic exposure, manual exposure, a key exposure, pulse control exposure
Black and white/color
color
Pixel Format
Mono 8/10
Bayer RG 8/10
RGB8，BGR8
Binning
Not supported
Mirroring
Support horizontal mirroring
Trigger mode
external trigger, internal trigger
External trigger mode
line trigger, frame trigger, line+frame trigger
Electrical Characteristics
Data interface
GigE
Digital I/O
12-pin P10 connector provides power supply and I/O: 4 configurable inputs/outputs (Line 0/1/3/4), supports
single-ended/differential
Power supply
12~24V DC
Typical power consumption
13.0 W@12V DC
Structure
Lens interface
M72*0.75, flange back focus 12 mm

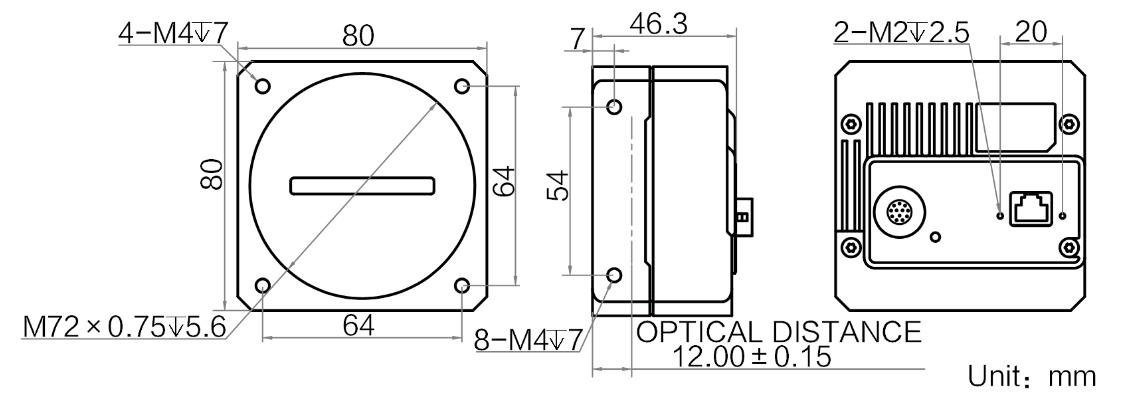

Dimensions
80 mm × 80 mm × 46.3 mm
Weight
Approx. 465 g
IP protection level
IP40 (with the lens and cable properly installed)
Temperature
working temperature -20~55℃, storage temperature -30~80℃
Humidity
5%~90%RH non-condensing
General specifications
Software
MVS or third-party software supporting GigE Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocols/Standards
GigE Vision V2.0, GenICam
Certifications
CE, FCC, RoHS, KC
