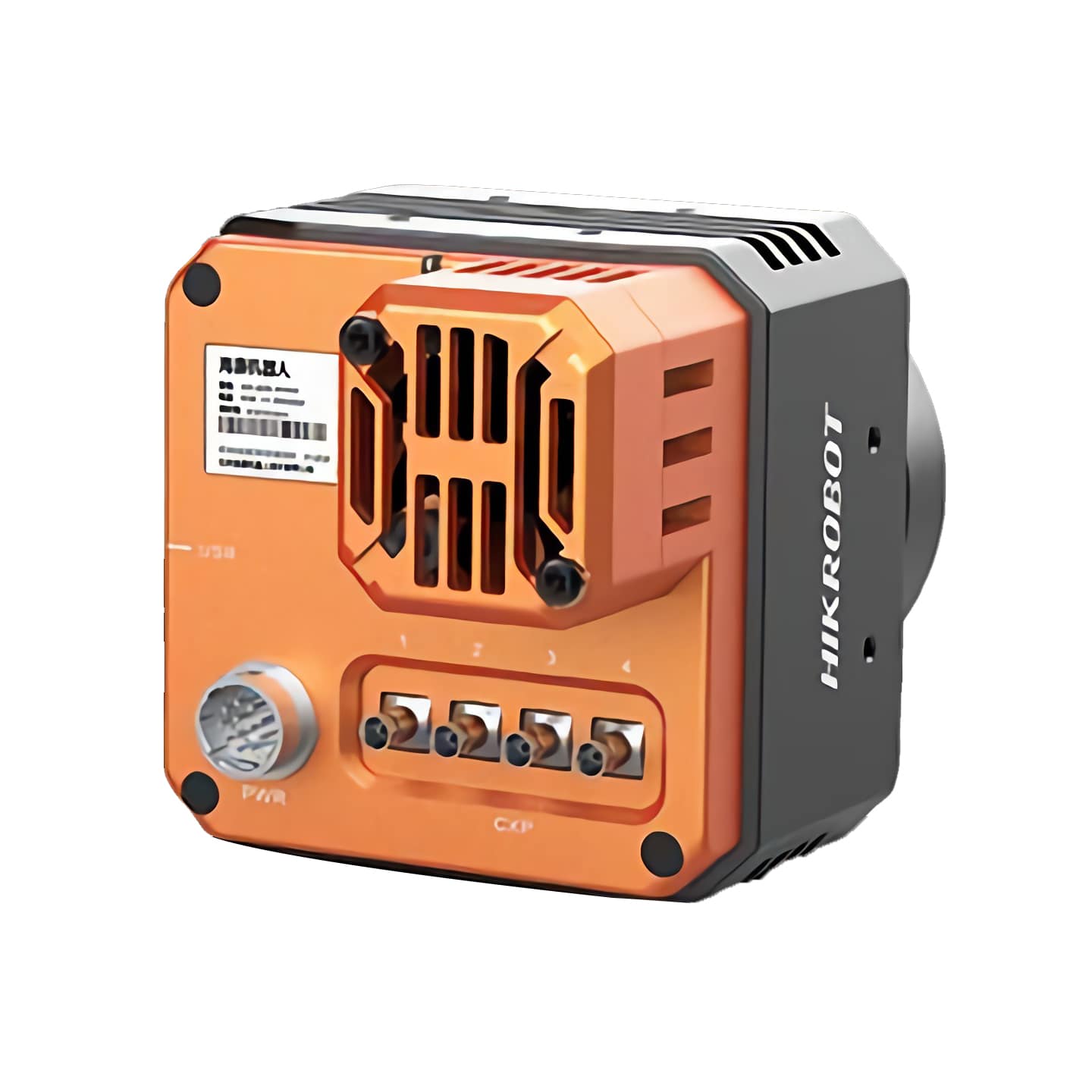

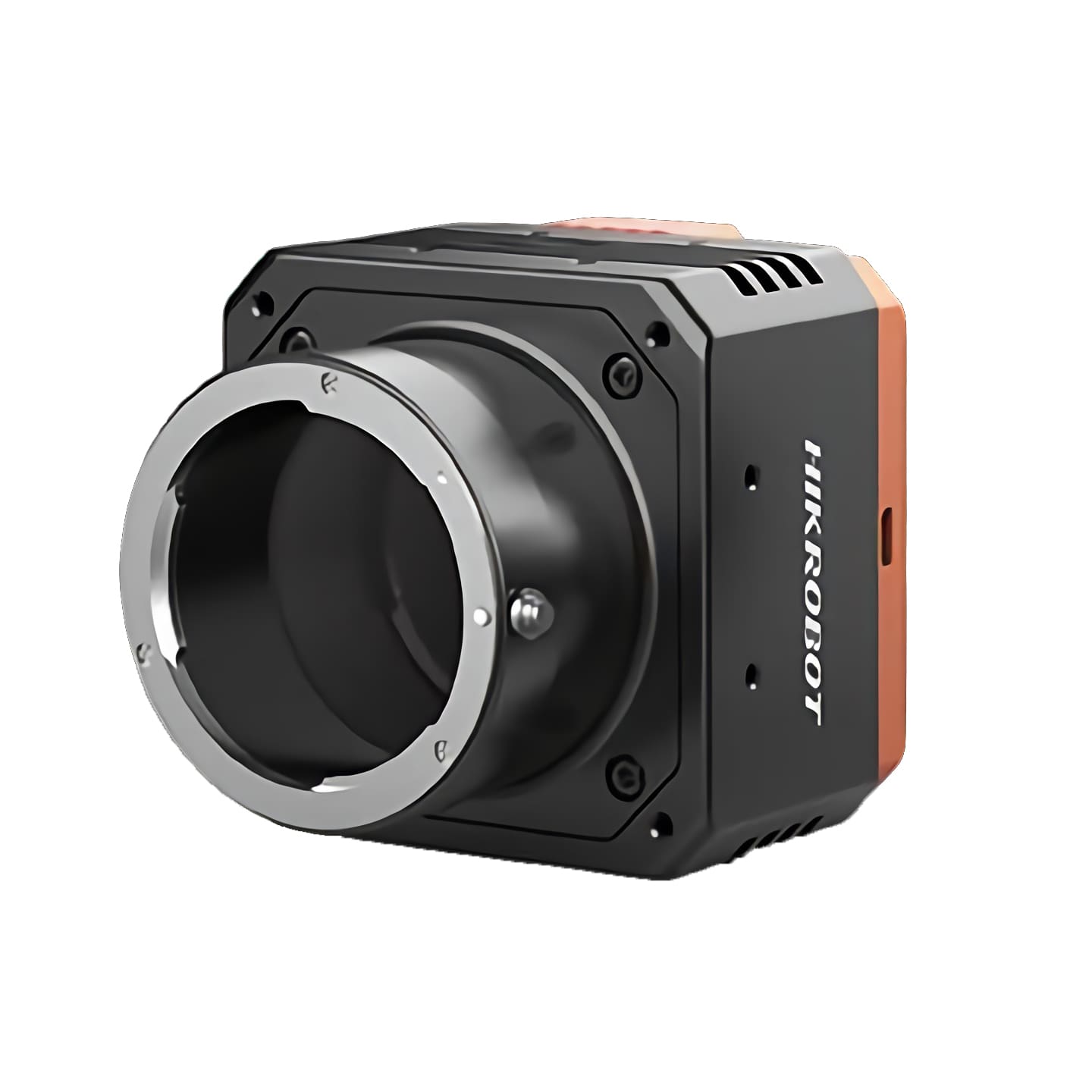

HIKROBOT MV-CH650-90XM-F-NF GMAX3265 65MP 71fps F-Mount Mono CoaXPress Industrial Area Scan Camera

Product details

Model Number
Model
MV-CH650-90XM-F-NF
Name
65 Megapixel CoaXPress Front Panel Camera, GMAX3265, B&W, F-port, with fan
Performance
Sensor type
CMOS, global shutter
Sensor model
GMAX3265
Image element size
3.2 µm × 3.2 µm
Target surface size
29.9 mm × 22.4 mm
Resolution
9344 × 7000
Maximum frame rate
31.5 fps @ 9216 × 7000
Dynamic range
66 dB
Signal-to-noise ratio
40 dB
Gain
1.25x ~ 6x
Exposure time
14 μs ~ 10 sec
Shutter mode
support automatic exposure, manual exposure, one-touch exposure mode
Black and white/color
black and white
Pixel format
Mono 8/10/12
Binning
Support 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Downsampling
Not supported
Mirroring
support horizontal mirroring, vertical mirroring output
Electrical characteristics
Data interface
CoaXPress
Digital I/O
12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line 0), 1 optocoupler isolated output
(Line 1), 1 bi-directional configurable non-isolated I/O (Line 2), 1 RS-232
Power supply
9~24 VDC
Typical power consumption
10.5 W @24 VDC
Construction
Lens interface
F-port, flange back focus 46.5 mm

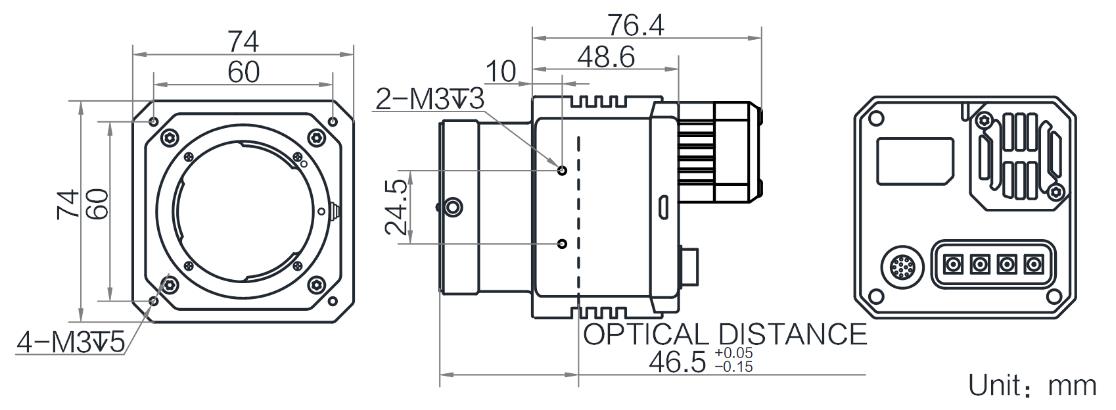

Dimensions
74 mm × 74 mm × 76.4 mm
Weight
approx. 500 g
IP protection class
IP40 (with the lens and cable properly installed)
Temperature
working temperature 0℃ ~ 50℃, storage temperature -30℃ ~ 70℃
Humidity
20% ~ 95%RH non-condensing
General Specifications
Software
capture card control software in line with CoaXPress protocol
Operating system
Windows 7/10 64bits (8 GB or more memory)
Protocol/standard
CoaXPress, GenICam
Certification
CE, FCC, RoHS, KC
