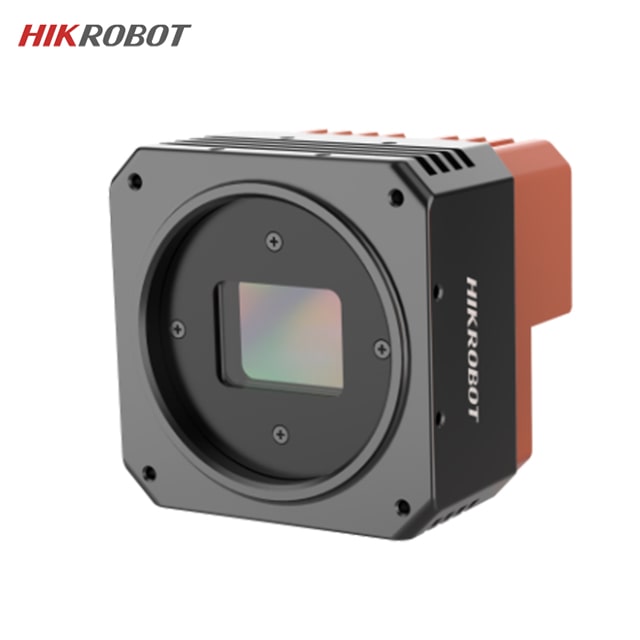

31MP Area Scan Camera, 10GigE, IMX342, Color, M58-mount, fanless
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17.2 fps @6464 × 4852 Bayer RG 8
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off/Once/Continuous exposure mod
|
|
|
|
|
|
Mono 8/10/12
Bayer RG 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed
RGB 8，BGR 8
|
|
|
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
support horizontal mirroring, vertical mirroring
|
Electrical Characteristics
|
|
|
|
|

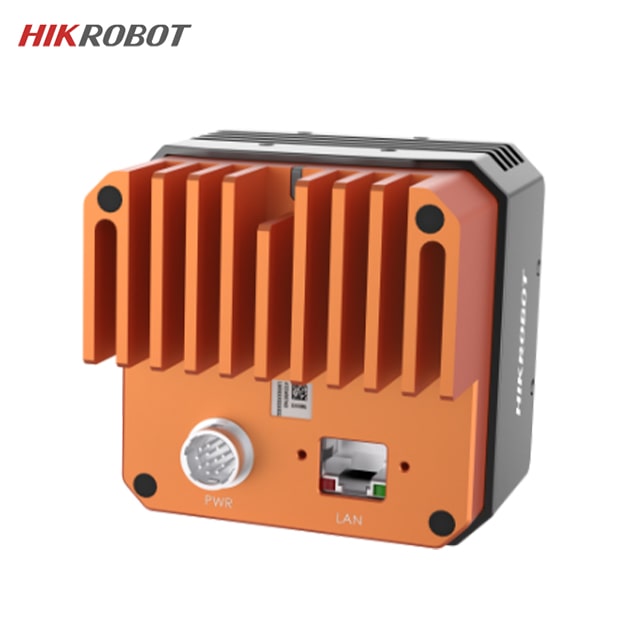

12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1),
bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
|
|
|
|
Typical power consumption
|
|
|
|
|
M58*0.75, flange back focal length 11.48 mm (0.5″)
|
|
|
74 mm × 74 mm × 64.4 mm (2.9″ × 2.9″ × 2.5″)
|
|
|
|
|
|
IP40 ( under proper lens installation and wiring)
|
|
|
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
|
|
|
20% ~ 95%RH without condensation
|
|
|
|
MVS or third-party software meeting with GigE Vision Protocol
|
|
|
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
|
|
|
GigE Vision V2.0, GenICam
|
|
|
|
