Model Number

Model

MV-CH250-21GC-F-NF

Name

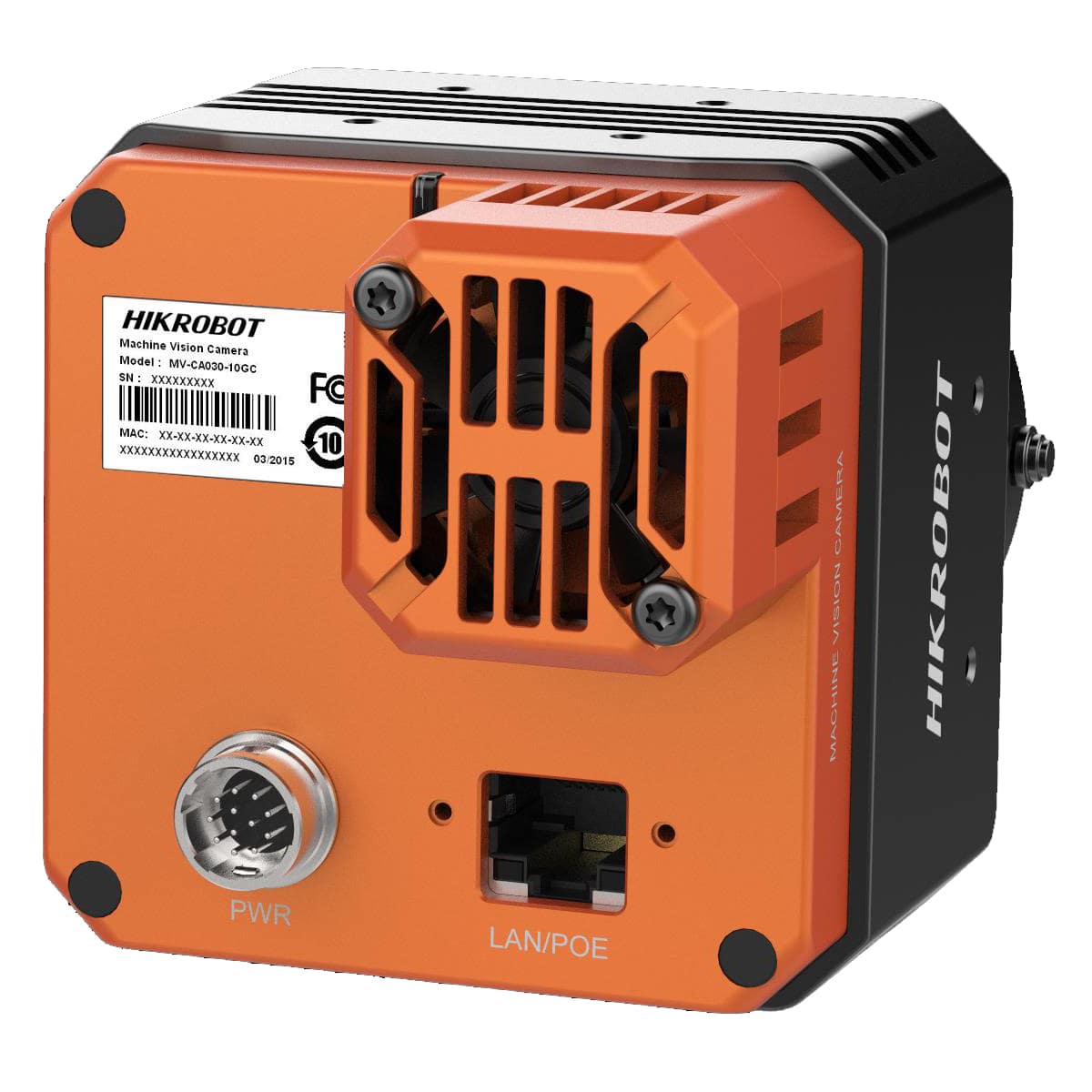

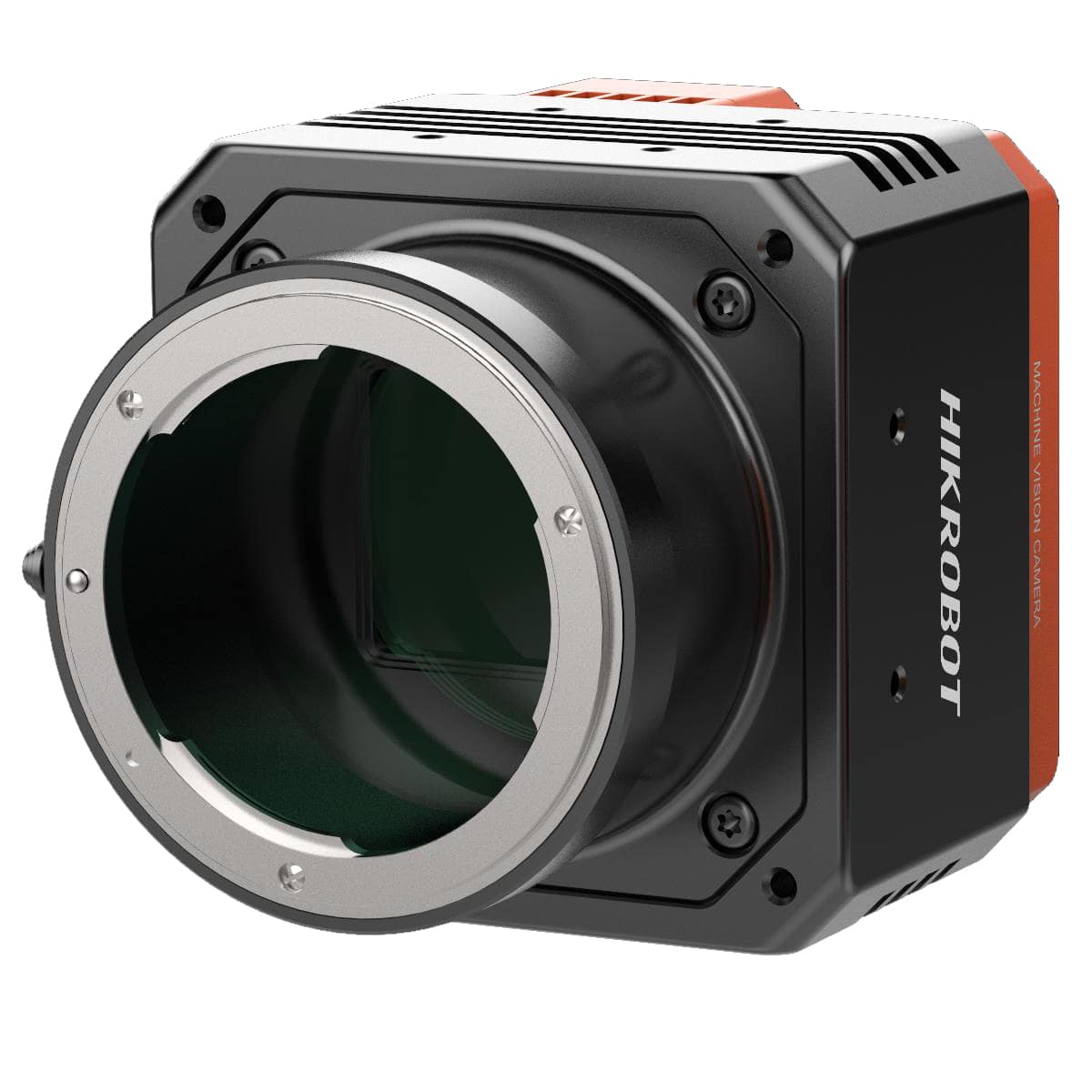

25 million pixel network port area scan camera, PYTHON25K, color, F port, with fan

Performance

Sensor Type

CMOS, Global Shutter

Sensor model

PYTHON25K

Pixel size

4.5 µm × 4.5 µm

Target surface size

23 mm × 23 mm

Resolution

5120 × 5120

Maximum frame rate

4.64 fps @5120 × 5120

Dynamic range

58 dB

Signal-to-noise ratio

41 dB

Gain

0 dB ~ 15 dB

Exposure time

80 μs ~ 10 sec

Shutter mode

support automatic exposure, manual exposure, one-key exposure mode

Monochrome/Color

Color

Pixel format

Mono 8/10/12

Bayer RG 8/10/10Packed/12/12Packed

YUV422Packed, YUV422_YUYV_Packed

Binning

not supported

Downsampling

1 × 1, 2 × 2 supported

Mirroring

support horizontal mirroring, vertical mirroring

Electrical Characteristics

Data Interface

GigE

Digital I/O

12-pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2) , RS232 1 road, full duplex RS485 1 road

Power supply

12 VDC

Typical power consumption

7.8 W@12 VDC

Structure

Lens mount

F mount, flange back focus 46.5 mm

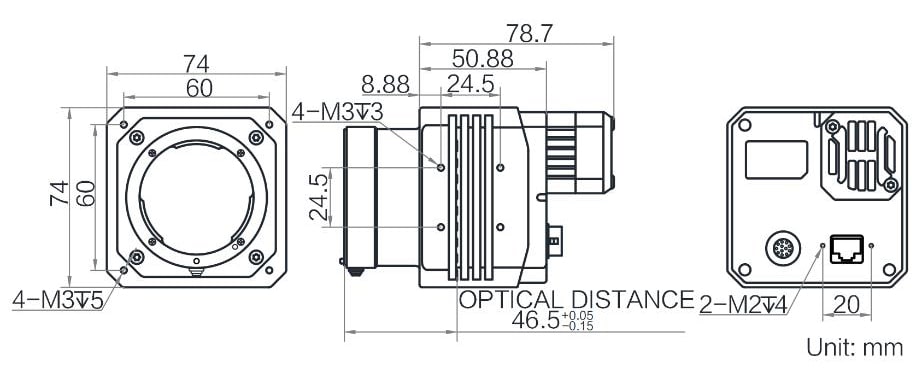

Dimensions

74 mm × 74 mm × 78.7 mm

Weight

about 600 g

IP protection grade

IP40 (when the lens and cable are installed correctly)

Temperature

working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃

Humidity

20% ~ 95%RH without condensation

General Specifications

Software

MVS or 3rd party software supporting GigE Vision protocol

Operating System

Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits

Protocol/Standard

GigE Vision V2.0, GenICam

Certification

CE, FCC, RoHS, KC
