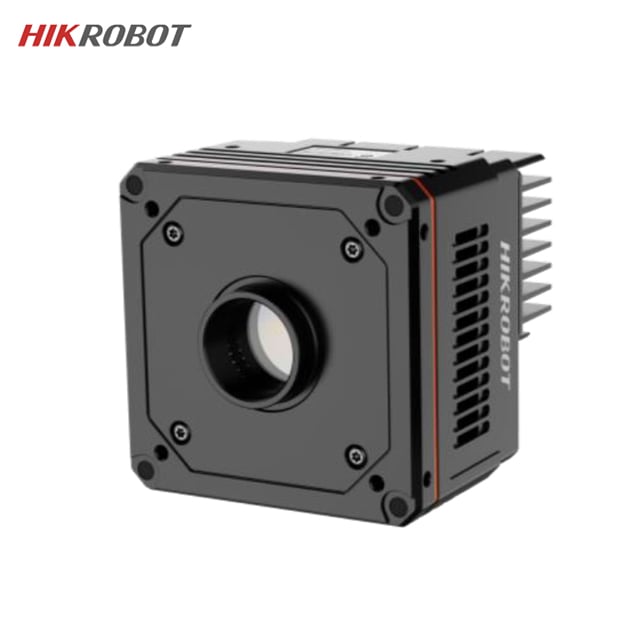

HIKROBOT MV-CH240-10TM-M58S-NN IMX540 24MP 35.1fps M58-Mount Mono Fanless 10 Gigabit Network Machine Vision Camera

Product details

Model Number
Model
MV-CH240-10TM-M58S-NN
Name
24 MP 10 Gigabit Ethernet port area array camera, IMX540, black and white, M58 port, fanless
Performance
Sensor type
CMOS, Global Shutter
Sensor model
IMX540
Image element size
2.74 μm × 2.74 μm
Sensor size
1.2″
Resolution
5328 × 4600
Maximum frame rate
35.1 fps @5328 × 4600
Dynamic range
71 dB
Signal-to-noise ratio
40 dB
Gain
0 dB to 24 dB
Exposure time
UltraShort exposure mode: 1 μs to 7 μs Standard exposure mode: 8 μs to 10 sec
Exposure mode
Off/Once/Continuous exposure mode
Black and white/color
Black and white
Pixel format
Mono 8/10/10Packed/12/12Packed
Binning
Supports 1 × 1, 2 × 2
Downsampling
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Mirror
Supports horizontal and vertical reverse image output
Electrical characteristics
Data interface
10GigE

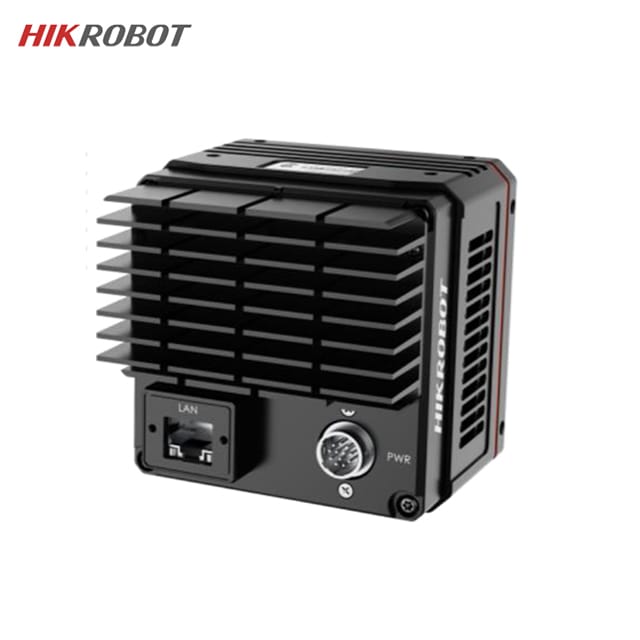

Digital I/O
12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1),
bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply
9 VDC to 24 VDC
Typical power consumption
Typ. 10 W@12 VDC
Structure
Lens interface
M58

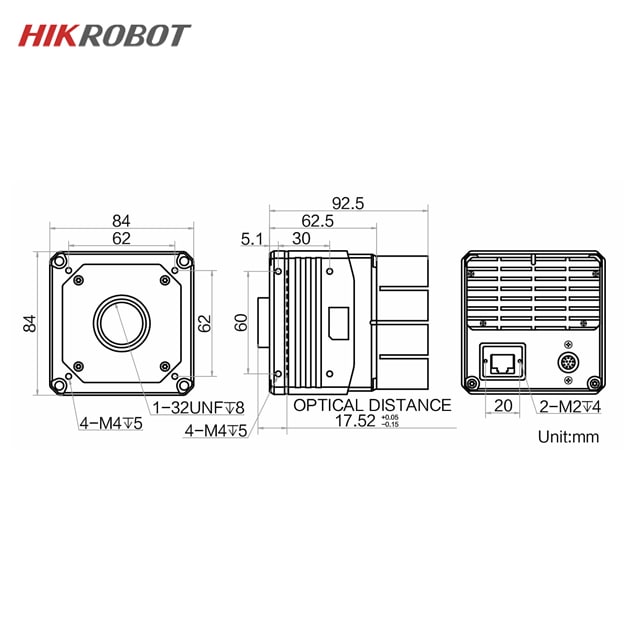

External dimensions
84 mm × 84 mm × 62.5 mm (3.3″ × 3.3″ × 2.5″)
Weight
< 600 g (1.3 lb)
IP rating
IP40 (under proper lens installation and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% ~ 95% RH non-condensing
General Specifications
Software
MVS or third-party software meeting with GigE Vision Protocol
Operating system
Windows XP/7/10/11 32/64bits
Compatibility
GigE Vision V1.2，GenICam
Certifications
CE, RoHS, KC
