HIKROBOT MV-CH120-20UC 12MP CMOS 28fps 1″ Global Shutter Color Industrial Camera USB3.0 for Machine Vision

کیفیت اورجینال

پرداخت ایمن

HIKROBOT MV-CH120-20UC 12MP CMOS 28fps 1″ Global Shutter Color Industrial Camera USB3.0 for Machine Vision

Product details

Model Number	Model	MV-CH120-20UC
Model Number	Name	12MP Area Scan Camera, USB3, XGS12000, Color, V4
Performance	Sensor Type	CMOS, Global Shutter
	Sensor model	XGS12000
	Pixel size	3.2 µm × 3.2 µm
	Target surface size	1″
	Resolution	4096 × 3072
	Maximum frame rate	28 fps @4096 × 3072
	Dynamic range	68 dB
	Signal-to-noise ratio	40 dB
	Gain	0 dB ~ 18 dB
	Exposure time	UltraShort exposure mode: 10 μs to 56 μs Standard exposure mode: 57 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Black & White/Color	Color
	Pixel Format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Downsampling	Supports 1 × 1, 2 × 2
	Mirroring	support horizontal mirroring, vertical mirroring output
Electrical Characteristics	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 ~ 24 VDC, support USB power supply
	Typical power consumption	Typ. 3.2 W@5 VDC (USB3.0 provides power supply)
Structure	Lens mount	C-Mount

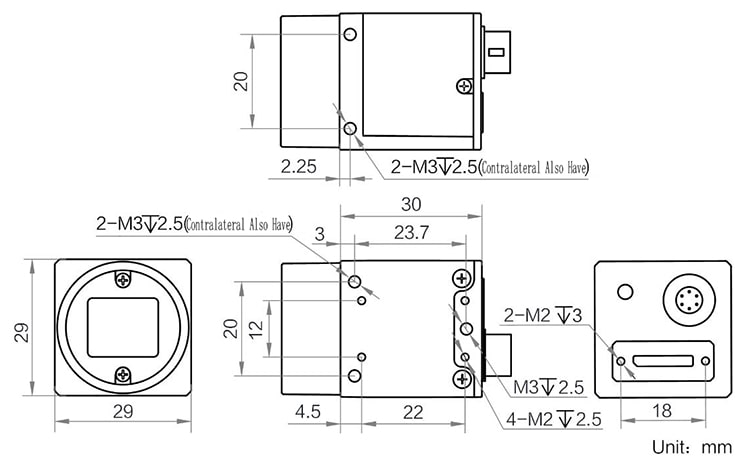

	Dimensions	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 80 g (0.18 lb.)
	IP protection grade	IP40 (when the lens and cable are installed correctly)
	Temperature	working temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
	Humidity	20% ~ 95%RH without condensation
General Specifications	Software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating System	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Protocol/Standard	USB3 Vision, GenICam
	Certification	CE, RoHS, KC
