HIKROBOT MV-CH120-10UM(EoL) Global Shutter 23.1fps 1.1″ CMOS Color12MP USB3.0 Camera for Machine Vision

Product details

Model Number
Model
MV-CH120-10UM(EoL)
Name
12MP USB 3.0 area scan camera, IMX304, black and white
Performance
Sensor Type
CMOS, Global Shutter
Sensor model
IMX304
Pixel size
3.45 µm × 3.45 µm
Target surface size
1.1″
Resolution
4096×3000
Maximum frame rate
23.1 fps@4096×3000
Dynamic range
72.2 dB
Signal-to-noise ratio
40.2 dB
Gain
0 dB ~ 20 dB
Exposure time
Ultra-small exposure mode: 1 μs ~ 14 μs
Normal exposure mode: 15 μs ~ 10 sec
Exposure mode
Off/Once/Continuous exposure mode
Black and white/color
Mono
Pixel format
Mono 8/10/10p/12/12p
Binning
Support 1×1, 2×2, 4×4
Downsampling
Supports 1 × 1, 2 × 2, 4 × 4
Mirroring
support horizontal mirroring, vertical mirroring
Image buffer
128 MB
Electrical Characteristics
Data interface
USB3.0
Digital I/O
6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated IO (Line2)
Power supply
12 VDC, supports USB3.0 power supply
Typical power consumption
Typ. 3.5 W@5 VDC (USB3.0 provides power supply)
Structure
Lens mount
C-Mount

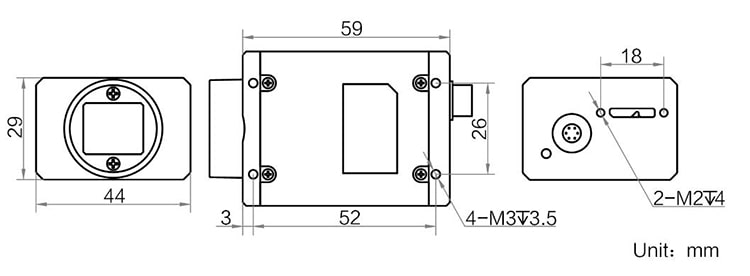

Dimensions
44 mm × 29 mm × 59 mm
Weight
about 100 g
IP protection grade
IP30 (when the lens and cable are installed correctly)
Temperature
working temperature 0~50℃, storage temperature -30~70℃
Humidity
20%~80% RH without condensation
General Specifications
Software
MVS or third-party software compatible with USB3 Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
USB3 Vision, GenlCam
Certification
CE, RoHS, KC
