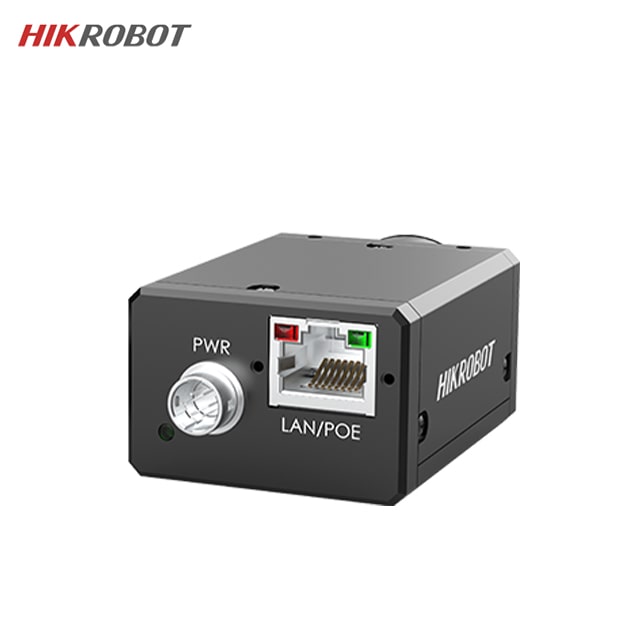

HIKROBOT MV-CH120-10GC(EoL) 1.1″ 12MP 9.4 fps GigE Global Color Machine Vision Industrial Area Scan Camera

کیفیت اورجینال

پرداخت ایمن

HIKROBOT MV-CH120-10GC(EoL) 1.1″ 12MP 9.4 fps GigE Global Color Machine Vision Industrial Area Scan Camera

Product details

Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″)
	Weight	Approx. 140 g (0.3 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
Model	Product Model	MV-CH120-10GC(EoL)
	Type	12MP Area Scan Camera, GigE,IMX304,Color
	Sensor model	IMX304
Performance	Sensor type	CMOS, global shutter
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1.1″
	Resolution	4096 × 3000
	Max. frame rate	9.4 fps @4096 × 3000
	Dynamic range	72.2 dB
	SNR	40.2 dB
	Gain	0 dB to 20 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μs Normal exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer GR 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
Electrical feature	Data interface	GigE
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 4.6 W@12 VDC
