Model Number

Model

MV-CH1010-10CM-M72-TF

Name

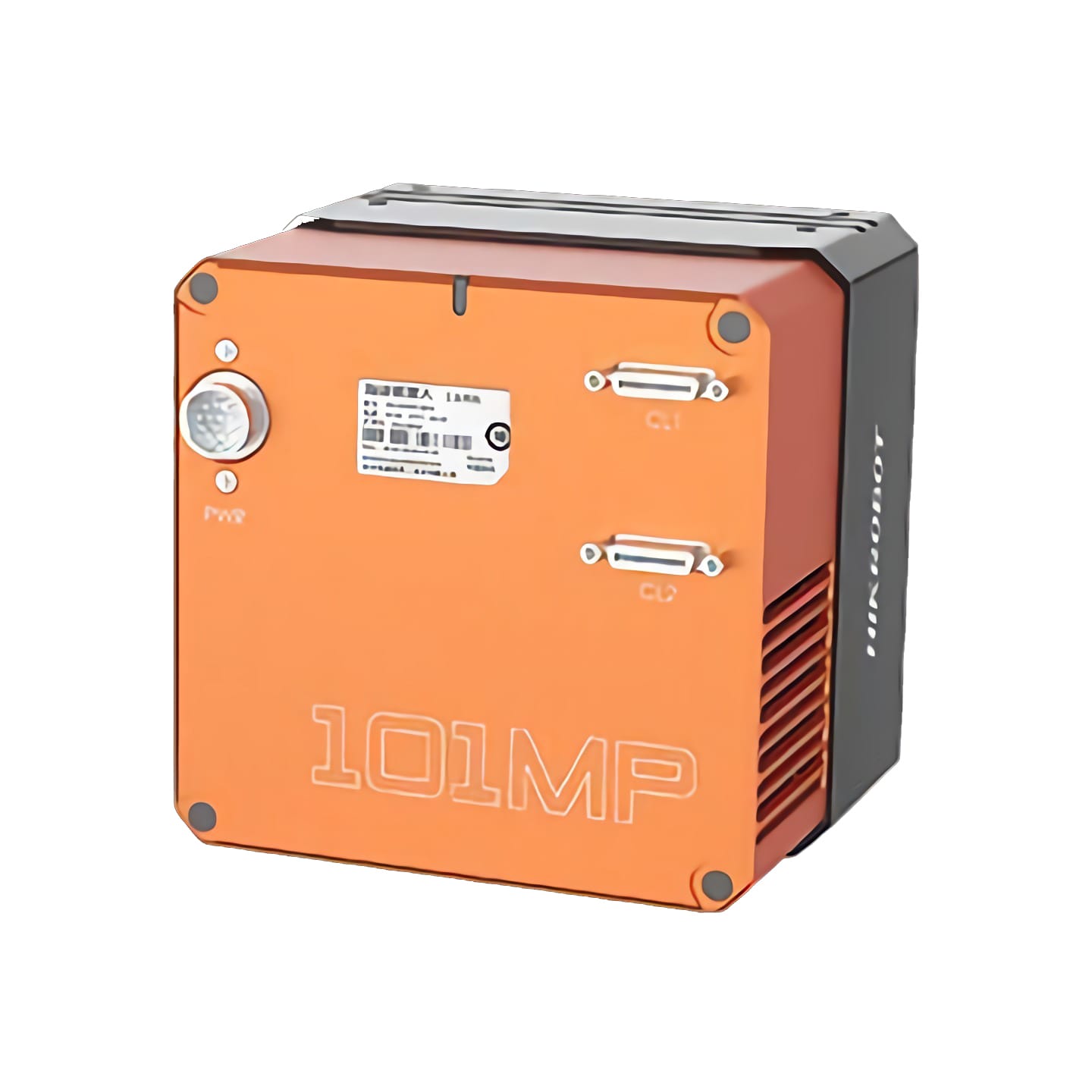

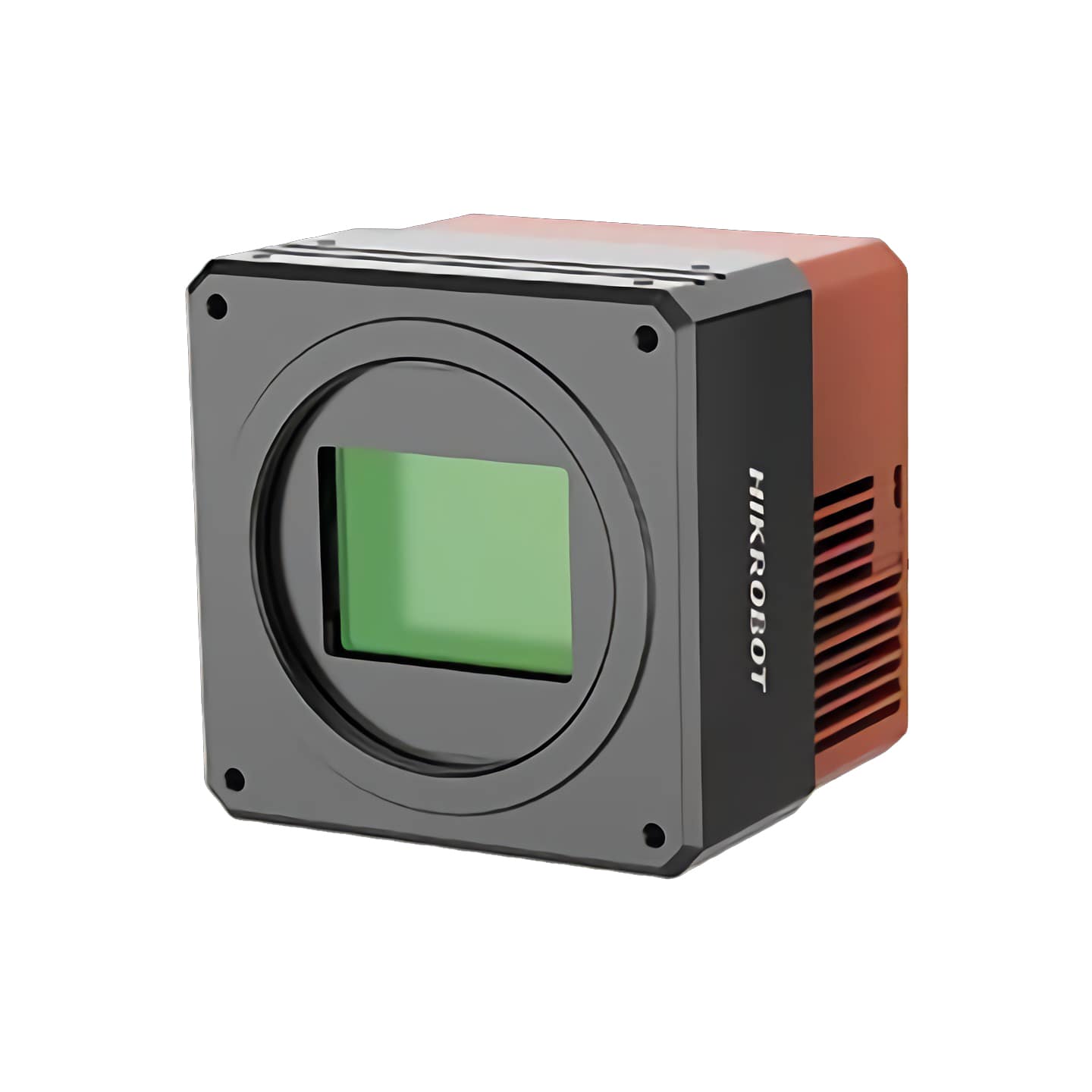

101 Megapixel Camera Link Front Panel Camera, IMX461, B/W, M72 Interface, TEC

Performance

Sensor type

CMOS, Rolling Shutter

Sensor model

IMX461

Image size

3.76 μm × 3.76 μm

Target surface size

55 mm

Resolution

11648 × 8740

Maximum frame rate

8.1 fps @11648 × 8740

Configuration modes

Base, Medium, Full, 80-bit

Channel mode

2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y

Number of channels

2/4/8/10 Taps

Pixel clock

85 MHz, 70 MHz, 60 MHz, 40 MHz

Dynamic range

78 dB

Signal-to-noise ratio

45 dB

Gain

0 dB ~ 36 dB

Exposure time

14 μs ~ 10 sec

Shutter mode

Support auto exposure, manual exposure, one-touch exposure mode, support Global Reset mode

Black and white/color

black and white

Pixel format

ADC 12bit mode: Mono 8/10/12 ADC

16bit mode: Mono 8/10/12/16

Binning

Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4

Downsampling

Support 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4

Mirroring

Supports horizontal mirroring

Electrical characteristics

Data interface

Camera Link

Digital I/O

12-pin P10 connector provides power supply and I/O: 1 optically isolated input (Line0), 1 optically isolated output
(Line1), 1 bi-directional configurable non-isolated IO (Line2), 1 RS-232; Camera Link interface provides IO (CC1/CC2/CC3/CC4)

Power supply

24 VDC

Typical power consumption

Non-cooled mode: 14 W@24 VDC

Cooling mode: 48 W@24 VDC

Construction

Lens interface

M72*0.75, flange back focus 19.55 mm

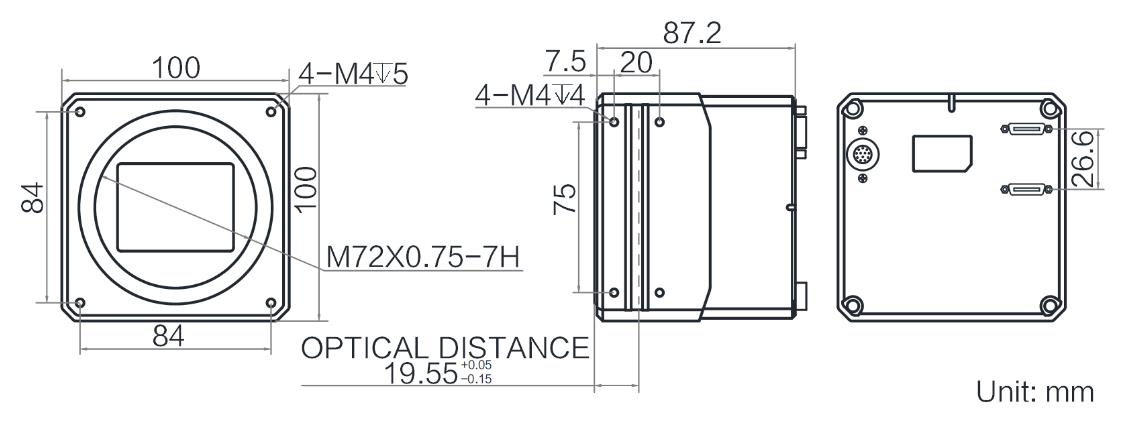

Dimensions

100 mm × 100 mm × 87.2 mm

Weight

Approx. 1.7 kg

IP protection level

IP40 (under proper installation of cables and lenses)

Temperature

working temperature 0~50℃, storage temperature -30~70℃

Humidity

20%~95%RH non-condensing

General Specifications

Software

MVS software, GenlCam protocol compliant capture card control software

Operating system

Windows 7/10 (32/64bits)

Protocol/Standard

Camera Link V2.0, GenICam

Certification

CE, FCC, RoHS, KC
