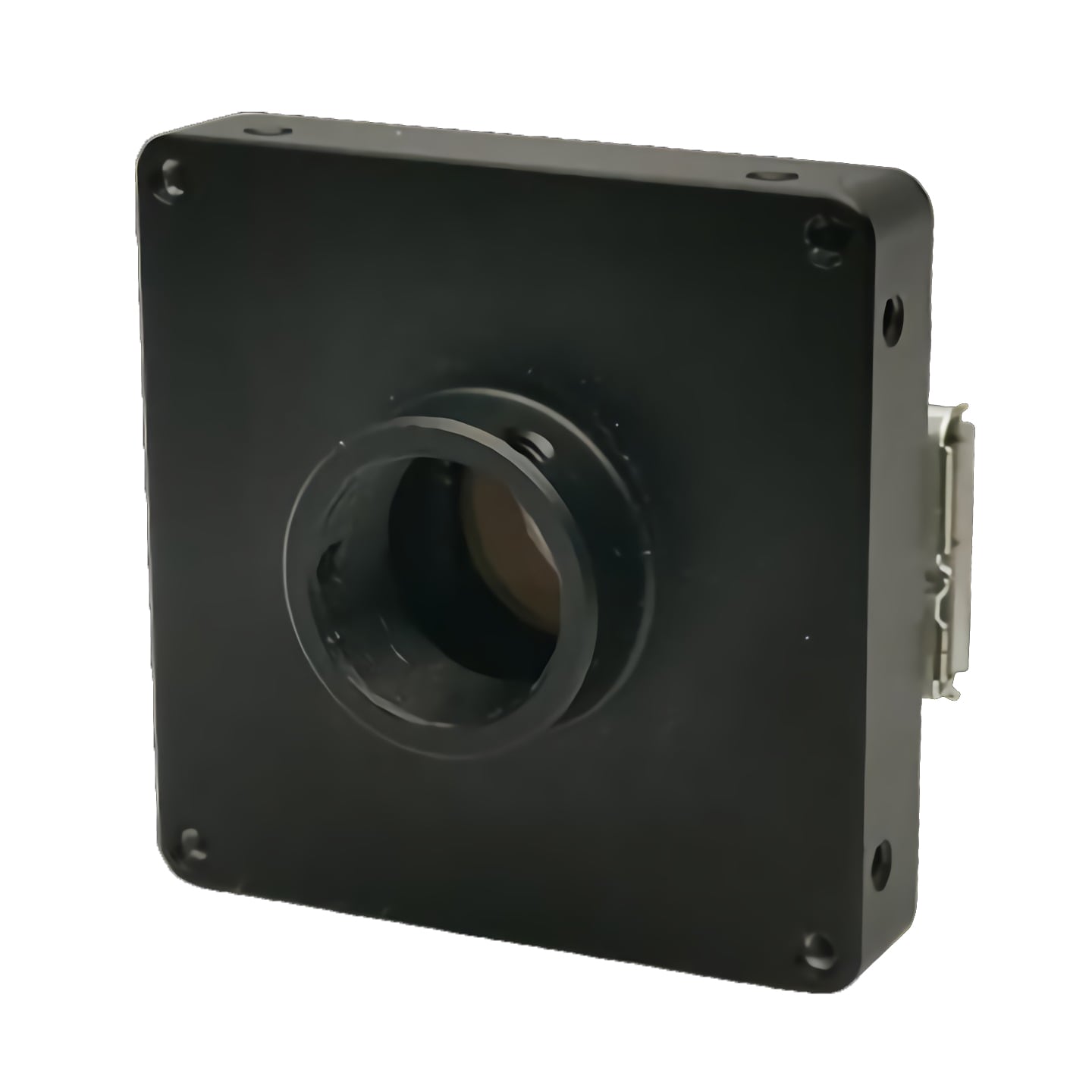

HIKROBOT MV-CB060-10UM/UC-S M12-Mount 6MP USB3.0 1/1.8″ Board Level Industrial Camera For Machine Vision

HIKROBOT MV-CB060-10UM/UC-S M12-Mount 6MP USB3.0 1/1.8″ Board Level Industrial Camera For Machine Vision

Product details

Model Number	Model	MV-CB060-10UM-S/MV-CB060-10UC-S
	Name	6 Megapixel USB 3.0 Board Camera, IMX178, B/W/Color, M12 Port
Performance	Sensor type	CMOS, roll-up shutter
	Sensor model	IMX178
	Image size	2.4 µm × 2.4 µm
	Target surface size	1/1.8″
	Resolution	3072×2048
	Maximum frame rate	Black and white	17 fps @3072×2048
		Color	29 fps @3072×2048
	Dynamic range	71.3 dB
	Signal-to-noise ratio	41.3 dB
	Gain	0 dB ~ 20 dB
	Exposure time	27 μs ~ 2.5 sec
	Shutter modes	automatic exposure, manual exposure, one-touch exposure and Global Reset are supported
	Black and white/color	Black and white and color two styles
	Pixel format	Black and white	Mono 8/10/10p/12/12p
		Color	Mono 8/10/12 Bayer RG 8/10/10p/12/12p YUV422Packed，YUV422_YUYV_Packed RGB8
	Binning	Support 1×1, 2×2
	Downsampling	Not supported
	Mirroring	Support horizontal mirroring
Electrical characteristics	Data interface	USB3.0
	Digital I/O	2 bi-directional configurable non-isolated IO (Line1, Line2)
	Power supply	Support USB3.0 power supply
	Typical power consumption	<2.0 W@5 VDC
Structure	Lens interface	M12-Mount
	Dimensions	35 mm × 35 mm × 8.6 mm
	Weight	approx. 30 g
	Temperature	working temperature 0~50℃, storage temperature -30~70℃
	Humidity	20%~80%RH non-condensing
General Specifications	Software	MVS or third-party software compatible with USB3 Vision protocol
	Operating System	Windows XP/7/10 32/64bits, Linux 32/64bits
	Protocol/Standard	USB3 Vision, GenlCam
	Certifications	CE, FCC, RoHS, KC
