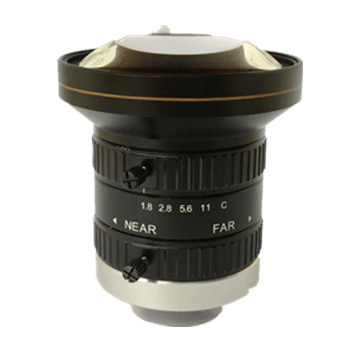

HIKROBOT SA1220M-10MP Large Angle 10MP 12mm F2 4/3″ C-mount Fixed Focus Industrial FA Machine Vision Lens
Product details
|
Model Number
|
Model
|
SA1220M-10MP
|
|
Name
|
12mm, F2.0, 4/3″, 10M resolution, C-mount lens
|
|
|
Performance
|
Focal length
|
12 mm
|
|
F-number
|
F2.0 ~ F22
|
|
|
Image plane size
|
Φ23 mm(4/3”)
|
|
|
Aberration
|
-2.40%
|
|
|
Nearest shooting distance
|
0.15 m
|
|
|
Field of view
|
D(22.6 mm):89.0°
H(18.13 mm):75.5° V(13.6 mm):61.1° |
|
|
Structure
|
Aperture control
|
Manual
|
|
Focus control
|
manual
|
|
|
Filter thread
|
M77×0.75
|
|
|
Interface type
|
C-Mount
|
|
|
Flange back focus
|
17.526mm
|
|
|
Dimension
|

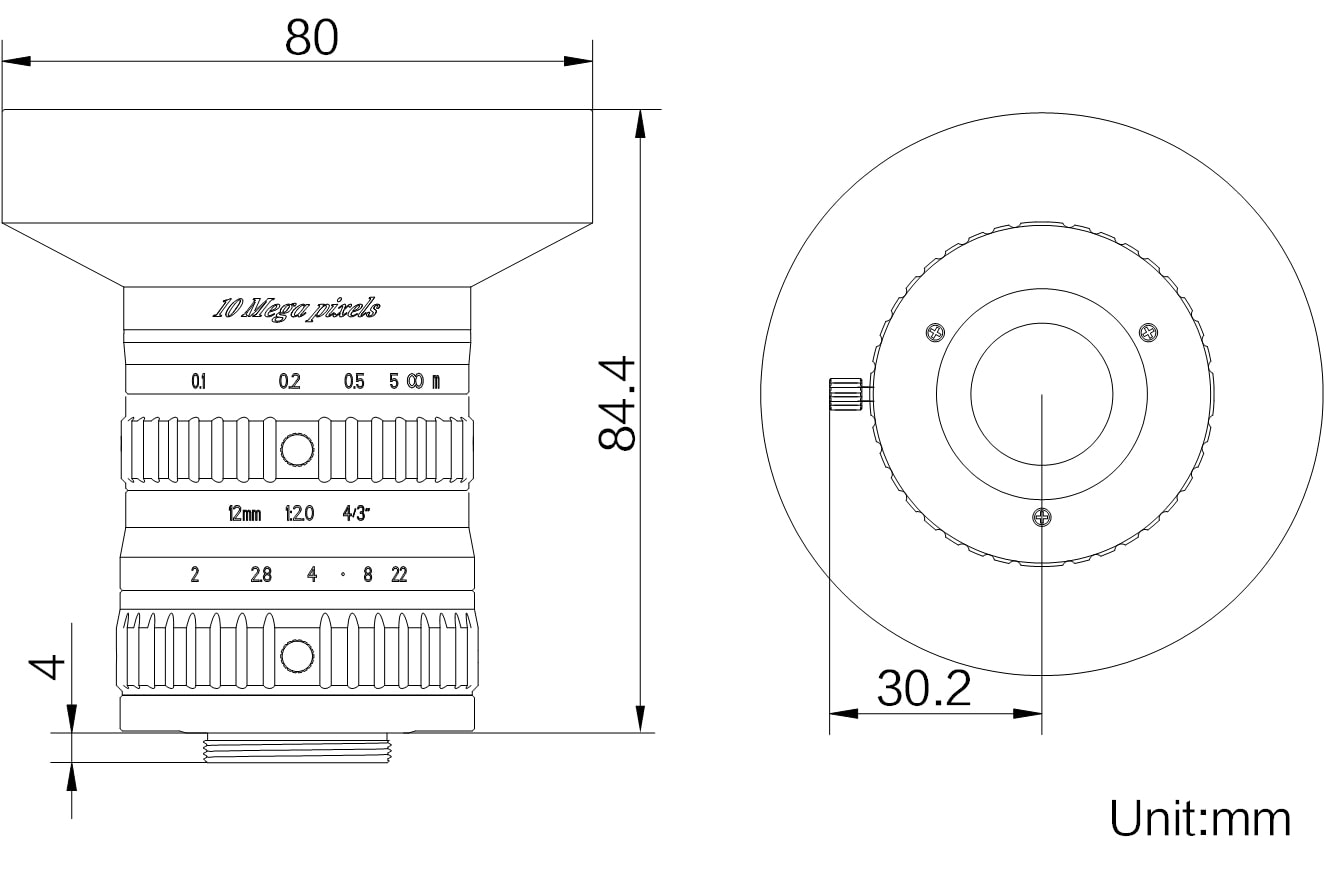

Φ80×84.4 mm
|
|
|
Weight
|
445 g
|
|
|
Temperature
|
-10 ~ 50℃
|
|
|
General Specification
|
Certification
|
RoHS2.0
|
