HIKROBOT MVL-HF0828M-6MPE 6MP 8mm F2.8 1/1.8″ C-mount Machine Vision Industrial Lens

HIKROBOT MVL-HF0828M-6MPE 6MP 8mm F2.8 1/1.8″ C-mount Machine Vision Industrial Lens

Product details

Model Number	Model	MVL-HF0828M-6MPE
Model Number	Name	8mm, F2.8, 1/1.8″, 6 million resolution, C-mount lens
Performance	Focal length	8 mm
	F-number	F2.8 ~ F16
	Image plane size	Φ9 mm (1/1.8”)
	Aberration	0.049%
	Nearest shooting distance	0.1 m
	Field of view	D（8.96mm）：58.50° H（7.38mm）：49.46° V（4.92mm）：34.19°
Structure	Aperture control	Manual
	Focus control	manual
	Filter thread	M30.5×P0.5
	Interface type	C-Mount
	Flange back focus	17.526 mm

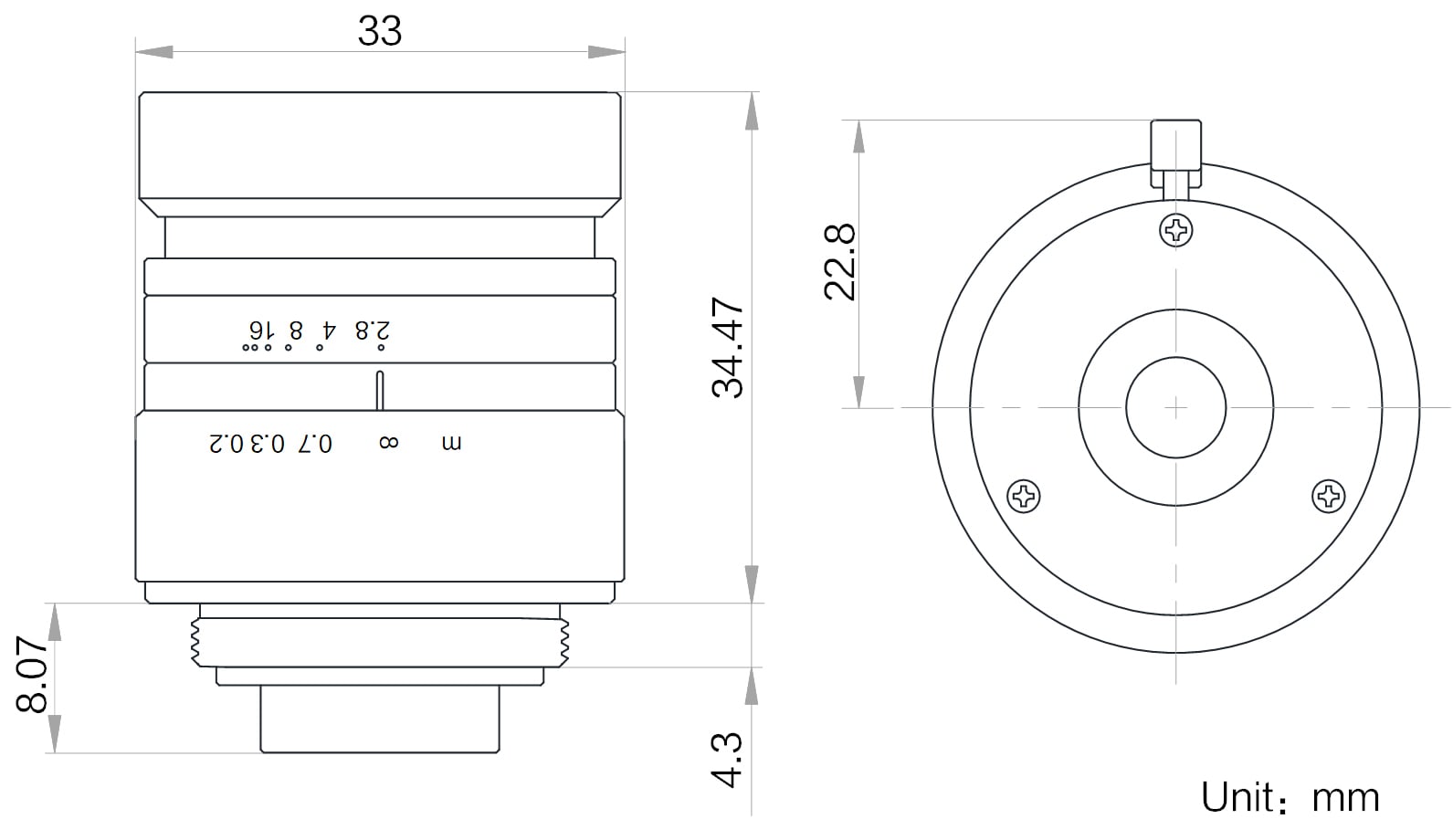

	Dimension	Φ33×34.5 mm
	Weight	63.3 g
	Temperature	-10 ~ 50℃
General Specification	Certification	RoHS2.0
