HIKROBOT MV-GX1004 4-port CXP-6 Image Machine Vision Capture Card for Industrial Camera

HIKROBOT MV-GX1004 4-port CXP-6 Image Machine Vision Capture Card for Industrial Camera

Product details

Model Number	Model	MV-GX1004
Model Number	Name	4-port CXP-6 image capture card
Memory	On-board memory	4 GB DDR3-RAM
Host Interfaces	Bus Interface	PCI-E gen2 × 8
	Bus interface performance	3900 MB/s (peak transmission bandwidth), 3350 MB/s (sustained transmission bandwidth)
	Bus indicator	1pc
Camera Interfaces	Standard	CoaXPress 1.0/1.1
	Connectors	4 × DIN 1.0/2.3
	Power output	PoCXP with up to 13 W@24VDC for a single channel
	Support camera type	CXP-6 interface industrial camera
	Number of supported cameras	up to 4
	Camera interface rate	1.25/2.5/3.125/5/6.25Gbps（CXP-1/2/3/5/6）
	Circulation channel	4 pcs
	Channel indicator	4 pcs
Processing Functions	Pixel format	Mono 8/10/12/16 Bayer 8/10/12/16 RGB8
General purpose I/O	I/O Type	Provides 24 I/O interfaces, 4 opto-isolated inputs (4.5 ~ 28V), 4 opto-isolated outputs (4.5 ~ 28V), 4 422 inputs and 4 422 outputs, 4 TTL inputs and 4 TTL outputs
General purpose I/O	Connector	HD26 female, row of females
Electrical Characteristics	Typical power consumption	20 W (without PoCXP)

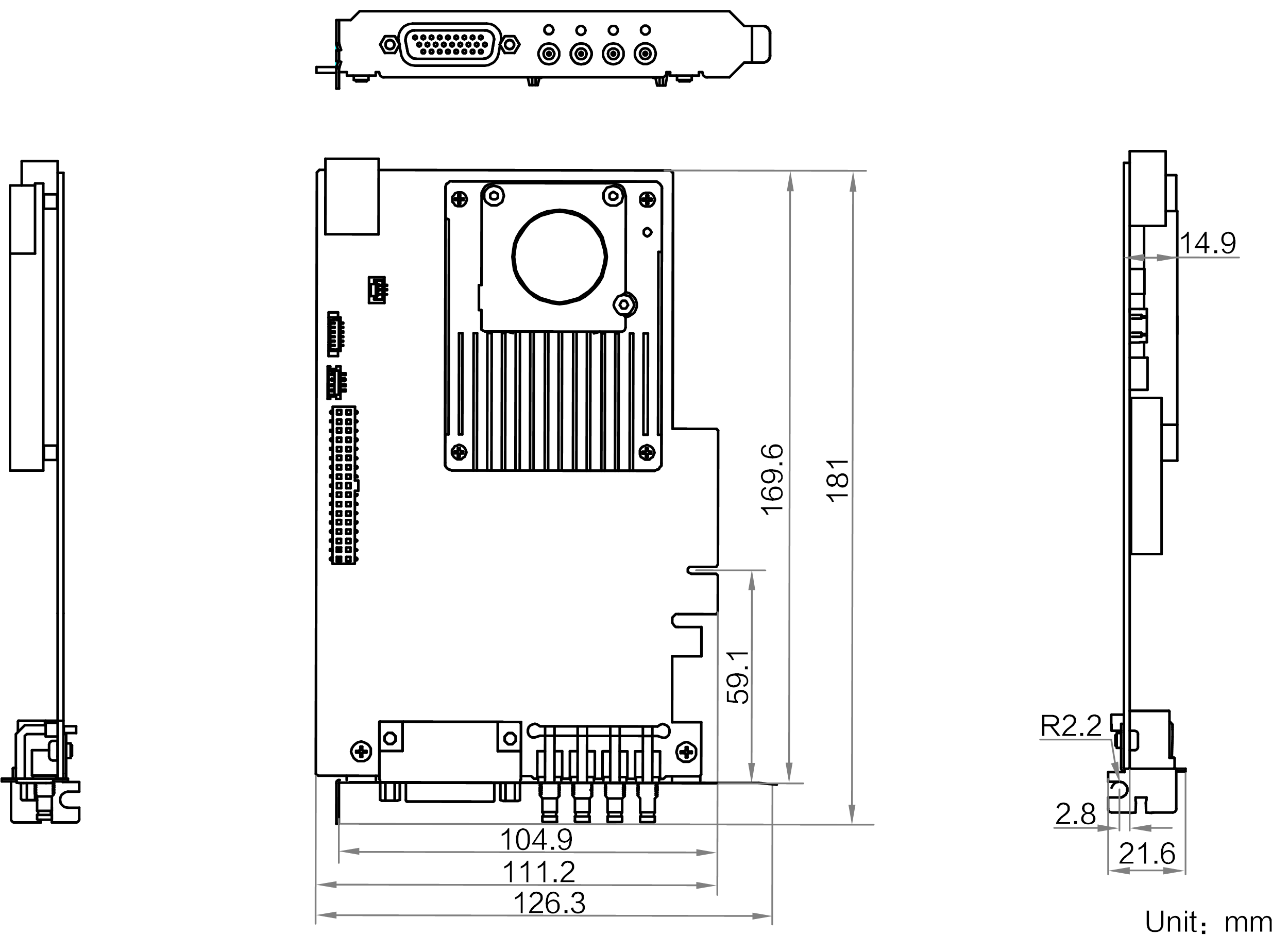

Structure	Dimensions	181 mm × 126.3 mm × 21.6 mm
	Temperature	working temperature 0 ~ 60°C, storage temperature -20 ~ 70°C
	Humidity	10% ~ 95%RH non-condensing
General Specifications	Software	MVS
	Operating Systems	Windows 7/10 64bits
	Certifications	WEEE，RoHS，REACH
