HIKROBOT MV-GS1004 4-port 10Gbps SFP Capture Card for 10 Gigabit Ethernet Industrial Camera

HIKROBOT MV-GS1004 4-port 10Gbps SFP Capture Card for 10 Gigabit Ethernet Industrial Camera

Product details

Model Number	Model	MV-GS1004
Model Number	Name	4-port 10Gbps SFP capture card
Memory	On-board memory	2 GB DDR3-RAM
Host Interfaces	Bus Interface	PCI-E gen2 × 8
	Bus interface performance	3900 MB/s (peak transmission bandwidth), 3350 MB/s (sustained transmission bandwidth)
	Bus Indicator	1pc
Camera Interfaces	Standard	GigE Vision V2.0
	Connector	4 × SFP
	Support camera type	10 Gigabit Ethernet Industrial Camera
	Number of supported cameras	Up to 4 (30 Gbps total bandwidth)
	Camera interface rate	10 Gbps
	Flow channel	4 pcs
	Channel indicator	4 pairs
Processing Functions	Pixel format	Mono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed，YUV422_YUYV_Packed RGB 8，BGR 8
General purpose I/O	I/O type	Provides 24 I/O interfaces, 4 opto-isolated inputs (4.5 ~ 28V), 4 opto-isolated outputs (4.5 ~ 28V), 4 422 inputs and 4 422 outputs, 4 TTL inputs and 4 TTL outputs
General purpose I/O	Connector	row of mothers
Electrical Characteristics	Typical power consumption	20 W

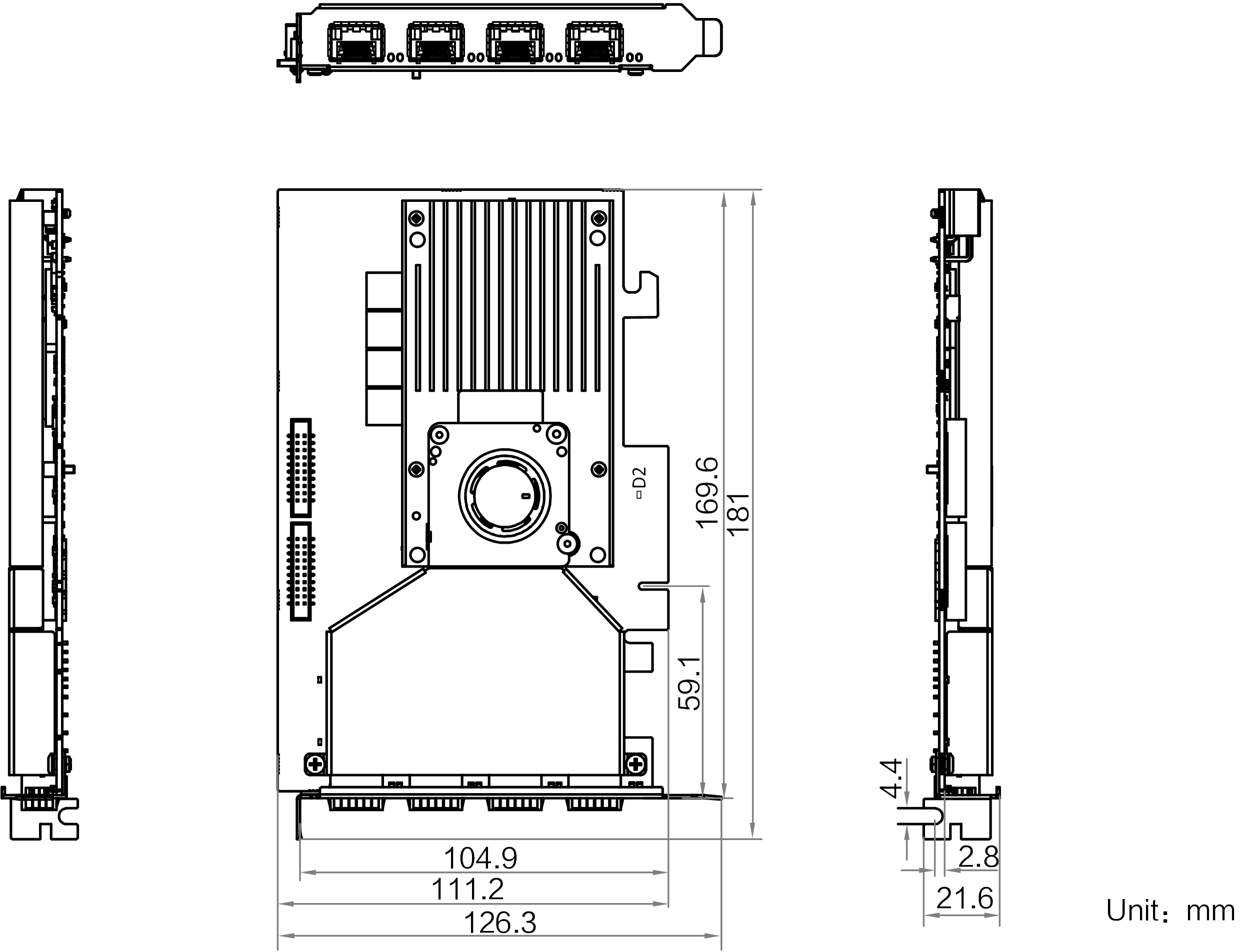

Structure	External dimensions	126.3 mm × 181 mm × 21.6 mm
	Temperature	working temperature 0 ~ 60℃, storage temperature -20 ~ 70℃
	Humidity	10% ~ 95%RH non-condensing
General Specifications	Software	MVS
	Operating Systems	Windows 7/10
	Certifications	CE，FCC，KC，RoHS
