HIKROBOT MV-GE2004 Four-Port i211 Network Card Full Height Blocking Bar Machine Vision Capture Card

HIKROBOT MV-GE2004 Four-Port i211 Network Card Full Height Blocking Bar Machine Vision Capture Card

Product details

Model Number	Model	MV-GE2004
Model Number	Name	Four-port i211 network card full height blocking bar
Host Interfaces	Bus Interface	PCI-E gen2 × 4 appearance, PCI-E gen2 x 2 link
Host Interfaces	Bus interface performance	860 MB/s (peak transfer bandwidth), 800 MB/s (sustained transfer bandwidth)
Camera Interfaces	Standards	IEEE 802.3ab、IEEE 802.3u、IEEE 802.3x、IEEE 802.3Q、IEEE 802.3az
	Connector	4 × RJ45
	Support camera type	Gigabit network interface industrial camera
	Number of supported cameras	up to 4
	Camera interface rate	10/100/1000 Mbps
Electrical Characteristics	Typical power consumption	4.3 W

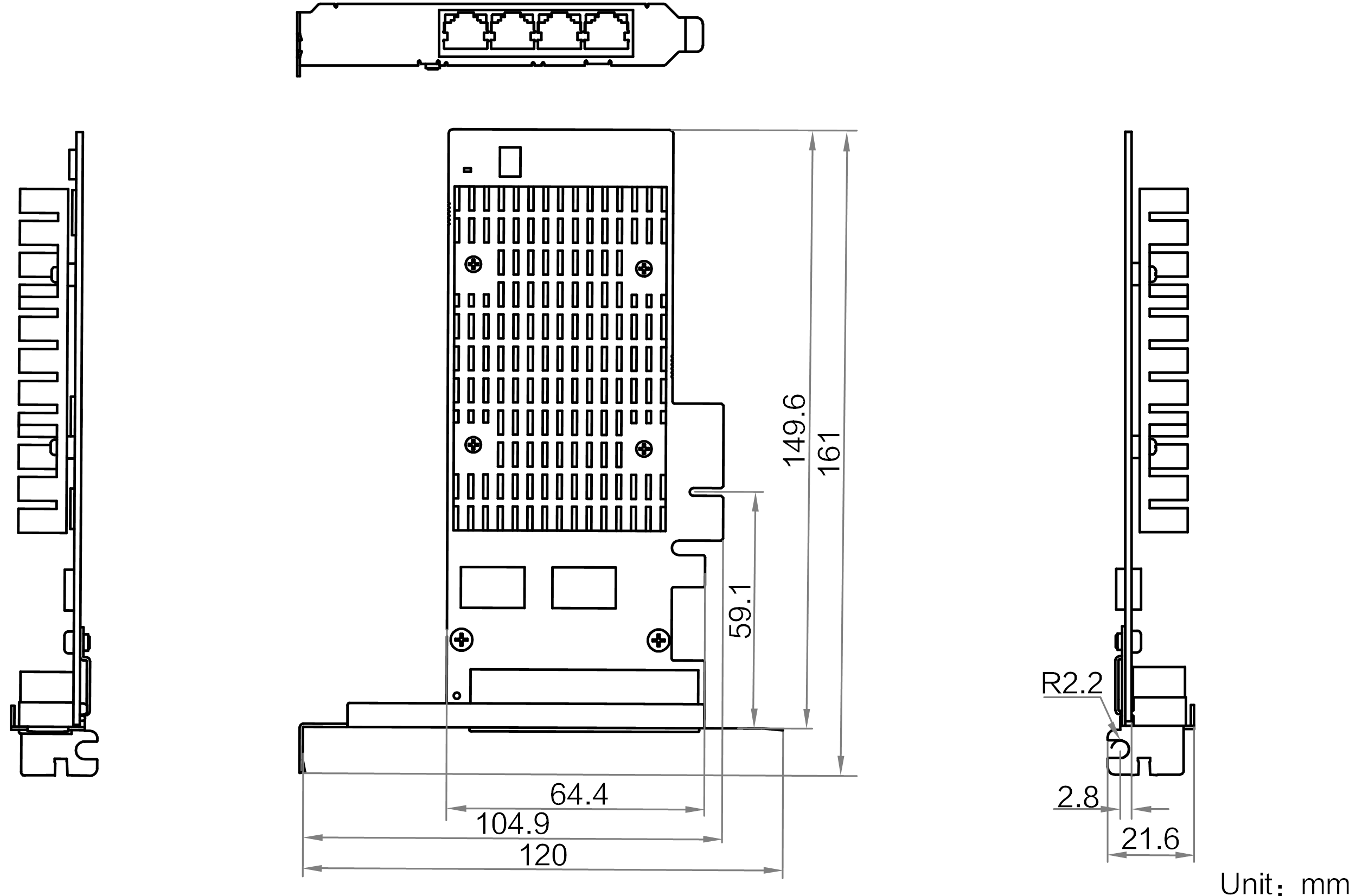

Structure	Dimensions	161 mm × 120 mm × 21.6 mm
	Weight	130 g
	Temperature	Operating temperature 0 ~ 60℃, storage temperature -30 ~ 70℃
	Humidity	10% ~ 95%RH non-condensing
	Heat dissipation method	natural cooling, no fan heat sink
General specifications	Operating Systems	Windows 7/10, Linux
General specifications	Certifications	CE, FCC, RoHS
