HIKROBOT MV-GE2002P Dual Port i211 POE NIC Full Height Capture Card for Machine Vision

HIKROBOT MV-GE2002P Dual Port i211 POE NIC Full Height Capture Card for Machine Vision

Product details

Model Number	Model	MV-GE2002P
Model Number	Name	Dual Port i211 POE NIC Full Height
Host Interfaces	Bus Interface	PCI-E gen2 × 4 appearance, PCI-E gen2 x 2 link
Host Interfaces	Bus interface performance	860 MB/s (peak transfer bandwidth), 800 MB/s (sustained transfer bandwidth)
Camera Interfaces	Standards	IEEE 802.3ab、IEEE 802.3u、IEEE 802.3x、IEEE 802.3Q、IEEE 802.3az
	Connector	2 × RJ45
	Support camera type	Gigabit network interface industrial camera
	Number of supported cameras	up to 2
	Camera interface rate	10/100/1000 Mbps
Electrical Characteristics	Typical power consumption	7.5 W (without PoE)

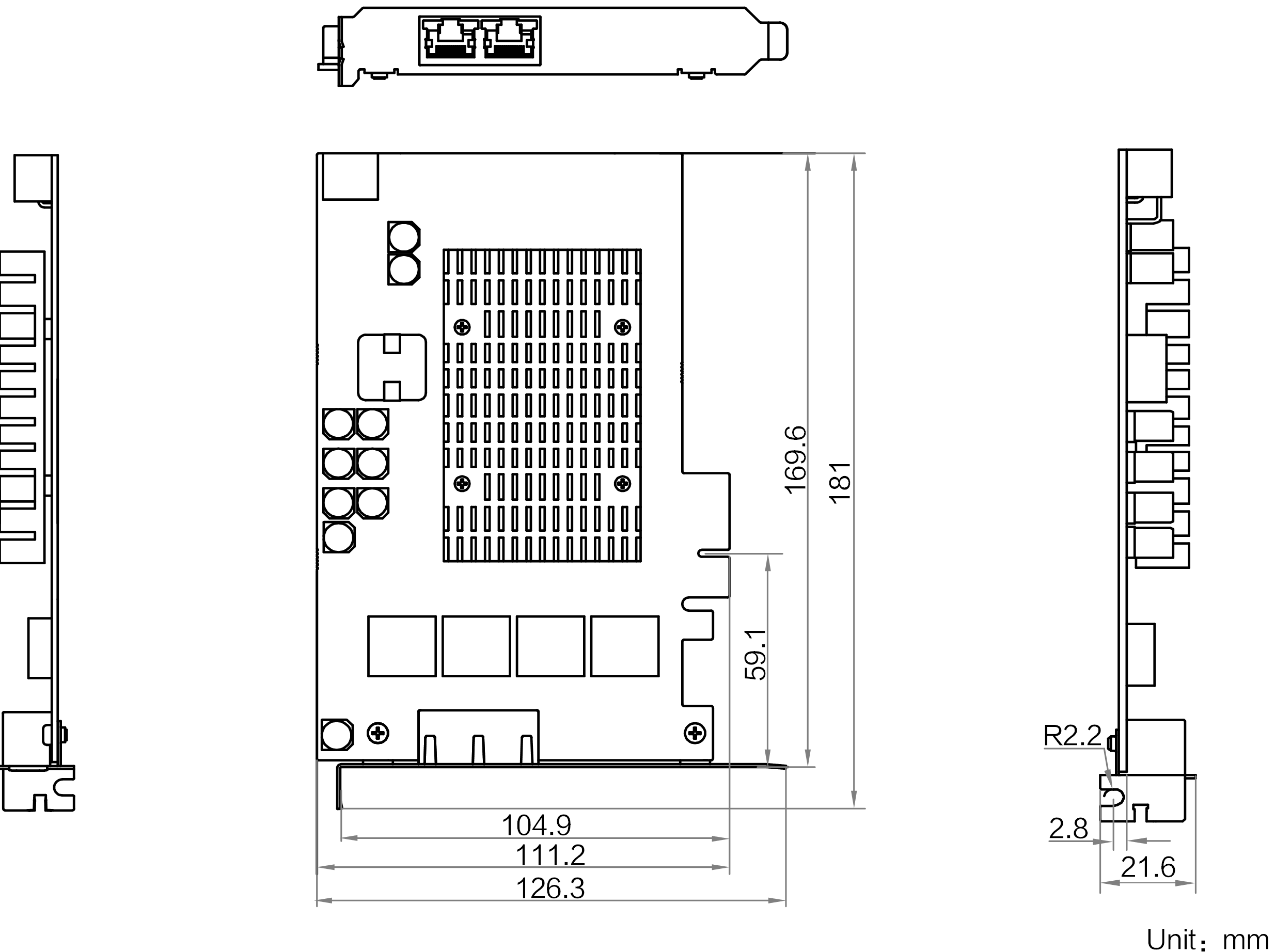

Structure	Dimensions	181 mm × 126.3 mm × 21.6 mm
	Weight	190 g
	Temperature	Operating temperature 0 ~ 60℃, storage temperature -20 ~ 70℃
	Humidity	10% ~ 95%RH non-condensing
	Heat dissipation method	Natural cooling, no fan heatsink
General specifications	Operating Systems	Windows 7/10，Linux
General specifications	Certifications	CE, FCC, RoHS
