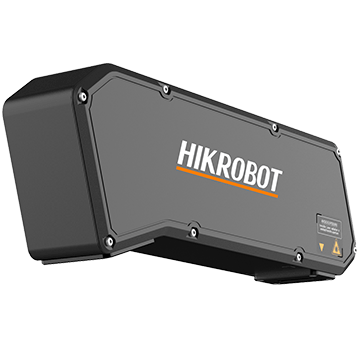

HIKROBOT MV-DB1612-05H Working Range 1-1.8m Detection accuracy 8mm Industrial Binocular Stereo Camera
Product details
|
Model Number
|
Model
|
MV-DB1612-05H
|
|
Name
|
Binocular stereo camera, working range 1-1.8m, depth map frame rate 11fps, detection accuracy ±8mm (standard)
|
|
|
Performance
|
Myopic field
|
1100 mm×950 mm
|
|
Farsighted field
|
2050 mm×1750 mm
|
|
|
Net Distance (CD)
|
1000 mm
|
|
|
Measurement range (MR)
|
800 mm
|
|
|
Volumetric detection range
|
100 mm x 100 mm x 30 mm ~ 800 mm x 800 mm x 800 mm
|
|
|
Detection accuracy
|
±5mm
|
|
|
Scanning frame rate
|
11 fps@depth map, 4 fps@volume data
|
|
|
Data type
|
raw map, depth map, volume data
|
|
|
Laser safety level
|
3R
|
|
|
Electrical Characteristics
|
Data Interface
|
GigE
|
|
Digital I/O
|
12-pin M12 interface provides power and 1 RS-232
|
|
|
Power supply
|
12 VDC
|
|
|
Typical power consumption
|
<10.0 W@12 VDC
|
|
|
Structure
|
Dimensions
|
46 mm×181.6 mm×58.2 mm
|
|
Weight
|
about 800 g
|
|
|
Temperature
|
working temperature 0~45℃, storage temperature -30~80℃
|
|
|
Humidity
|
20%~85%RH without condensation
|
|
|
General Specifications
|
Software
|
3DMVS, CodeMaster
|
|
Operating System
|
Windows 7/10 32/64bits
|
|
|
Certifications
|
CE, FCC, RoHS
|
