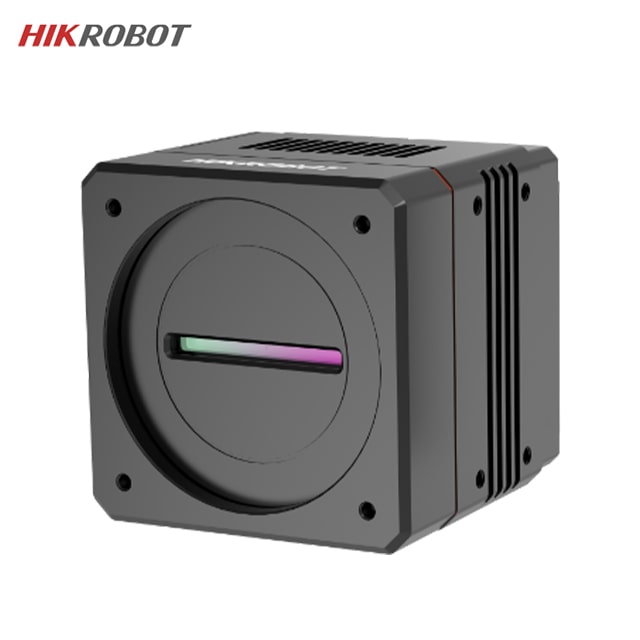

HIKROBOT MV-CL086-91CC-PRO COMS 8K Camera Link Interface Color Line Scan Industrial Camera
Product details
|
Model Number
|
Model
|
MV-CL086-91CC-PRO
|
|
Type
|
8K pro Camera Link linescan Camera,5μm，Color
|
|
|
Performance
|
Sensor Type
|
CMOS
|
|
Pixel size
|
5 μm
|
|
|
Resolution
|
8192 × 12
|
|
|
Image mode
|
Supports 1-line, 2-TDI, and 4-TDI
|
|
|
Max. line rate
|
10 kHz (Base), 20 kHz (Medium), 34 kHz (80-bit)
|
|
|
Configuration mode
|
Base, Medium, 80-bit
|
|
|
Tap geometry
|
1 ×, 1 × 2, 1 × 4, 1 × 8, 1 × 10
|
|
|
Tap number
|
1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps
|
|
|
Pixel clock
|
40 MHz, 66 MHz, 80 MHz, 85 MHz
|
|
|
Dynamic range
|
62 dB
|
|
|
SNR
|
42 dB
|
|
|
Gain
|
Supports 1.2 ×, 2.7 ×, and 4.6 ×
|
|
|
Exposure time
|
3 μs to 10 ms
|
|
|
Exposure mode
|
Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
|
|
|
Mono/color
|
Color
|
|
|
Pixel Format
|
RGB, Mono 8/10
|
|
|
Binning
|
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
|
|
|
Reverse image
|
Supports horizontal reverse image output
|
|
|
Trigger mode
|
External trigger, internal trigger
|
|
|
External trigger mode
|
Line trigger, frame trigger, line + frame trigger
|
|
|
Electrical Characteristics
|
Data Interface
|
Camera Link
|
|
Digital I/O
|

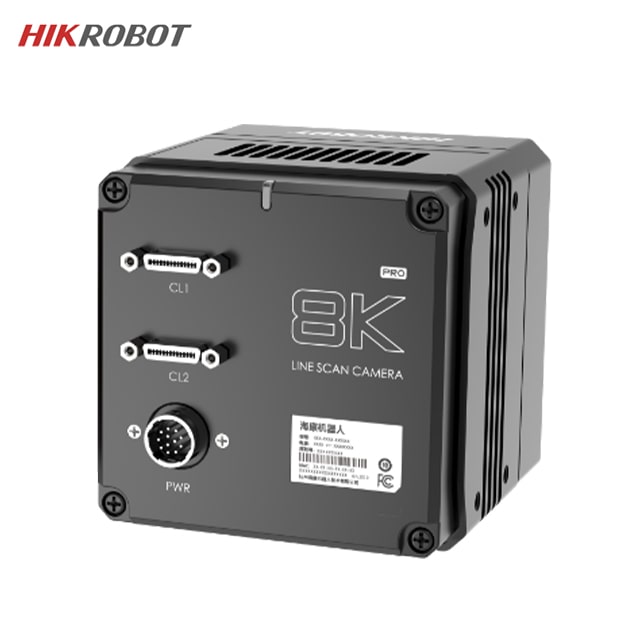

12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support
single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
|
|
Power supply
|
24 VDC
|
|
|
Typical power consumption
|
Typ. 20.5 W@24 VDC
|
|
|
Mechanical
|
Lens interface
|
M72*0.75, optical back focal length: 12 mm (0.5″), applicable to F-mount via lens adapter
|
|

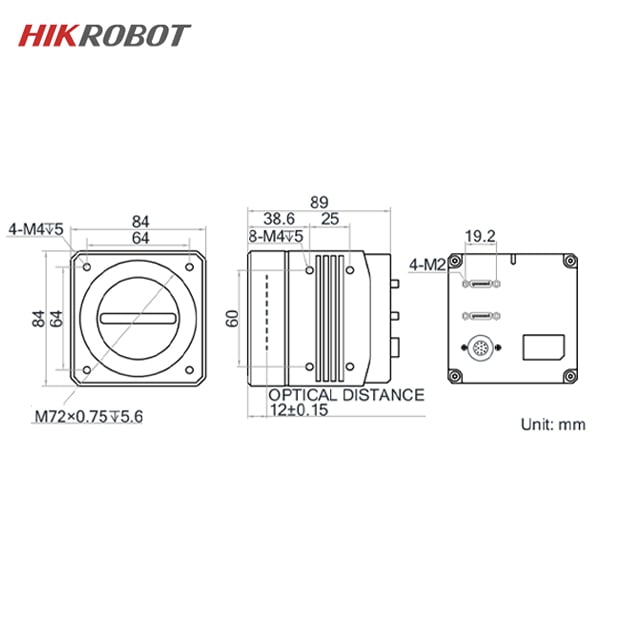

Dimensions
|
84 mm × 84 mm × 89 mm (3.3″ × 3.3″ × 3.5″)
|
|
|
Weight
|
Approx. 883 g (1.9 lb.)
|
|
|
IP protection grade
|
IP40 (under proper lens installation and wiring)
|
|
|
Temperature
|
Working temperature: -20 °C to 60 °C (-4 °F to 140 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
|
|
|
Humidity
|
5% to 90% RH, non-condensing
|
|
|
General Specifications
|
Client software
|
MVS and frame grabber software meeting with Camera Link Protoco
|
|
Operating system
|
32/64-bit Windows 7/10
|
|
|
Compatibility
|
Camera Link V2.0, GenICam
|
|
|
Certification
|
CE, RoHS, KC
|
