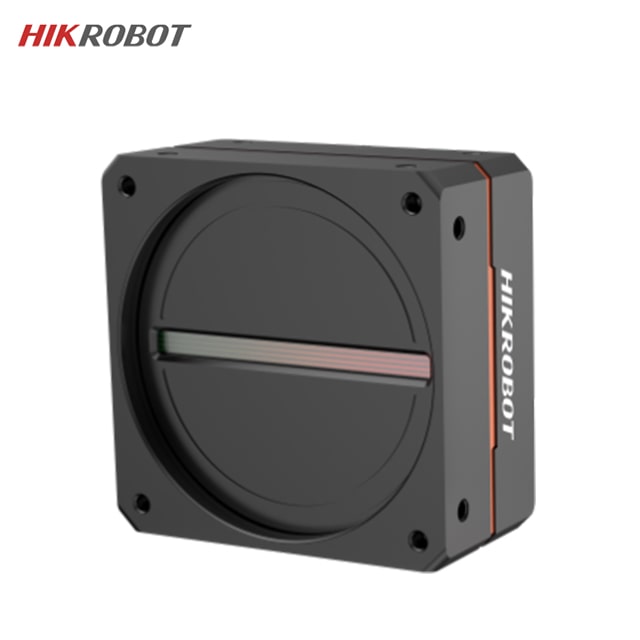

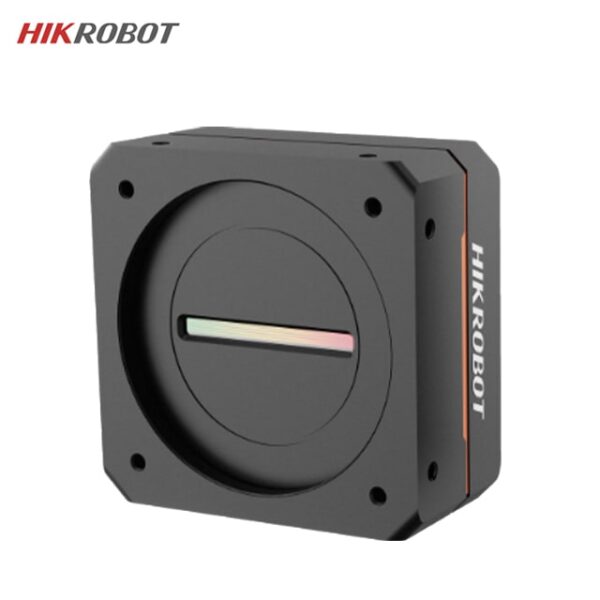

HIKROBOT MV-CL083-92CC COMS 8K Camera Link Interface Color Line Scan Industrial Camera
Product details
|
Model Number
|
Model
|
MV-CL083-92CC
|
|
Type
|
8k pixels Linescan Cameras.Camera Link,Color
|
|
|
Performance
|
Sensor Type
|
CMOS
|
|
Pixel size
|
7 µm
|
|
|
Resolution
|
8192 × 3
|
|
|
Image mode
|
Supports 1-line
|
|
|
Max. line rate
|
10.1 kHz (Base), 20.2 kHz (Medium), 33.7 kHz (80-bit) Increases line rate via ROI: Max. 66.6 kHz (4140 resolution and below)
|
|
|
Dynamic range
|
63.4 dB
|
|
|
SNR
|
40.8 dB
|
|
|
Gain
|
Supports 1.0 ×
|
|
|
Exposure time
|
3 μs to 10 ms
|
|
|
Exposure mode
|
Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
|
|
|
Mono/color
|
Color
|
|
|
Pixel Format
|
Mono 8/12, RGB 8, BGR 8
|
|
|
Binning
|
Supports 1 × 1, 2 × 2, 4 × 4
|
|
|
Reverse image
|
Supports horizontal reverse image output
|
|
|
Trigger mode
|
External trigger, internal trigger
|
|
|
External trigger mode
|
Line trigger, frame trigger, line + frame trigger
|
|
|
Electrical Characteristics
|
Data Interface
|
Camera Link
|
|
Digital I/O
|

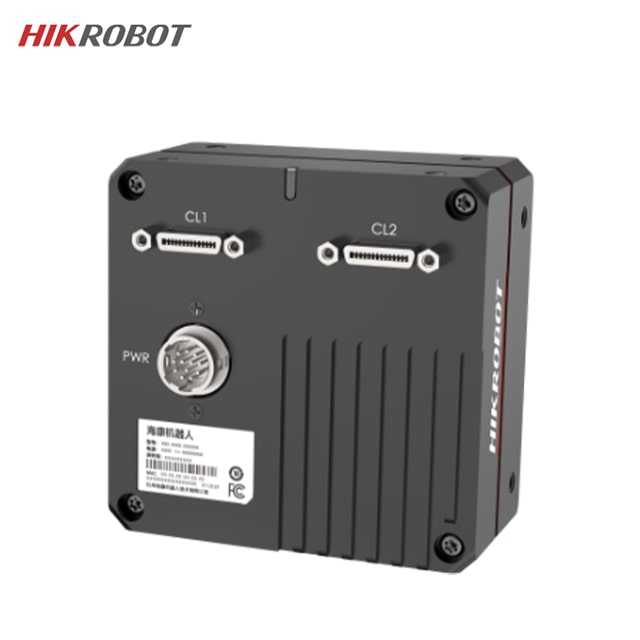

12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential.
Camera Link provides I/O (CC1/CC2/CC3/CC4). |
|
|
Power supply
|
12 VDC to 24 VDC
|
|
|
Typical power consumption
|
Typ. 9.9 W@12 VDC
|
|
|
Mechanical
|
Lens interface
|
M72*0.75, optical back focal length: 12 mm (0.5″), applicable to F-mount via lens adapter
|
|
Dimensions
|
76 mm × 76 mm × 42.1 mm (3.0″ × 3.0″ × 1.7″)
|
|
|
Weight
|
Approx. 320 g (0.7 lb.)
|
|
|
IP protection grade
|
IP40 (under proper lens installation and wiring)
|
|
|
Temperature
|
Working temperature: -20 °C to 55 °C (-4 °F to 131 °F) Storage temperature : -30 °C to 80 °C (-22 °F to 176 °F)
|
|
|
Humidity
|
5% to 90% RH, non-condensing
|
|
|
General Specifications
|
Client software
|
MVS and frame grabber software meeting with Camera Link Protocol
|
|
Operating system
|
32/64-bit Windows 7/10
|
|
|
Compatibility
|
Camera Link V1.2, GenICam
|
|
|
Certification
|
CE, FCC, RoHS2.0, KC
|
