HIKROBOT MV-CA050-20GC Global Shutter CMOS C-Mount 5MP Color CMOS Industrial Camera
بازگشت به محصولات
H51b4df1d31ce4172b96a6848f45e00f48

HIKROBOT MV-CE200-10UM/UC Roller Shutter CMOS 20MP USB3.0 Area Scan C-Mount Industrial Camera

HIKROBOT MV-CE200-11UM/UC 20MP USB3.0 Roller Shutter C-Mount CMOS Industrial Area Scan Camera

کیفیت اورجینال

پرداخت ایمن

مقايسه
افزودن به علاقه مندی
دسته: , ,
توضیحات

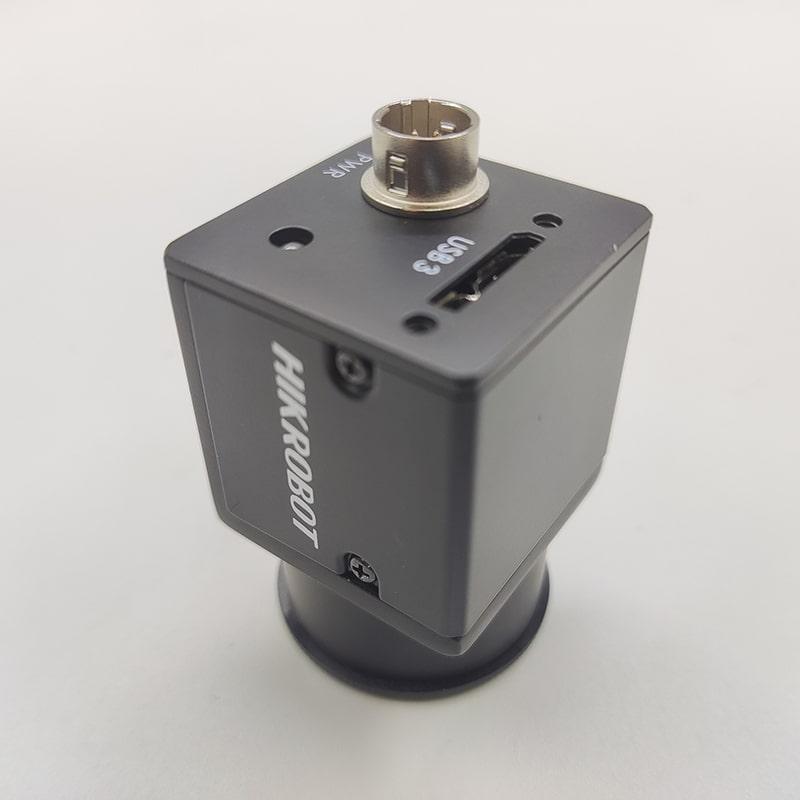

HIKROBOT MV-CE200-11UM/UC 20MP USB3.0 Roller Shutter C-Mount CMOS Industrial Area Scan Camera

Product details

Model Number
Model
MV-CE200-11UM、MV-CE200-11UC
Name
20 million pixel USB 3.0 area scan camera, IMX183, small size, black & white, color
Performance
Sensor Type
CMOS, Rolling Shutter
Sensor model
IMX183
Pixel size
2.4 µm×2.4 µm
Target surface size
1″
Resolution
5472×3648
Maximum frame rate
19.2 fps@5472 × 3648
Dynamic range
65.5 dB
Signal-to-noise ratio
41.5 dB
Gain
0 dB ~20 dB
Exposure time
28 μs ~ 0.7 sec
Shutter Mode
Support Auto Exposure, Manual Exposure, One Key Exposure and Global Reset
Black & white/color
black & white, color
Pixel Format
black and white
Mono 8/10/10Packed/12/12Packed
color
Mono 8/10/12
Bayer RG 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed
RGB8，BGR8
Mirroring
supports horizontal mirroring
Binning
Support 1×1, 2×2, 4×4
Downsampling
1×1, 2×2, 4×4 supported
Electrical Characteristics
Data interface
USB3.0
Digital I/O
6-pin P7 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2)
Power supply
9~24 VDC, support USB power supply
Typical power consumption
2.83 W@5 VDC (USB powered)
Structure
Lens mount
C-Mount

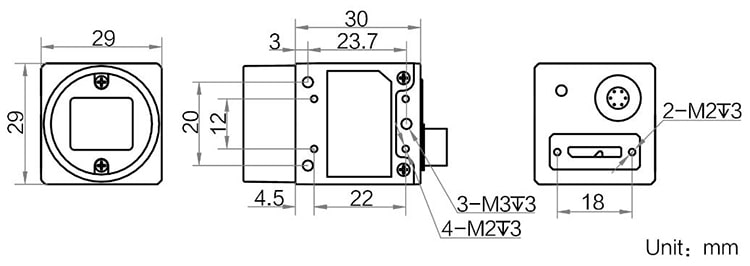

Dimensions
29 mm × 29 mm × 30 mm
Weight
About 80g
IP protection grade
IP30 (when the lens and cable are installed correctly)
Temperature
working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
Humidity
20% ~ 80%RH non-condensing
General Specifications
Software
MVS or 3rd party software supporting USB3 Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
USB3 Vision, GenlCam
Certification
CE, FCC, RoHS, KC
