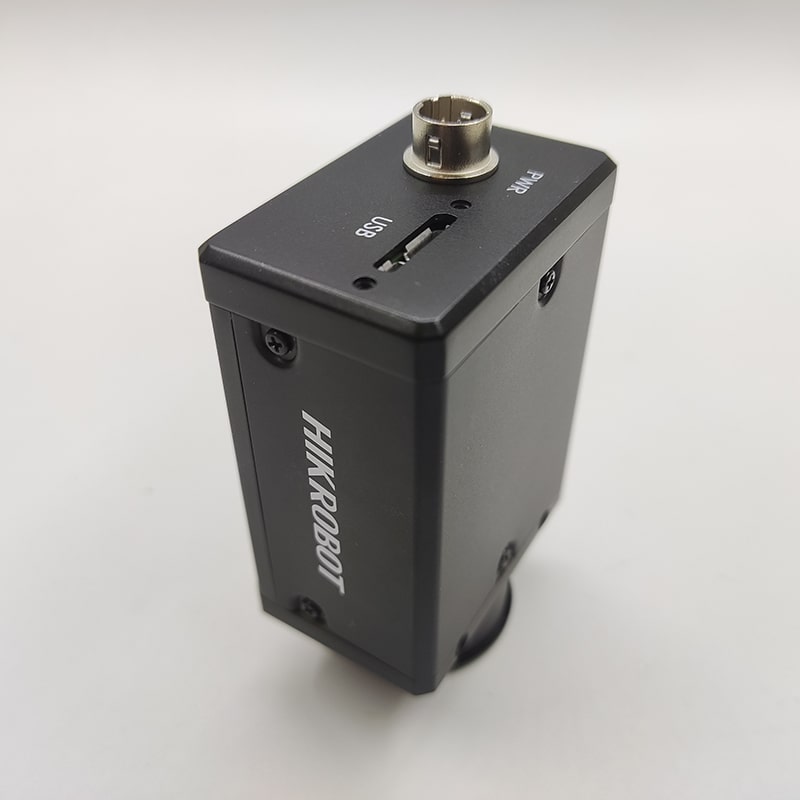

HIKROBOT MV-CE200-10UM/UC Roller Shutter CMOS 20MP USB3.0 Area Scan C-Mount Industrial Camera

HIKROBOT MV-CE200-10UM/UC Roller Shutter CMOS 20MP USB3.0 Area Scan C-Mount Industrial Camera

Product details

Model Number	Model	MV-CE200-10UM, MV-CE200-10UC
Model Number	Name	20 million pixel USB 3.0 area scan camera, IMX183, black & white, color
Performance	Sensor Type	CMOS, Rolling Shutter
	Sensor model	IMX183
	Pixel size	2.4 µm×2.4 µm
	Target surface size	1″
	Resolution	5472×3648
	Maximum frame rate	19.2 fps@5472×3648
	Dynamic range	65.5 dB
	Signal-to-noise ratio	41.5 dB
	Gain	0 dB ~20 dB
	Exposure time	28 μs ~ 0.7 sec
	Shutter Mode	Support Auto Exposure, Manual Exposure, One Key Exposure and Global Reset
	Black & white/color	black & white, color
	Pixel Format	Mono 8/10/10Packed/12/12Packed
	Binning	Support 1×1, 2×2, 4×4
	Downsampling	1×1, 2×2, 4×4 supported
	Mirroring	supports horizontal mirroring
Electrical Characteristics	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2)
	Power supply	12 VDC, support USB power supply
	Typical power consumption	2.83 W@5 VDC (USB powered)
Structure	Lens mount	C-Mount

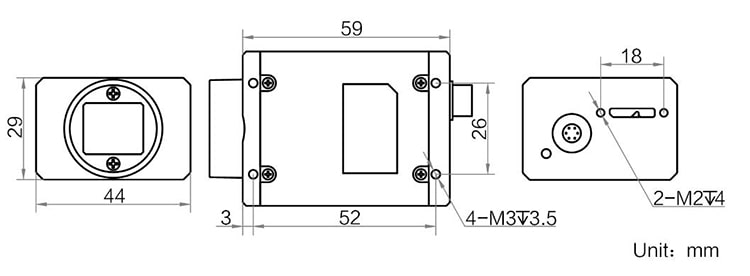

	Dimensions	44 mm × 29 mm × 59 mm
	Weight	About 100g
	IP protection grade	IP30 (when the lens and cable are installed correctly)
	Temperature	working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
	Humidity	20% ~ 80%RH non-condensing
General Specifications	Software	MVS or third-party software compatible with USB3 Vision protocol
	Operating System	Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
	Protocol/Standard	USB3 Vision, GenlCam
	Certification	CE, FCC, RoHS, KC
