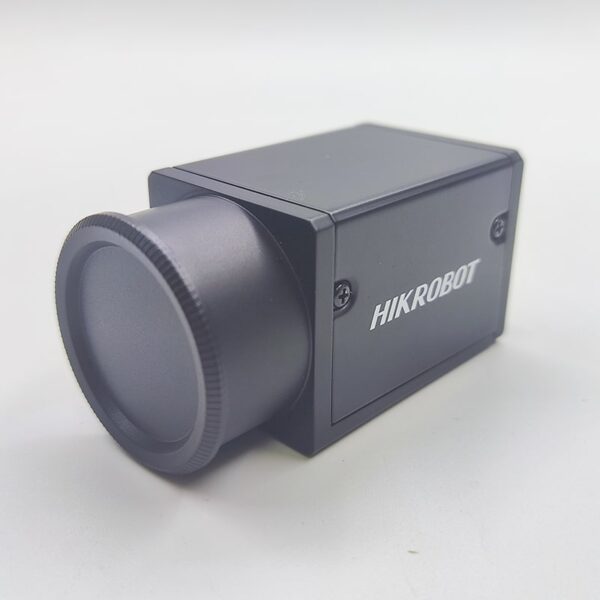

HIKROBOT MV-CE013-50GM/GC Global Shutter 30fps 1.3MP C-Mount GigE CCD Camera for Industrial
بازگشت به محصولات
H728aa085892746f88832a67478b1adf3x

HIKROBOT MV-CA050-20GC Global Shutter CMOS C-Mount 5MP Color CMOS Industrial Camera

HIKROBOT MV-CE200-10GM/GC CMOS 1″ 20MP Rolling Shutter High Resolution Camera for Industrial

کیفیت اورجینال

پرداخت ایمن

مقايسه
افزودن به علاقه مندی
دسته: , ,
توضیحات

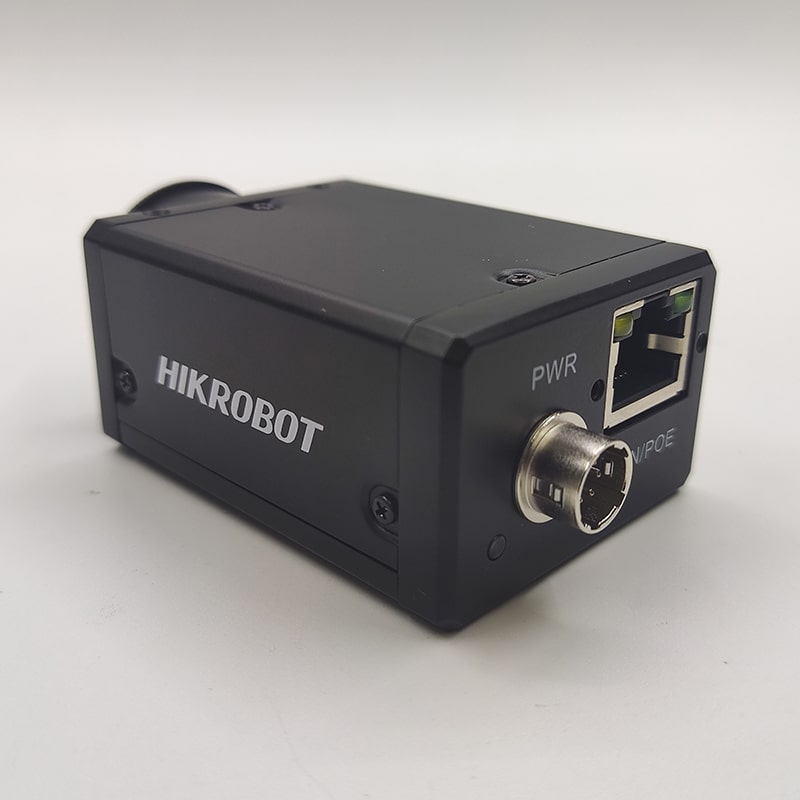

HIKROBOT MV-CE200-10GM/GC CMOS 1″ 20MP Rolling Shutter High Resolution Camera for Industrial

Product details

Model Number
Model
MV-CE200-10GM、MV-CE200-10GC
Name
20 million pixel network port area scan camera, IMX183, black & white、color
Performance
Pixel size
2.4 µm × 2.4 µm
Exposure time
46 μs ~ 2 sec
Sensor Type
CMOS, Rolling Shutter
Signal-to-noise ratio
41.5 dB
Downsampling
not supported
Maximum frame rate
5.9 fps@5472 × 3648
Pixel Format
black and white
Mono 8/10/10Packed/12/12Packed
color
Mono 8/10/12
Bayer GR 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed
RGB 8
Target surface size
1″
Shutter mode
supports automatic exposure, manual exposure, one-key exposure mode and Global Reset function
Sensor model
IMX183
Gain
0 dB ~ 20 dB
Mirroring
supports horizontal mirroring
Dynamic range
65.5 dB
Binning
supports 1 × 1, 2 × 2, 4 × 4
Resolution
5472 × 3648
B&W/Color
black & white、color
Electrical Characteristics
Power supply
12 VDC, support PoE power supply
Data interface
GigE
Typical power consumption
3.1 W@12 VDC
Digital I/O
6-pin P7 connector provides power and I/O: 1 opto-isolated input (Line0), 1 opto-isolated output (Line1), 1
bidirectional configurable non-isolated I/O (Line2)
Structure
Humidity
20% ~ 80%RH non-condensing
IP protection grade
IP30 (when the lens and cable are installed correctly)

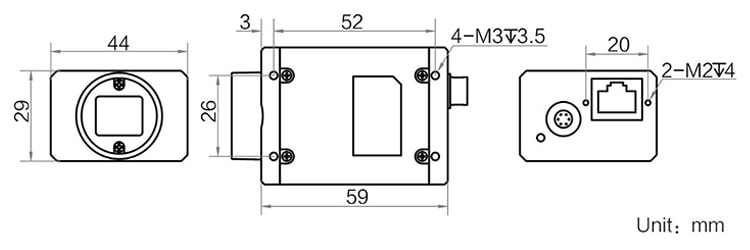

Dimensions
44 mm × 29 mm × 59 mm
Temperature
working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
Weight
About 100g
Lens mount
C-Mount
General Specifications
Protocol/Standard
GigE Vision V2.0, GenICam
Software
MVS or 3rd party supporting GigE Vision protocol software
Certification
CE, FCC, RoHS, KC
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
