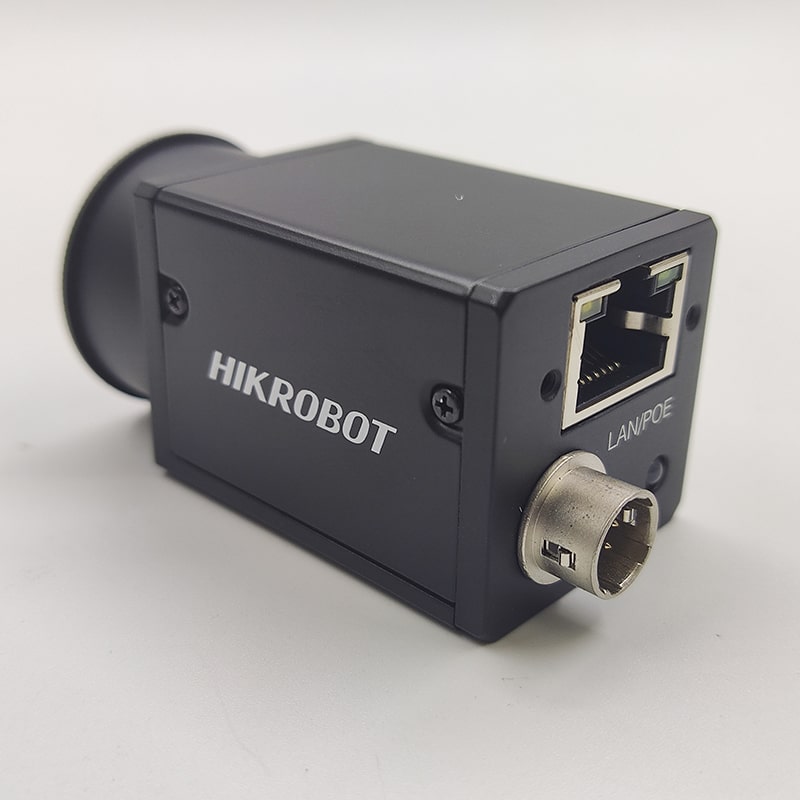

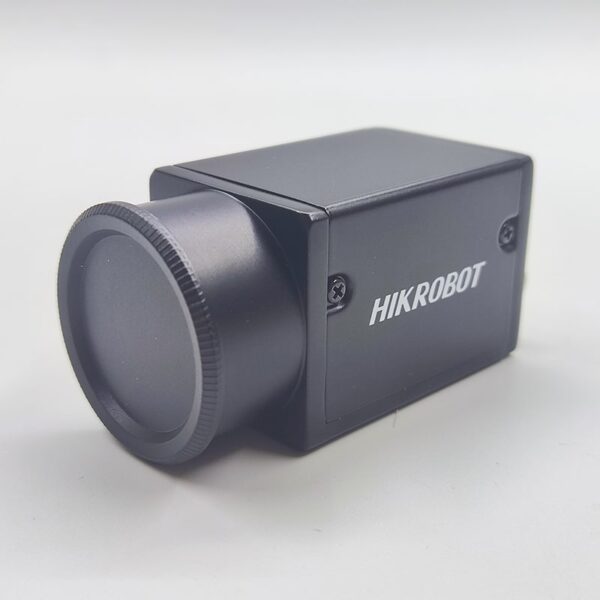

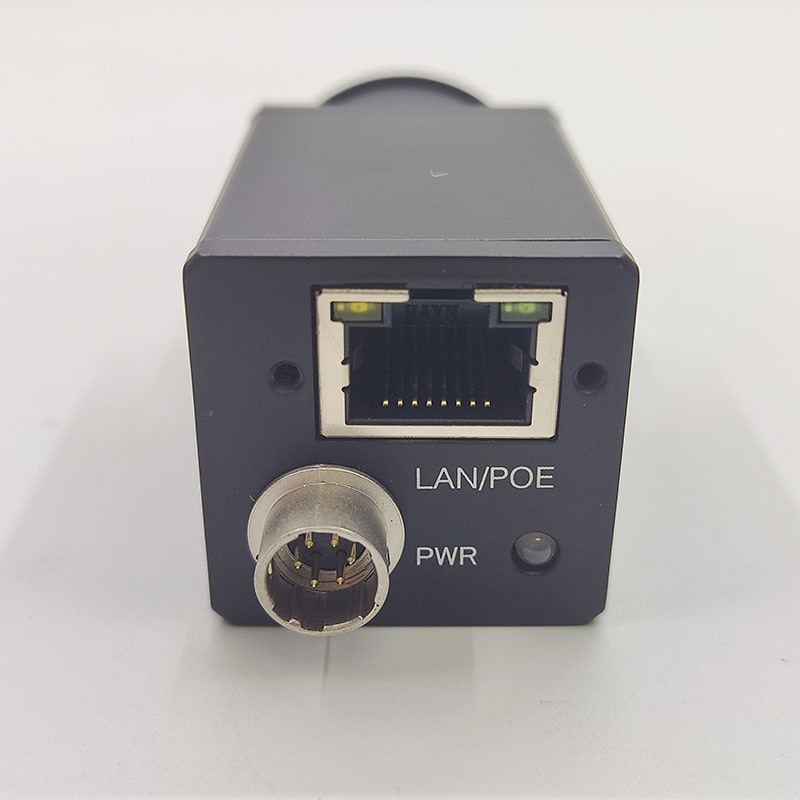

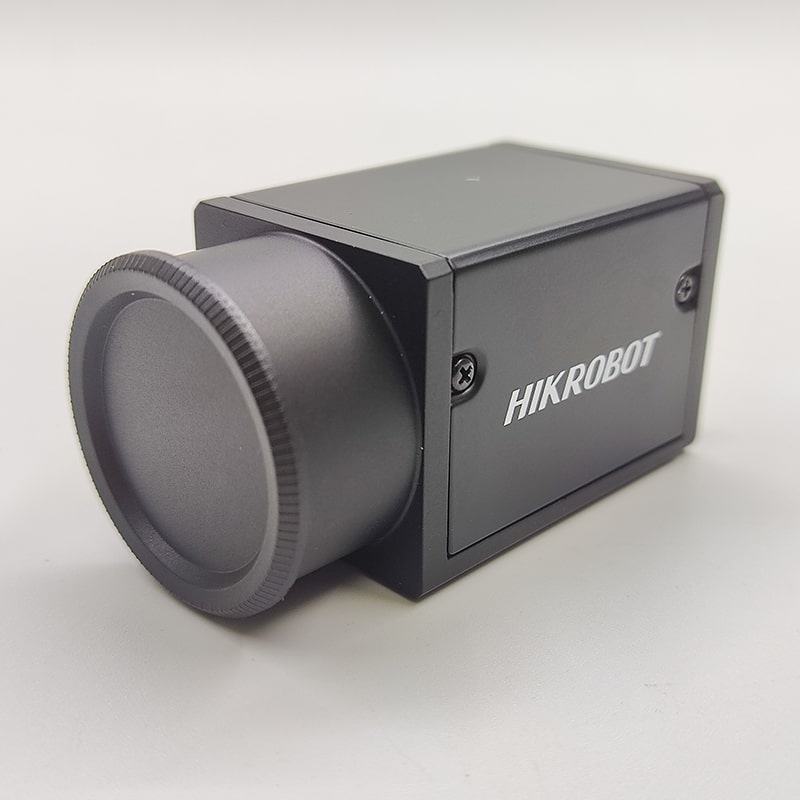

HIKROBOT MV-CE100-30GM/GC Rolling Shutter C-Mount 10MP CMOS Industrial Black White/color Camera

کیفیت اورجینال

پرداخت ایمن

HIKROBOT MV-CE100-30GM/GC Rolling Shutter C-Mount 10MP CMOS Industrial Black White/color Camera

Product details

Model Number	Name	10 million pixel network port area scan camera, MT9J003, black & white, color
	Model	MV-CE100-30GM, MV-CE100-30GC
Performance	Gain	0 dB ~ 15.3 dB
	Mirroring	supports horizontal mirroring
	Dynamic range	65 dB
	Binning	1 × 1, 2 × 2 supported
	Resolution	3840×2748
	Black & white/color	black & white, color
	Pixel size	1.67 µm × 1.67 µm
	Exposure time	50 μs ~ 2 sec
	Sensor Type	CMOS, Rolling Shutter
	Signal-to-noise ratio	34 dB
	Downsampling	not supported
	Maximum frame rate	7 fps @3840 × 2748
	Pixel Format	black and white	Mono 8/10/10Packed/12/12Packed
		color	Mono 8/10/12 Bayer GR 8/10/10Packed/12/12Packed YUV422Packed，YUV422_YUYV_Packed RGB 8
	Target surface size	1/2.3″
	Shutter mode	support automatic exposure, manual exposure, one-key exposure mode
	Sensor model	MT9J003
Electrical Characteristics	Power supply	12 VDC, support PoE power supply
	Data interface	GigE
	Typical power consumption	2.6 W@12 VDC
	Digital I/O	6-pin P7 connector provides power and I/O: 1 opto-isolated input (Line0), 1 opto-isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2)
Structure	Temperature	working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃
	Weight	Approx. 68g
	Lens mount	C-Mount
	Humidity	20% ~ 80%RH non-condensing
	IP protection grade	IP30 (when the lens and cable are installed correctly)

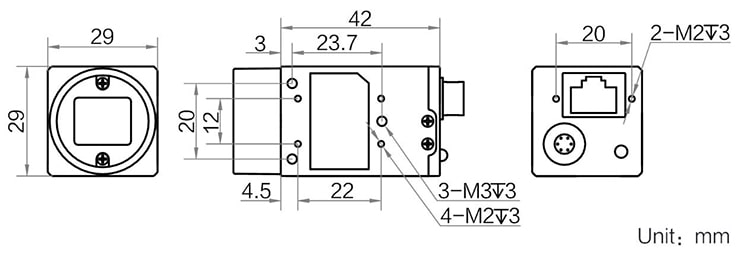

	Dimensions	29 mm × 29 mm × 42 mm
General Specifications	Certification	CE, FCC, RoHS, KC
	Operating System	Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
	Protocol/Standard	GigE Vision V1.2, GenICam
	Software	MVS or 3rd party supporting GigE Vision protocol software
