HIKROBOT MV-CA050-20GC Global Shutter CMOS C-Mount 5MP Color CMOS Industrial Camera

Product details

Model Number
Model
MV-CA050-20GC
Name
5 megapixel network port area scan camera, PYTHON5000, color
Performance
Sensor Type
CMOS, Global Shutter
Sensor model
PYTHON5000
Pixel size
4.8 µm × 4.8 µm
Target surface size
1″
Resolution
2592 × 2048
Maximum frame rate
22 fps @2592 × 2048
Dynamic range
57.5 dB
Signal-to-noise ratio
39.5 dB
Gain
0 dB ~ 10 dB
Exposure time
65 μs ~ 10 sec
Shutter mode
support automatic exposure, manual exposure, one-key exposure mode
Monochrome/Color
Color
Pixel format
Mono 8/10/12
Bayer BG 8/10/10Packed/12/12Packed
YUV422Packed, YUV422_YUYV_Packed
RGB8
Binning
Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
Downsampling
1 × 1, 2 × 2 supported
Mirroring
support horizontal mirroring, vertical mirroring
Electrical Characteristics
Data Interface
GigE
Digital I/O
6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2)
Power supply
12 VDC, support PoE power supply
Typical power consumption
3.3 W@12 VDC
Structure
Lens mount
C-Mount

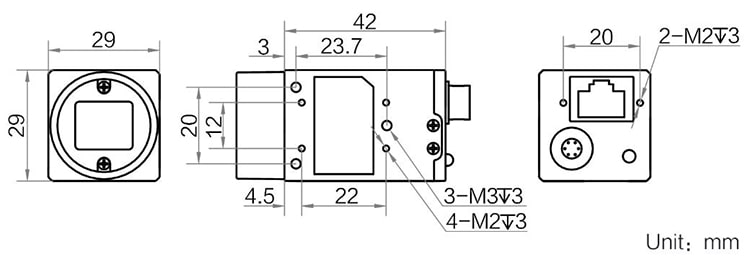

Dimensions
29 mm × 29 mm × 42 mm
Weight
About 68g
IP protection grade
IP30 (when the lens and cable are installed correctly)
Temperature
working temperature 0℃~50℃, storage temperature -30℃~70℃
Humidity
20% ~ 80%RH without condensation
General Specifications
Software
MVS or 3rd party software supporting GigE Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
GigE Vision V1.2, GenICam
Certification
CE, FCC, RoHS, KC
