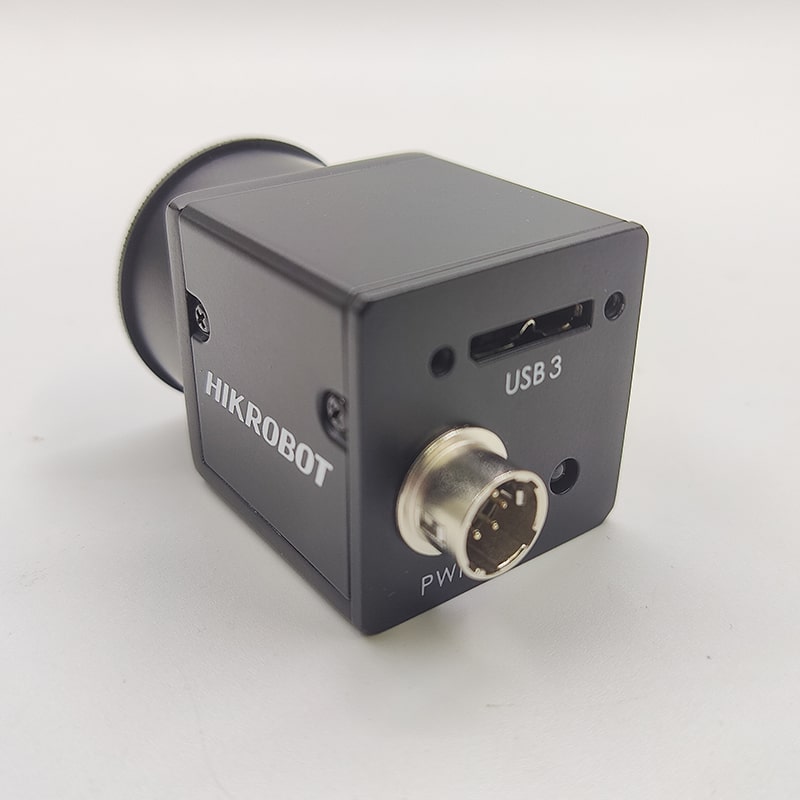

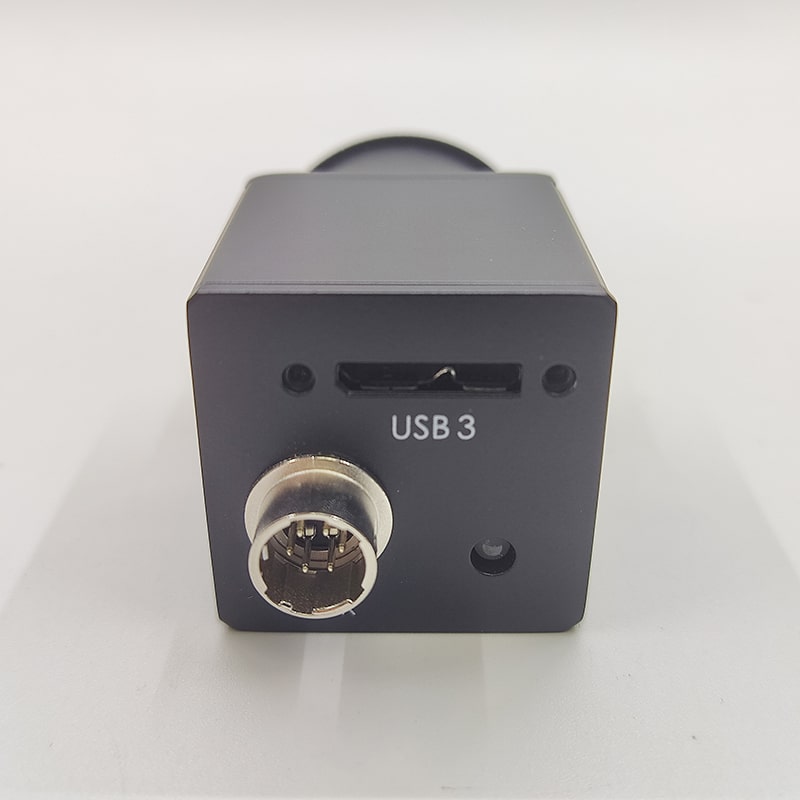

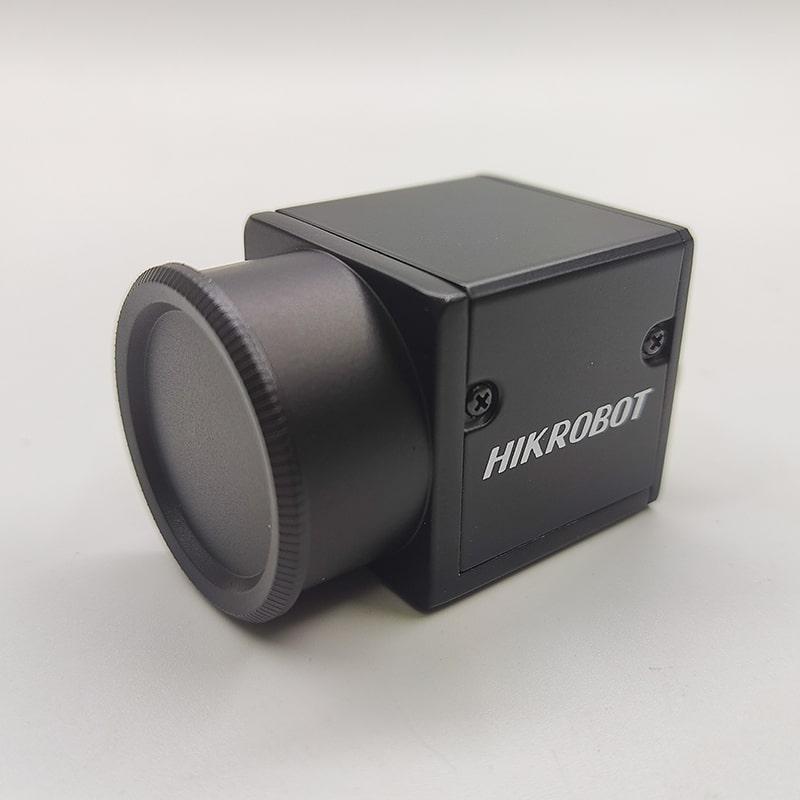

HIKROBOT MV-CA016-10UM/UC USB3.0 Global Shutter 1/2.9″ 249.1fps High Frame Rate Camera for Industrial

Product details

Model Number
Model
MV-CA016-10UM、MV-CA016-10UC
Name
1.6 megapixel USB 3.0 area scan camera, IMX273, monochrome/color
Performance
Sensor Type
CMOS, Global Shutter
Sensor model
IMX273
Pixel size
3.45 µm × 3.45 µm
Target surface size
1/2.9″
Resolution
1440×1080
Maximum frame rate
249.1 fps@1440×1080
Dynamic range
71 dB
Signal-to-noise ratio
40 dB
Gain
0 dB ~17 dB
Exposure time
Ultra-small exposure mode: 1 μs ~ 14 μs
Normal exposure mode: 15 μs ~ 10 sec
Shutter mode
support automatic exposure, manual exposure, one-key exposure mode
Black and white/color
two styles of black and white and color
Pixel format
black and white
Mono 8/10/10Packed/12/12Packed
color
Mono 8/10/12
Bayer RG 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed
RGB8，BGR 8
Binning
Support 1×1, 2×2
Downsampling
1×1, 2×2 supported
Mirroring
support horizontal mirroring, vertical mirroring
Electrical Characteristics
Data interface
USB3.0
Digital I/O
6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated IO (Line2)
Power supply
12 VDC, support USB power supply
Typical power consumption
2.8 W@5 VDC (USB powered)
Structure
Lens mount
C-Mount

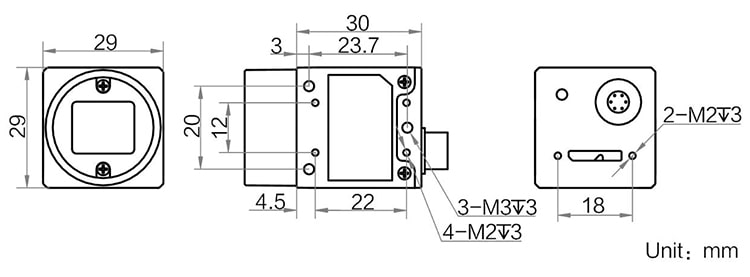

Dimensions
29mm×29mm×30mm
Weight
About 56 g
IP protection grade
IP30 (when the lens and cable are installed correctly)
Temperature
working temperature 0~50℃, storage temperature -30~70℃
Humidity
20%~80% RH without condensation
General Specifications
Software
MVS or third-party software compatible with USB3 Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
USB3 Vision, GenlCam
Certification
CE, FCC, RoHS, KC
