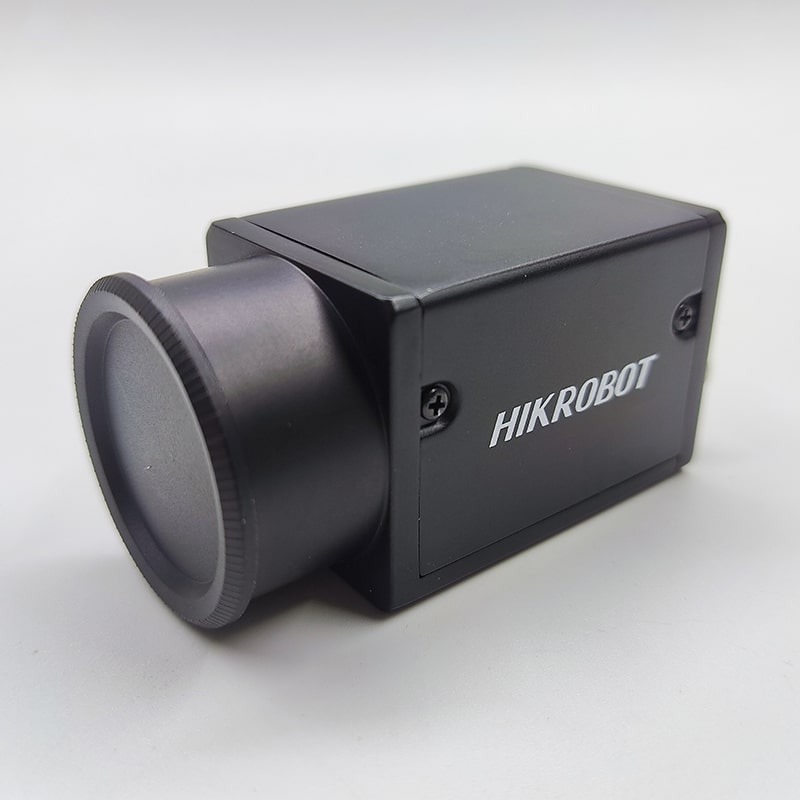

HIKROBOT MV-CA023-10GM/GC Global Shutter CMOS 2.3MP Machine Vision Detection Camera for Industrial
بازگشت به محصولات
Haf00f4251e054e94ab5729d01f89d42aJ

HIKROBOT MV-CE120-10GM/GC Rolling Shutter IMX226 12MP Monochrome/Color CMOS Camera for Industrial

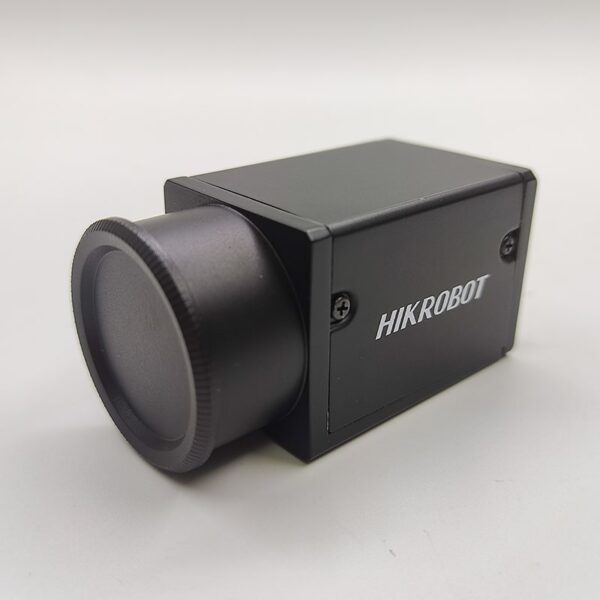

HIKROBOT MV-CA003-20GC GigE 1/4″ 336fps 0.3MP Color Global Shutter Area Scan Industrial Camera

کیفیت اورجینال

پرداخت ایمن

مقايسه
افزودن به علاقه مندی
دسته: , ,
توضیحات

HIKROBOT MV-CA003-20GC GigE 1/4″ 336fps 0.3MP Color Global Shutter Area Scan Industrial Camera

Product details

Model Number
Model
MV-CA003-20GC
Name
300,000-pixel network port area scan camera, PYTHON300, color
Performance
Sensor Type
CMOS, Global Shutter
Sensor model
PYTHON300
Pixel size
4.8 µm × 4.8 µm
Target surface size
1/4″
Resolution
672 × 512
Maximum frame rate
336 fps @672 × 512
Dynamic range
59 dB
Signal-to-noise ratio
39.9 dB
Gain
0 dB ~ 15 dB
Exposure time
40 μs ~ 10 sec
Shutter mode
support automatic exposure, manual exposure, one-key exposure mode
Monochrome/Color
Color
Pixel format
Mono 8/10/12
Bayer RG 8/10/10p/12/12p
YUV422Packed, YUV422_YUYV_Packed
RGB 8
Binning
Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
Downsampling
1 × 1, 2 × 2 supported
Mirroring
support horizontal mirroring, vertical mirroring
Electrical Characteristics
Data Interface
GigE
Digital I/O

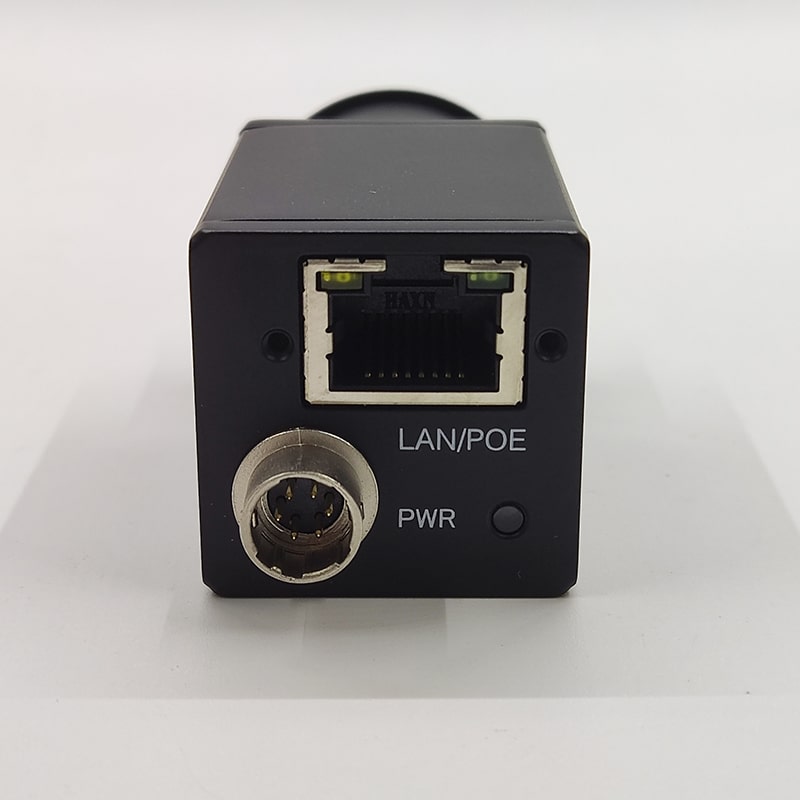

6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2)
Power supply
12 VDC, support PoE power supply
Typical power consumption
2.6 W@12 VDC
Structure
Lens mount
C-Mount

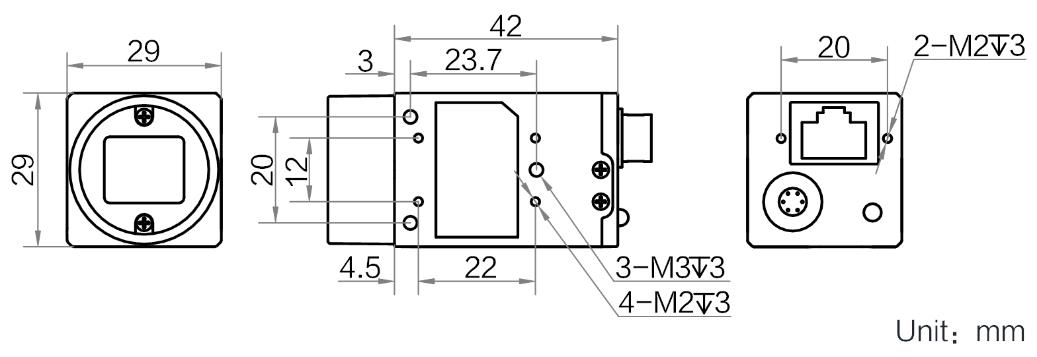

Dimensions
29mm×29mm×42mm
Weight
About 68g
IP protection grade
IP30 (when the lens and cable are installed correctly)
Temperature
working temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
Humidity
20% ~ 80%RH without condensation
General Specifications
Software
MVS or 3rd party software supporting GigE Vision protocol
Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits and MacOS 64bits
Protocol/Standard
GigE Vision V1.2, GenICam
Certification
CE, FCC, RoHS, KC
